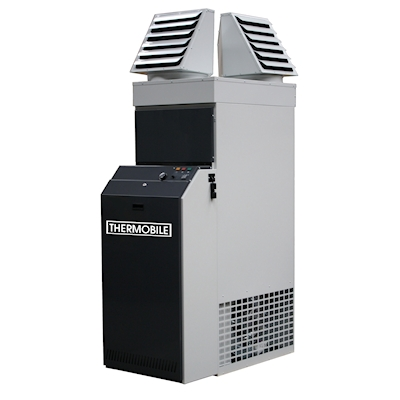

Thermobile ProHeat 60 (ErP) Oil Fired Cabinet Heater - 230v 60kW

  • Thermobile ProHeat 60 (ErP) Oil Fired Cabinet Heater - 230v
  • 60kW / 204,840 BTU Heating Capacity
  • 4500m³/hr Airflow
  • Plug & Play Cabinet Heater (230v)
  • Integrated Thermostat
  • Overheat Protection
  • Choice Of Heater Head Options
  • Optional Flue Kit Available
  • Suitable For Workshops, Warehouses & Factories
  • Runs on Diesel or Kerosene
Price Match
Rapid Delivery
2 Year Warranty

Call FREE for expert advice

0808 196 9380


100% Clean Warm Air: Circulates only clean, fume-free warm air, as the fumes produced during combustion are held within the heat exchanger and exhausted outside.

Exhaust Gas Flue: 150mm diameter flue exhaust can be connected up to lengths of flue pipe in order to vent fumes outside.

Plug & Play: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, and then plugged into a standard 230v plug socket.

Standard & Swivel Head Outlets Available: The standard head features an outlet with adjustable louvres around all four sides, for equal air distribution. Louvres can be closed in order to direct warm air where you want it. Swivel head models feature 2 x adjustable swivel heads, that can be rotated in order to direct warm air where it is needed.

Integrated Thermostat: Allows you to set a required temperature within the space. The heater will automatically switch itself on and off as required in order to maintain the required temperature, saving fuel, energy and money.

Internal 75 Litre Fuel Tank: Provides plenty of fuel to keep the heater running and can be topped up easily when needed.

230v Power Supply: Can be plugged easily into any standard 230v pocket socket, for convenience and ease of installation.

Fan Only Switch: Allows the fan to be used alone without heat, in orde to provide ventilation during summer months.


An Effective Industrial Heating Solution

Strong. Robust. Reliable. Thermobile have cut no corners.

Thermobile ProHeat 60 space heaters are 60Kw oil fired cabinet heaters, fuelled by either 28 sec fuels such as paraffin or kerosene, or 35 sec fuels such as diesel or heating oil. The choice is yours – whatever is most convenient for you! These cabinet heaters are designed for use in industrial and agricultural spaces such as workshops, garages, warehouses and more. The combustion chambers and heat exchangers in these cabinet heaters are manufactured from heat resistant steel to ensure that they can withstand the demands of industrial use. ProHeat 60 cabinet heaters are also fitted with a low-noise radial fan and a four-sided adjustable outlet opening, to provide heated air flow of 4,500m3 per hour, equal air distribution and effective heating throughout the space, whilst causing little disruption or distraction. These 60Kw space heaters are also equipped with a summer/winter circuit which allows you to use the fan function without the heat. This is perfect for use in summer for ventilation to keep your space cool. These cabinet heaters also have a control panel which is fitted with switches and warning lights to warn of any issues.

ErP Compliant Cabinet Heaters

Up to date with the very latest legislation

Thermobile ProHeat cabinet heaters are part of a new generation of Energy related Product Directive (ErP) compliant space heaters. The Energy related Product Directive 2018 implemented a series of measures for reducing greenhouse gas emissions from space heaters and, as of 1st January 2018, the Directive required all diesel and gas powered heaters to achieve a seasonal efficiency of more than 72%. As of 26th September 2018, the Directive required that NOx emissions must not exceed 180 mg/kWh (gross) for oil fired space heaters. With a Thermobile ProHeat 60 cabinet heater, you can rest assured that your heating solution complies with these latest regulations.

91% Heating Efficiency

A high quality industrial space heater.

Thermobile ProHeat oil fired cabinet heaters have an excellent heating efficiency rating of 91%. This means that the heater is able to heat your space quickly and very little of the energy that it uses is wasted –saving you money on fuel and electricity!

Built-In Fuel Tank

Practicality and convenience to go with the reliability.

Fitted with a robust 75 litre fuel tank, Thermobile ProHeat 60 cabinet heaters are all-in-one industrial heating units - saving you money and space on site!

Thermostat Fitted As Standard

Control the temperature in your building completely

Unlike some other space heaters, Thermobile ProHeat 60 oil fired cabinet heaters come with a thermostat fitted as standard. This allows you to set the temperature in your space exactly as you need – keeping your workforce and equipment at optimum working temperature.

Flue Kits & Swivel Head Attachments Available

The complete package for clean, fume-free air & effective heating

We also supply the flue kits for Thermobile ProHeat 60 cabinet heaters. The FKPH60 Stainless Steel Flue System is specifically designed for these cabinet heaters and it allows you to safely exhaust the fumes produced during combustion out of your building. The flue kits include 5 metres of flue pipe, a rain cowl and a roof seal kit. Connected to the cabinet heater via its flue connection and installed vertically inside the building, the flue kit exits through the roof to safely remove any harmful fumes, allowing only clean, fume-free warm air into your space. We can also provide elbow extensions for the flue kits if required. Swivel head attachments are also available for these units, allowing you to direct the warm air flow as required. You can add these to your order using the dropdown options above.


Thermobile ProHeat 60 Cabinet Heater Specifications:
Heat Output Kw: 60kW
Heat Output Btu/hr: 205,061
Approx Fuel Consumption L/hr: 7.2
Heated Air Flow M3/hr: 4,500
Fuel Tank Capacity: 75 litres
Power: 230v
Flue Connection: 150mm
Dimensions (W x D x H)
(Standard Head) 540 x 1120 x 1700 mm
(Swivel Head) 540 x 1120 x 1850 mm
