18kW Heat Output: Great capacity for heating a range of small to mid sized indoor spaces, including workshops, warehouses, showrooms, garages, industrial units & more.
100% Clean Warm Air: The Arcotherm Vertigo circulates only clean, fume-free warm air, as the fumes produced during combustion are exhausted outside via a flue.
Slim & Compact Profile: Fits easily into a wide range of spaces, even where space is at a premium.
Integrated Thermostat: Allows you to set a required temperature within the space from +5° - +30° C. The heater will automatically switch itself on and off as required in order to maintain the required temperature, saving fuel, energy and money.
High Quality Design: Features an integrated oil burner, electronic flame-control, helicoidal fan, oil filter, stainless steel high efficiency heat exchanger and steel combustion chamber. The combustion chamber is pre-heated and automatically post ventilated for maximum efficiency and reliability.
Plug & Play: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, and then plugged into a standard plug socket.
35 Litre Fuel Tank: Integrated diesel fuel tank can be filled easily when required.
Retractable Wheels: Integrated wheels make the Vertigo easy to put into position and install.
Summer / Winter Switch: Allows the fan to be used alone without heat, in orde to provide ventilation during summer months.
Flue Kit Available: A standard 120mm diameter flue kit is available for the Vertigo cabinet heater, allowing the flue to be exhausted out through a roof. The standard flue kit contains 2 x 1mtr flue sections, rain cap and 90 degree elbow. Extra flue sections are also available, allowing you to set up a longer exhaust if needed. (The heater also comes with the anti wind device and horizontal crossing tube).

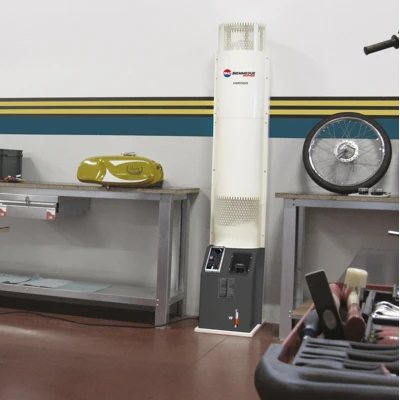

The Arcotherm Vertigo is an 18kW oil fired cabinet heater, designed to be installed in a range of commercial & industrial spaces, to provide a convenient and effective source of heat. It can be installed in workshops, garages, showrooms, warehouses, industrial units and more. It is one of the most compact diesel cabinet heaters available on the market, so it is unobtrusive and simple to set up. Its small footprint and narrow dimensions allow it to be installed conveniently even in areas where space is at a premium.
This fixed space heater features an integrated oil burner, electronic flame-control, integrated room thermostat (+5°/+30° C), helicoidal fan, oil filter, stainless steel high efficiency heat exchanger and stainless steel combustion chamber. The combustion chamber is pre-heated and automatically post ventilated for maximum efficiency and reliability. The internal fan draws air into the unit, where it is heated and then blown back out into the space. Exhaust fumes are vented out of the back of the unit, so only clean and safe warm air is used to heat the space. The Vertigo cabinet heater also features a summer-winter switch, which allows the fan to be used alone without heat for ventilation during warmer spells. Retractable wheels at the base allow the unit to be put into position wherever needed.

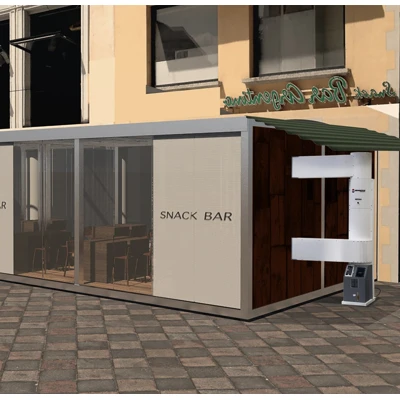

The Vertigo can be set up inside the space you want to heat, with a flue set up to vent the exhaust outside. You can also set it up outside and duct the heat inside. So if you don’t want the unit to be sat inside with you, that is no problem. The choice is yours!
We have a number of accessories available for this cabinet heater that allow you to set the unit up as required for your space. We have a choice of remote thermostats available - a 10m cabled thermostat (+5/+30°C) and an electronic display remote ambient thermostat (-10/+70°C). In addition, we have ducting available that allows you to set the unit up outside and duct the heat into the space. To find out more about our range of accessories available for, simply give us a call.
A flue kit is also available, allowing the heater to be exhausted out of a roof. The standard flue kit contains 2 x 1mtr flue sections, rain cap and 90 degree elbow. Extra flue sections are also available, allowing you to set up a longer exhaust if needed. The heater also comes with the anti wind device and horizontal crossing tube.
Please note: These units are not suitable for use with waste oil.
Rated heat power: 18.2 kW / 15.652 - 62.295 kcal/h - BTU/h
Output heat power: 16.9 kW / 14.556 - 57.934 kcal/h - BTU/h
Heat efficiency: 93%
Airflow: 1750 m3/h
Fuel consumption: 1.44 kg/h
Tank capacity: 35 litres
Electrical power: 230-1-50 V-ph-Hz
Power consumption 230V: 400 watts
Temperature rise: 60°C a 20°C
Dimensions (Width x Depth x Height): 370mm x 553mm x 1996mm
Weight: 70 kg
Flue ø: 120mm
1 x Arcotherm Vertigo Cabinet Heater
Optional Vertigo Flue Kit includes:
2 x 1mtr flue
1 x rain cap
1 x 90 degree elbow
NOTE: The heater then comes with the anti-wind device and horizontal crossing tube.
