Thermobile Bio Energy 2 Cabinet Heater - 230v 41kW

  • Thermobile Bio Energy 2 Cabinet Heater - 230v
  • Thermobile Bio Energy 2 Cabinet Heater - 230v
  • Thermobile Bio Energy 2 Cabinet Heater - 230v
  • Thermobile Bio Energy 2 Cabinet Heater - 230v
  • 41kW / 139,974 BTU Heating Capacity
  • 3000m³/hr Airflow
  • Bio Oil, Waste Oil or Diesel Fuelled
  • 100% Clean Warm Air
  • Fixed Outlet Temperature of 50-70°C
  • 230v Power Supply
  • Built-In Heat Exchanger
  • 55 Litre Fuel Tank
  • Plug & Play Design
  • Overheat Protection
  • Optional Flue Kit Available
  • Suitable For Workshops, Garages & More
  • Lead Time: 2-3 Weeks
Price Match
Rapid Delivery
2 Year Warranty

Call FREE for expert advice

0808 196 9380


41kW Heat Output: Large capacity fixed space heater, ideal for heating workshops, garages, warehouses, agricultural buildings and a range of other industrial spaces effectively.

Two Heat Settings: The Thermobile Bio Energy 2 can operate at full capacity of 41kW or reduced capacity of 24kW, so you can select an appropriate heat level for your space.

100% Clean Warm Air: This unit circulates only clean, fume-free warm air, as the fumes produced during combustion are exhausted outside.

Range Of Fuel Options: Can be fuelled by biofuels, such as rapeseed oil and certain vegetable oils, waste oil and diesel. This provides a great cost saving, as you can fuel the heater using oils produced in the course of your everyday business.

High Capacity Axial Fan: Provides a constant flow of warm air, at a max airflow of 3000m³/hr, to heat the space efficiently and effectively.

Built-In Heat Exchanger: All gasses pass through the heat exchanger before entering the flue, achieving excellent efficiency.

Separate Combustion Air Intake: The combustion fan draws in clean air from outside of the building, ensuring that no vapours, dust or oxygen can be sucked in from the workshop floor.

55L Fuel Tank: Provides plenty of fuel to keep the heater running, can be topped up easily when needed and can be removed for cleaning.

150mm Flue: The exhaust can be connected up to lengths of flue pipe in order to vent fumes outside. (Flue Kit available as an accessory).

230v Power Supply: The heater can be plugged easily into any standard 230v power socket, for convenience and ease of installation.

Plug & Play Design: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, a hole for the fresh air intake, and then plugged into a standard 240v plug socket.

Overheat Protection: Shuts the heater down automatically if it starts to overheat, preventing an accident.


Thermobile Bio Energy 2 Cabinet Heater

41kW biofuel cabinet heater for workshops, garages & industrial buildings

The Thermobile Bio Energy 2 is a 41kW biofuel cabinet heater, ideal for workshops, garages, warehouses, agricultural buildings and a range of other industrial spaces. It can be fuelled using Bio oil, bio diesels and various vegetable oils, rapeseed oil, linseed oil, as well as waste oil and standard diesel or red diesel.

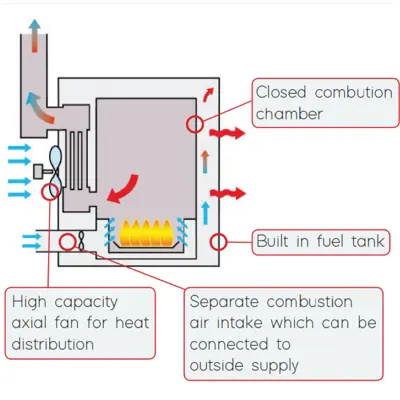

The Thermobile Bio Energy range of cabinet heaters has been developed specifically for the workshop heating market. Full combustion is achieved in a vaporising system and non-burnable residue is retained in the burner pan. The high efficiency of the Bio Energy 2 is achieved by a built-in, large surface heat exchanger, through which all gases pass before entering the flue. A high-capacity axial fan draws air from the workshop over the heat exchanger and combustion chamber and expels warm air into the building, providing a constant recycling of warm air. This fan provides a high airflow of 3000 m3/h.

This heater helps to save on fuel costs, offers low emissions of harmful gases and provides 100% clean heat, as the exhaust fumes produces during combustion are flued out of the back of the unit.

The Bio Energy 2 cabinet heater has a 55-litre fuel tank, an overheat security thermostat, flame failure thermostat and an oil overflow security system fitted as standard. This waste oil burner has a fixed outlet temperature of 50-70 ° C and it has a switch that allows it to operate either at 41kW or 24kW, so you can select the ideal heat output for your space.

Flue Kit Available

Everything you need to heat the space safely and effectively

We have an optional flue kit available for the Thermobile BioEnergy 2 cabinet heater, which allows you to exhaust the fumes produced during combustion out of the space. The flue kit consists of a T piece complete with draught stabiliser, 5 x 1m lengths of flue piping (150mm diameter), a rain cap, 2 x adjustable wall brackets and a high temperature silicone rubber roof flashing & fitting kit. If your ceiling is higher than 5m, we can supply extra sections of 1m piping. We can also supply pipes with a 45 degree bend, so you can flue fumes out at an angle, if required for your space. You can add the standard flue kit to your order using the tick box above. If you require the extra parts, give our sales team a call and we can customise a flue kit to suit your requirements.


Heat output (Btu/hr): 82000-140000
Heat output (kW): 24-41
Heated air flow (m3 /hr): 3000
Fuel consumption oil (l/hr): 3.0-4.0
Tank Capacity (litres): 55
Power consumption 230 V (AMPS): 1.1
Flue connection (mm): 150
Thermostat connection: No

Flue Kit includes:
1 x T Piece complete with Draught Stabiliser
5 x 1m lengths of Flue Piping (150mm dia)
1 x Rain Cap
2 x Adjustable Wall Brackets
1 x High Temperature Silicon Rubber Roof Flashing & Fitting Kit
