Master BV 77 Indirect Oil Fired Space Heater - 110v/240v 20kW

  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
  • Master BV 77 Indirect Oil Fired Space Heater - 110v/240v
Save
10%
  • Compact Indirect Diesel Space Heater
  • 20kW / 68,280 BTU Heating Capacity
  • 1500 m3/h Airflow
  • 230v & 110v Options Available
  • 36 Litre Fuel Tank
  • Clean, Fume-Free Warm Air
  • Warm Air Can Be Ducted
  • Flue, Thermostat & Cover Available As Accessories
  • Ideal For Marquees, Workshops & Events
  • Runs on Diesel or Kerosene
Price Match
Rapid Delivery
In-Stock
3 Year Warranty
£941.11
£847.00

Call FREE for expert advice

0808 196 9380

Features

100% Clean Hot Air: Air is drawn into the heater from the rear by an internal fan. The air is heated as it passes over a heat exchanger. The combustion by-products remain within the heat exchanger and are exhausted out of the top of the unit, and only clean, fume-free warm air is blown out of the front of the heater.

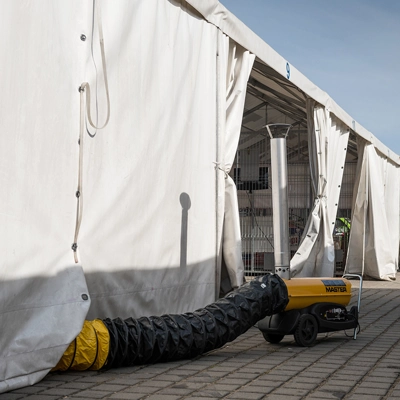

Ducting Connection: Lengths of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

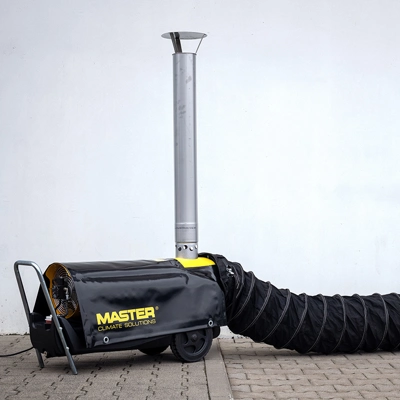

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

Tough & Robust Design: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

High Quality Features: Thermally protected motor, three oil filters (oil pump filter, suction filter and inlet filter), electronic flame control with photocell, stainless steel combustion chamber, oil tank with level indicator and diagnostic LED help to ensure reliable, effective and safe performance.

Available in 240v or Dual Voltage: The dual voltage model allows you to select the appropriate power supply for the space that you need to heat. For example, the heater could be switched to 110v for use on construction sites.

Trolley Mounted: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.

Thermostat Connectivity: An optional thermostat can be connected to these heaters, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.

Product Video

Description

Master BV77 Indirect Space Heater

20kW indirect oil fired heater providing 100% clean warm air

Master BV77 indirect fired diesel heaters are high quality, highly efficient heaters capable of expelling high volumes of clean & warm air to heat a range of different spaces. These space heaters are industry standard pieces of equipment for heating events, marquees, halls, warehouses, factories, stockrooms and all other areas where ventilation is limited. These heaters are set up outside the space that you want to heat. The fumes produced during combustion are exhausted away via a flue. Meanwhile the fume free warm air is circulated into the space by the heater’s in-built fan via a length of ducting.

Portable Industrial Heater

Perfect for commercial and industrial applications

Master BV 77 space heaters are built to last. With a strong exterior and powerful interior this machine is the perfect heating system for industrial and commercial applications. The stainless steel combustion chamber, heavy-duty metal outer casing, thermally protected motor and three separate filters for oil, suction and inlets are just a few features included in this indirect oil fired heater. The whole unit is mounted on a robust trolley frame, with a large handlebar. This makes these heaters highly manoeuvrable.

Thermostat & Ducting Available

Customise your Master BV77 heater

Operators can gain even more control over the BV77 indirect diesel heater using an optional analogue thermostat. You can add this to your order using the tick box above. These heaters can also be used in conjunction with a whole range of versatile accessories. The accessories include 3m or 7.6m ducting to direct heat exactly where required and to match your own individual heating needs. There are also ducting adaptors, soft grid diffusers, flues, & rain cowls available. Master BV 77 indirect fired diesel heaters are available with complete package deals which include all of these accessories plus free delivery - which represents fantastic value for money. You can even upgrade the packages to include a digital thermostat and a practical rain cover. Take a look at our full range of marquee heater packages. Please observe all manufacturer recommended conditions and safety information when operating these heaters.

Please note: We have 240v and Dual Voltage (110v / 240v) versions of these heaters available. The 240v version is the BV77E and the Dual Voltage version is the BV77DV. You can select which option you require using the drop down menu above. These units are not suitable for use with waste oil.

Specification

Heating Power: 21kW / 71,700 Btu/h / 18,100 kcal/h
Airflow: 1550 m³/h
Fuel Tank Capacity: 36L
Fuel Consumption: 2 l/h
Fuel Autonomy: 19h
Thermostat Control: Analogue or Digital
Power Supply: 220-240/1ph/50 V/Hz
Electric Power: 0.3 kW
Rated Current: 1.5 A
Protection: IP41
Flue Tube: 120 Ø mm
Ducting Dia Tube: 23 Ø cm
Product size (l x w x h): 1130 x 380 x 660 mm
Weight: 33kg
Dual Voltage: Available
