100% Clean Warm Air: Air is drawn into the heater from the rear by an internal fan. The air is heated as it passes over a heat exchanger. The combustion by-products remain within the heat exchanger and are exhausted out of the top of the unit, and only clean, fume-free warm air is blown out of the front of the heater.

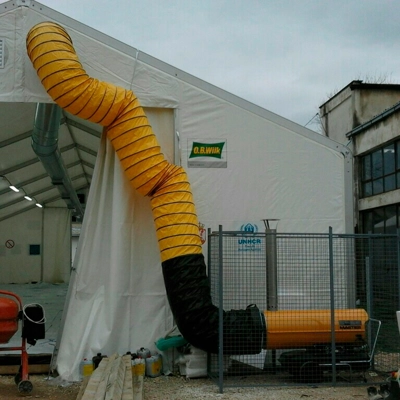

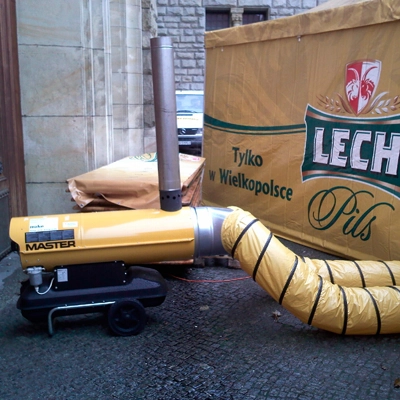

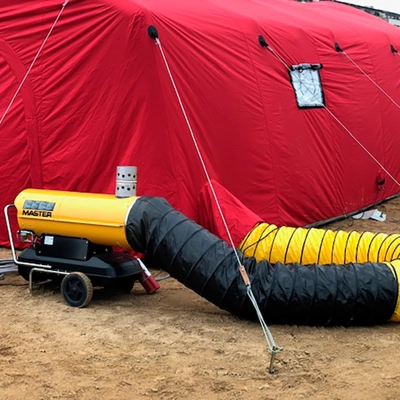

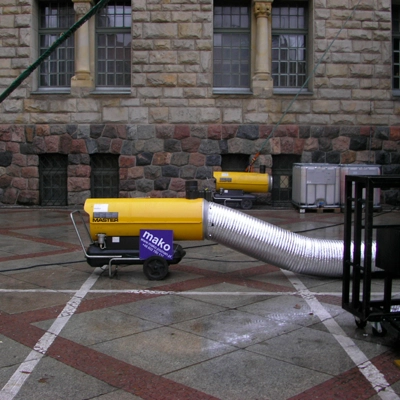

Ducting Connection: Lengths of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat. This makes it ideal for heating enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

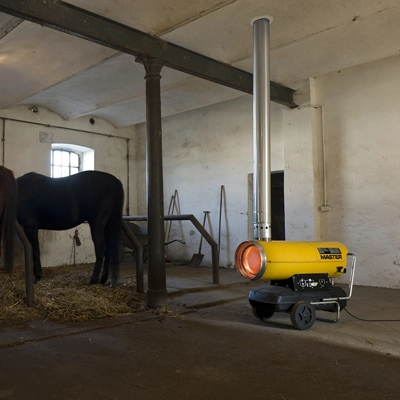

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.
240v or Dual Voltage: The dual voltage model allows you to select the appropriate power supply for the space that you need to heat. For example, the heater could be switched to 110v for use on construction sites.
Tough & Robust Design: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.
High Quality Features: Thermally protected motor, three oil filters (oil pump filter, suction filter and inlet filter), electronic flame control with photocell, stainless steel combustion chamber, oil tank with level indicator and diagnostic LED help to ensure reliable, effective and safe performance.
Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.
Thermostat Connectivity: An optional thermostat can be connected to these heaters, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.
Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.

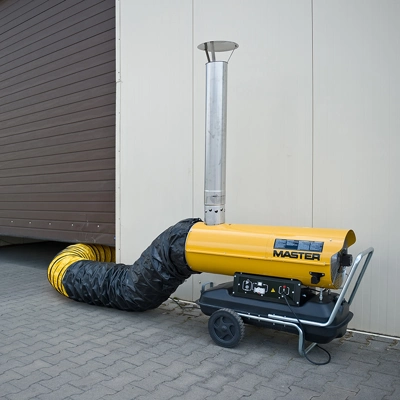

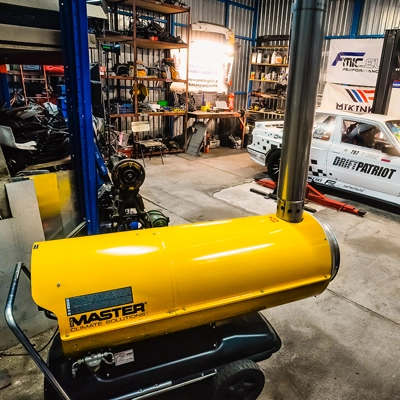

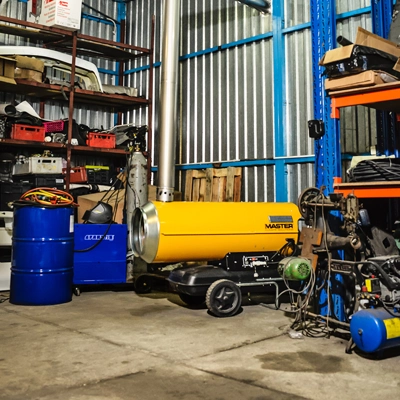

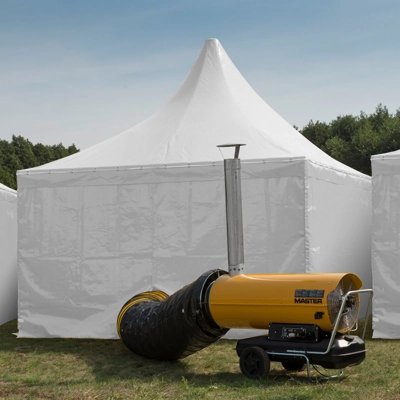

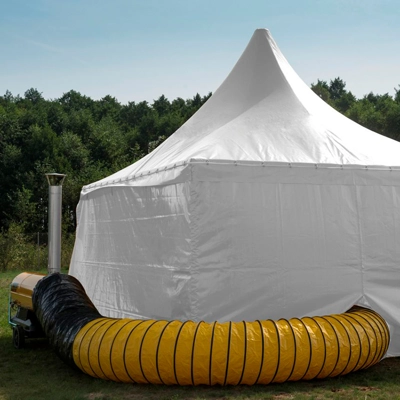

The Master BV 170 indirect oil fired heater is a durable and robust piece of equipment, ideal for heating a range of commercial and industrial spaces safely and effectively. It is designed to be set up outside the space you wish to heat, with the fumes produced during combustion expelled via a flue and only the safe, fume-free warm air circulated into the space via ducting. This 47kW indirect fired space heater is perfect for locations such as events, marquees, halls, warehouses, factories and more.
This industrial space heater features a stainless steel combustion chamber, heavy-duty metal outer casing, thermally protected motor and three separate filters for oil, suction and inlets. It boasts a built in trolley system for easy maneuverability which makes it perfect for transporting across numerous sites.
Operators can gain even more control over the Master BV170 space heater with an optional analogue thermostat. You can add an analogue thermostat to your order using the tick box above. These heaters can also be used in conjunction with 3m or 7.6m ducting, to allow users to direct the warm air exactly where required. There are also ducting adaptors, soft grid diffusers, flues, & rain cowls available. Master BV170 indirect fired diesel heaters are available with complete package deals which include all of these accessories plus free delivery - which represents fantastic value for money. Take a look at our full range of marquee heaters here. Please observe all manufacturer recommended conditions and safety information when operating these heaters.
Please note: These units are not suitable for use with waste oil.
Heating Power: 49kW / 167,200 Btu/h / 42,100 kcal/h
Airflow: 1800 m³/h
Fuel Tank Capacity: 65L
Fuel Consumption: 4.7 l/h
Fuel Autonomy: 14h
Thermostat Control: Analogue or Digital
Power Supply: 220-240/1ph/50 V/Hz or dual voltage (230v/110v)
Electric Power: 0.8 kW
Rated Current: 3.5 A
Flue: 150 Ø mm
Ducting Dia Tube: 34 Ø cm
Product size (l x w x h): 1350 x 575 x 1000
No complaints - does what it says on the tin!
The service was good when I called up to ask about the Master BV170 heater. They answered all my questions and they seemed to know what they were talking about. It was a bit annoying that the exhausts and ducts for my old heater aren't compatible with this one so I had to buy new ones, but hopefully I will get the use out of it to make it worth it.
I purchased the Master BV170E (240v version) as one of our site heaters needed to be updated. It was easy to order and the delivery arrived within a couple of days. I would recommend.
