HEYLO DCD-3.0 Dust Control Door Kit

HEYLO DCD-3.0 Dust Control Door Kit

Safely contain & extract dust on site

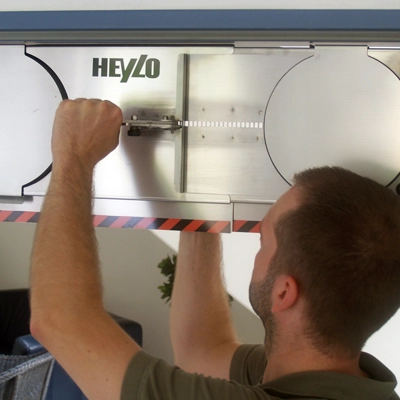

The HEYLO DCD-3.0 dust control door is designed to be erected quickly and easily around doorways and wall openings on site, to help with the containment and safe extraction of dust during construction, renovation, decorating work and more.

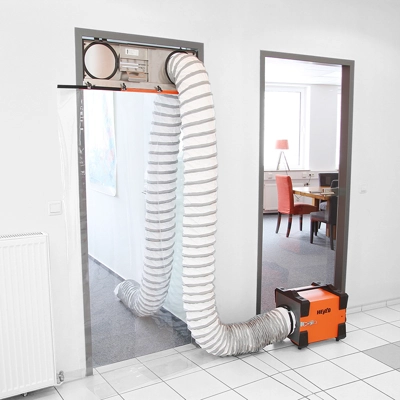

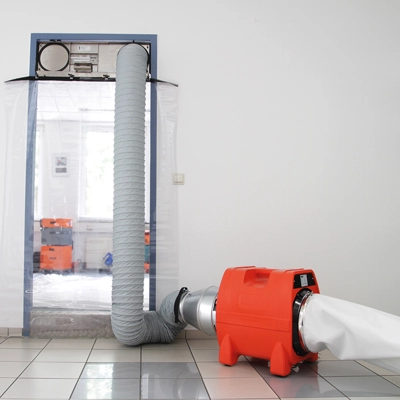

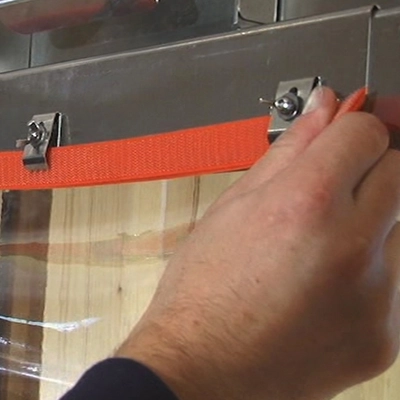

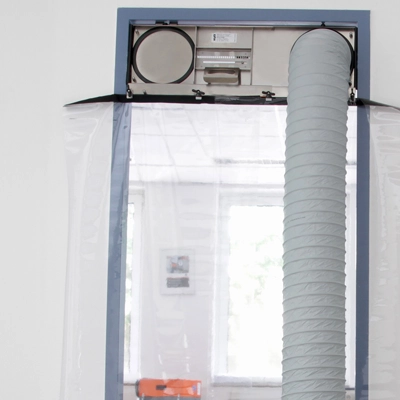

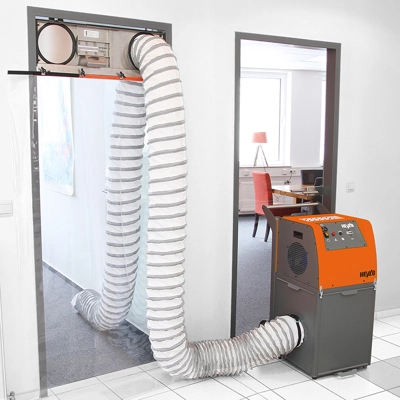

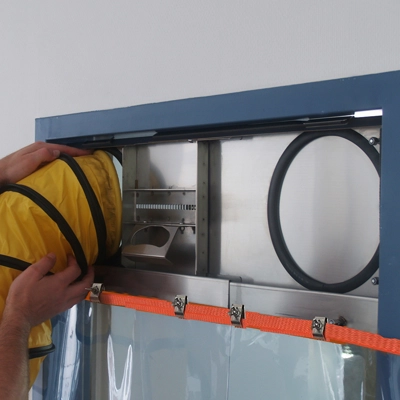

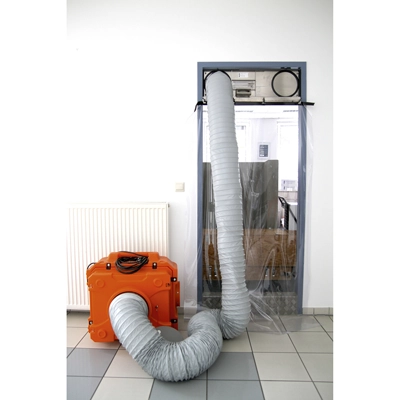

This kit includes the door base element, 2 x PVC foil, Velcro fastener and a transport bag. The dust control door features two integrated openings with closing caps that allow for up to 2 x 205mm air hoses to be inserted. This allows air scrubbers and dust extractors to be used to clean the air on site through the door and for creating negative pressure.

The HEYLO dust control door can be used for door widths from 680mm to 830mm. It can also be used on door widths of up to 1430mm, using optional adaptors to extend the width of the kit.

Optional Adapter Set For Wider Doors

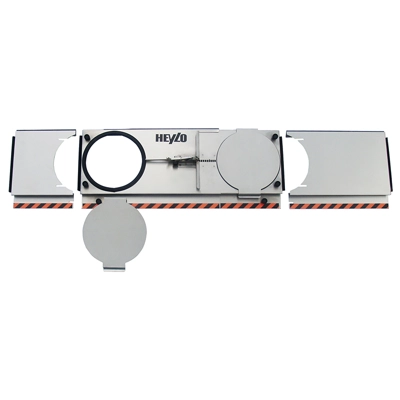

An optional adapter set is available as an accessory, which features 4 adapters (A, B, C & D) and two extra dust sheets, which allow the dust control door to be used on wider doors.

To extend the dust control door width up to 1430mm wide, the following optional adapters will be needed:

• 680mm - 830mm: No adapters required.
• 830mm - 980mm: Adapter A (Right-150mm)
• 980mm - 1130mm: Adapter A (Right-150mm) & Adapter B (Left-150mm)
• 1130mm - 1280mm: Adapter B (Left-150mm) & Adapter C (Right-300mm)
• 1280mm - 1430mm: Adapter C (Right-300mm) & Adapter D (Left-300mm)

The PVC sheets included in the adapter setwill also be needed for wider door widths:

• 2 x DCD 3.0 PVC Sheets (W 68cm x L 200cm) - for entrance widths up to 1130mm
• 2 x DCD 3.0 PVC Sheets (W 100cm x L 200cm) - for entrance widths up to 1430mm

Article No.: 1110975
Basic element Length / Height / Width (mm): 680 - 830 / 300 / 81
Optional Adapter 1 Length / Height / Width (mm): 390 / 300 / 30
Optional Adapter 2 Length / Height / Width (mm): 240 / 300 / 30
Suitable for door widths (mm): 680 - 830 (up to 1430mm with optional adapters)
Weight (kg): 8
Hose connection (mm): 2 x 205

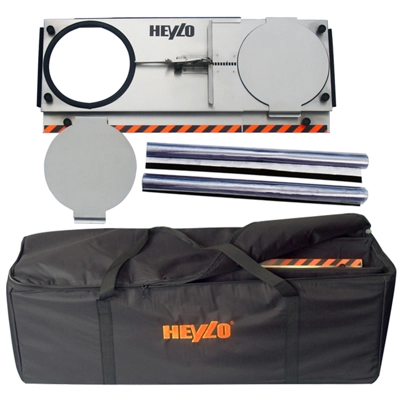

1 x Basic door element
2 x PVC sheets (2.0 m x 0.68 m)
1 x Transport bag

Optional Accessory:
DCD-3.0 Adapter Set For Wider Doors
(Includes adapter-set (1x each adapter A, B, C & D) + 2 x PVC sheets (200/100 cm)
