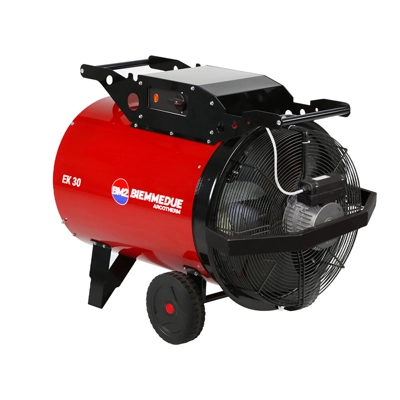

Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase 30kW

  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK30C Industrial Electric Fan Heater - 3 Phase
  • 30kW / 102,420 BTU Heat Capacity
  • 5,100 m³/h Airflow
  • 400v 64A 3 Phase Power
  • Tough Metal Casing
  • High Performance AISI 321 Heating Elements
  • Built-In Room Thermostat
  • Two Stage Heating
  • Safety Thermostat with Manual Reset
  • Compact, Portable & Stackable Design
  • Can Be Used with 6m Ducting
Price Match
Rapid Delivery
In-Stock
3 Year Warranty
£875.00

Call FREE for expert advice

0808 196 9380

Features

30kW Heating Power: Fantastic heat capacity from a compact unit. Ideal for heating large industrial spaces such as warehouses, factories, construction sites, temporary structures & more.

Two Stage Heat Output: The Arcotherm EK30C electric heater can operate at maximum capacity of 30kW or reduced capacity of 20kW.

Extra Strength AISI 321 Heating Elements: Built for high performance. Produces fast and effective warm air for workers and materials on site.

In-Built Thermostat: Allows you to set a required temperature and the heater will switch itself on and off automatically to maintain this temperature, adding convenience and saving money on running costs.

Safety Thermostat: Automatically shuts down the heater if it overheats, improving safety.

Compact & Portable Design: This is a convenient portable space heater with integrated wheels. It can be moved around easily and used wherever it is required.

Stackable: Allows for simple storage and transport.

Ductable: This heater can be used with a ducting adapter to fix up to 6m of ducting to the warm air outlet. This allows you to vent warm air into the space you wish to heat. You can add a ducting adaptor and 6m ducting to your order as accessories.

Description

Arcotherm EK30C Industrial Electric Fan Heater

30kW portable industrial electric heater for warehouses, factories, sites & more

The Arcotherm EK30C is a portable and robust industrial electric fan heater. It has a maximum heating capacity of 30kW and it can operate at reduced capacity of 20kW. With an airflow rating of up to 5100 m³/h, this industrial space heater is capable of heating a range of large areas effectively, including workshops, warehouses, factories, construction sites, temporary structures & more.

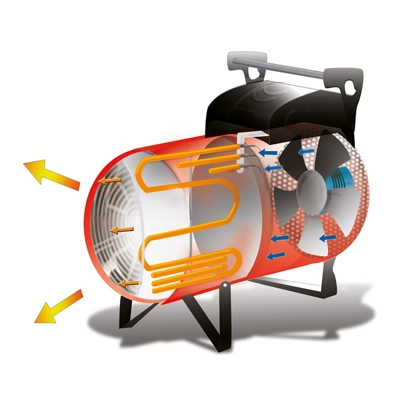

The EK30C space heater features a high strength heating element and efficient fan, to draw air in through the rear of the unit, heat it quickly and blow the warm air out of the front of the heater.

It has a tough metal casing with a stainless steel front grid. It is built to the highest standards to perform even in challenging environments. The built-in room thermostat allows you to set a required temperature and the heater will switch itself on and off automatically to maintain the set temperature level – adding convenience and saving on running costs.

This industrial electric space heater is safe and reliable, with a safety thermostat which shuts the heater down if it overheats.

Due to its compact and portable design, with integrated wheels and stackable frame, the Arcotherm EK30C electric heater is easy to transport, move around a site and quickly stow away.

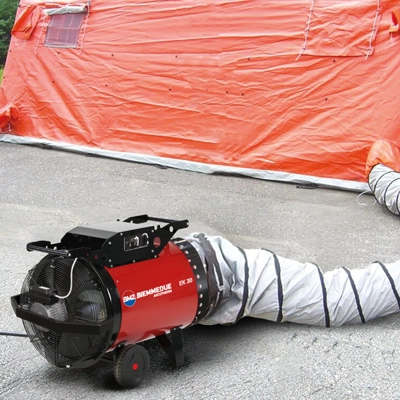

This heater can be used with a ducting adaptor, to fix up to 6m of ducting (ø 500 mm) on to the warm air outlet. This allows you to vent warm air into spaces that you wish to heat.

Specification

Product Code: 06EK106
Max Rated Heating Power: 30kW
Min Rated Heating Power: 20kW
Airflow: 5100 m³/h
Temperature Rise (a 20°C): 56 – 38 °C
Current Max: 43 - 28 A
Electrical Power: 400v - 3 Ph - 50 Hz
Dimensions (L x W x H): 899 x 558 x 706 mm
Weight: 41kg

Incredibly powerful heater

In hindsight I probably bought the wrong model as I've yet to crank it up to the maximum heat. This has replaced our old diesel fired indirect heater which had to stay outside and be 'vented in' and I didn't expect this to be able to create the same level of heat as that setup - but it does!

matt cattran

Really powerful! Much more than a standard electric fan heater

These Arcotherm EK30C are electric fan heaters. When you think of an electric fan heater you might think of a 1.5kw plastic cheapo thing from Amazon, but trust me these are much more than that - you wouldnt want one of these in your living room! We have using these to heat in our WAREHOUSE! They are really powerful and really effective. Not cheap, but then they are industrial heaters and you get all the support from Arcotherm for repairs, warranty and servicing etc. If you need a serious industrial electric fan heater - this is the one.

jefrey lalljee

Really good industrial electric heater

These ek30c electric heaters are really good industrial fan heaters. Would recommend!

dennis stein
