Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase 22kW

  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • Arcotherm EK22C Industrial Electric Fan Heater - 3 Phase
  • 22kW / 75,108 BTU Heat Capacity
  • 3,050 m³/h Airflow
  • 400v 32A 3 Phase Power
  • Tough Metal Casing
  • High Performance AISI 321 Heating Elements
  • Built-In Room Thermostat
  • Two Stage Heating
  • Safety Thermostat with Manual Reset
  • Compact, Portable & Stackable Design
  • Can Be Used with 6m Ducting
Price Match
Rapid Delivery
In-Stock
3 Year Warranty
£550.00

Call FREE for expert advice

0808 196 9380

Features

22kW Heating Power: Excellent heat capacity from a compact unit. Ideal for heating large industrial spaces such as workshops, warehouses, factories, construction sites & more.

Two Stage Heat Output: The Arcotherm EK22C electric heater can operate at maximum capacity of 22kW or reduced capacity of 15kW.

Extra Strength AISI 321 Heating Elements: Built for high performance. Produces fast and effective warm air for workers and materials on site.

In-Built Thermostat: Allows you to set a required temperature and the heater will switch itself on and off automatically to maintain this temperature, adding convenience and saving money on running costs.

Safety Thermostat: Automatically shuts down the heater if it overheats, improving safety.

Compact & Portable Design: This is a convenient portable space heater that can be moved around easily and used wherever it is required.

Stackable: Allows for simple storage and transport.

Ductable: This heater can be used with a ducting adapter to fix up to 6m of ducting to the warm air outlet. This allows you to vent warm air into the space you wish to heat. You can add a ducting adaptor and 6m ducting to your order as accessories.

Description

Arcotherm EK22C Industrial Electric Fan Heater

22kW portable industrial electric space heater for warehouses, factories, sites & more

The Arcotherm EK22C is a compact, portable and tough industrial electric fan heater. It has a maximum heating capacity of 22kW and it can operate at reduced capacity of 15kW. With an airflow rating of up to 3050 m³/h, this industrial space heater is capable of heating a range of large areas effectively, including workshops, warehouses, factories, construction sites, temporary structures & more.

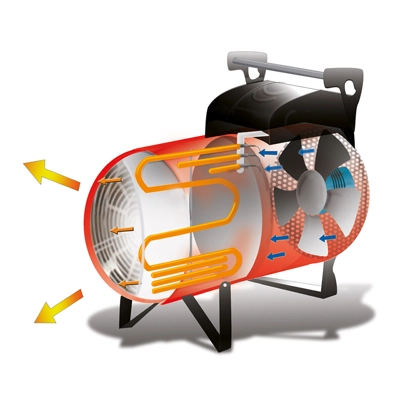

The EK22C space heater features a high strength heating element and efficient fan, to draw air in through the rear of the unit, heat it quickly and blow the warm air out of the front of the heater.

It has a tough metal casing with a stainless steel front grid. It is built to the highest standards to perform even in challenging environments. The built-in room thermostat allows you to set a required temperature and the heater will switch itself on and off automatically to maintain the set temperature level – adding convenience and saving on running costs.

This industrial electric space heater is safe and reliable, with a safety thermostat which shuts the heater down if it overheats.

Due to its compact and stackable design, the Arcotherm EK22C electric heater is easy to transport, move around a site and quickly stow away.

This heater can be used with a ducting adapter, to fix up to 6m of ducting (ø 350 mm) on to the warm air outlet. This allows you to vent warm air into spaces that you wish to heat.

Specification

Product Code: 06EK104
Max Rated Heating Power: 22kW
Min Rated Heating Power: 15kW
Airflow: 3050 m³/h
Temperature Rise (a 20°C): 56 – 38 °C
Current Max: 30 – 21 A
Electrical Power: 400v - 3 Ph - 50 Hz
Dimensions (L x W x H): 700 x 317 x 538 mm
Weight: 21kg
