Home > Broughton Heaters > Broughton FF13 Ductable Electric Fan Heater - 3 Phase

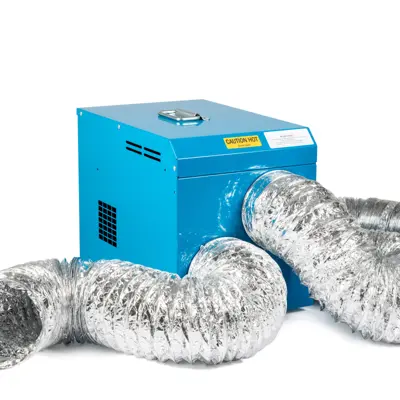

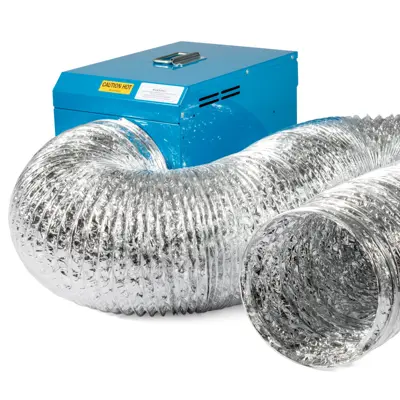

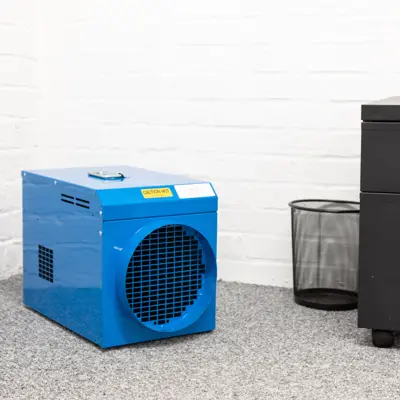

Broughton FF13 Ductable Electric Fan Heater - 3 Phase 9kW

  • Broughton FF13 Ductable Electric Fan Heater - 3 Phase
Save
£30.00
  • Industrial Electric Fan Heater
  • 9kW / 30,726 BTU Heat Output
  • 1017 m3/hr Airflow
  • 16A 3 Phase (400v) Power Supply
  • 100% Clean, Fume-Free Warm Air
  • Adjustable Thermostat
  • Tough & Robust Design
  • Ducting Spigot Options Available
  • Can Duct Warm Air 10m
  • Made In Britain
  • Estimated Lead time: July
Price Match
Rapid Delivery
In-Stock
2 Year Warranty
£350.00
£384.00 (inc VAT)
£320.00

Call FREE for expert advice

0808 196 9380

Features

9kW Heat Output: Great output from a portable electric fan heater, ideal for heating workshops, warehouses, factories, construction sites, events & more.

100% Clean Warm Air: As the heater is powered by electricity, it produces no fumes and does not consume oxygen within the space. It can be used safely in enclosed indoor environments.

Tough & Durable Construction: Designed & built in the UK with a powder coated outer casing and robust internal components, to perform in demanding environments.

Adjustable Thermostat Dial: Allows you to select a required temperature and the heater will switch itself on and off as required in order to maintain the set temperature, adding convenience, comfort and saving on running costs. A remote thermostat is also available as an optional upgrade.

Ducting Spigot Options Available: Ducting spigots provide a connection for lengths of ducting, which can be used to direct the heat where it is required on site. The Broughton FF13 can duct warm air up to 10m. You can opt to have a single 250mm ducting spigot fitted, or a double spigot with 2 x 150mm warm air outlets.

Over Temperature Protection: A safety fail-safe feature which automatically shuts the heater down if it overheats.

Fully Serviceable: Easy to maintain and repair when required in order to provide years of reliable service. This is a high quality industrial heater, built to last.

Description

PLEASE NOTE: Estimated lead time for this product is July

Broughton FF13 Industrial Electric Fan Heater

Robust 9kW space heater for industrial & commercial applications

The Broughton FF13 is an efficient, portable and powerful 9kW electric fan heater for industrial and commercial applications. It is ideal for use on construction sites, in factories, warehouses, temporary buildings, event marquees and more. As it is an electric heater, it produces only clean, fume-free warm air, so it is safe to use in enclosed spaces where direct oil and gas space heaters are not suitable.

This industrial electric heater is designed for regular site use. It is made in the UK and designed to perform in challenging environments. It features a robust powder-coated metal outer casing, efficient fan providing 1017 m3/hr airflow, an adjustable thermostat, over temperature protection and it offers very low noise operation.

The Broughton FF13 industrial electric fan heater runs on a 16A 400v (3 phase) power supply and it comes with a choice of air outlet options - either a standard warm air outlet, or with ducting spigots fitted. Ducting spigots provide a connection for 10m lengths of ducting, which can be used to direct the warm air where it is required on site. You can opt to have a single 250mm ducting spigot fitted, or a double spigot with 2 x 150mm warm air outlets. The double spigot allows two lengths of ducting to be fitted so that you can heat two separate areas simultaneously. An optional analogue remote thermostat is also available. If you opt for the Single Spigot option, you should select 1 x 10m Aluminium Ducting (250mm). If you opt for the Double Spigot option, you should select 2 x 10m Aluminium Ducting (150mm).

Please note: The single and double spigot outlets are fitted to the heater prior to despatch. The Broughton FF13 must only be used with the manufacturer's aluminium ducting. Do not use this space heater with plastic flexible ducting or other accessories that are not approved by the manufacturer.

Specification

Heat Output: 9kW / 30,708 BTU
Approx Airflow Rate: 1017 m³/hr
Fan Type: FC Impellor
Current: 11A
Supply: 3 Phase 400v 50hz
Plug Size: 16A
Sound: 55dB(A) @ 3m
Ducting Spigots: None or 1 x 250mm or 2 x 150mm
Max. Ducting Length: 10m
Dimensions: (H x W x D): 380 x 300 x 450 mm
Weight: 18kg
Thermostat Dial: Yes
Overtemp Protection: Yes
Remote Thermostat: Optional
Warranty: 2 Years
