1350L, 1500L & 2000L Sizes Available: Choose from three different capacity options to suit your requirements.
Steel Outer Bund: Tough & hard-wearing outer casing acts as a bund to catch any fuel if there is a problem with the internal tank.
Steel Inner Tank: 110% bunded (steel in steel) to ensure compliance with PPG2.
Lockable Door: Protects from unauthorised access and weather.
Lifting Eyes: Allow the tanks to be lifted on and off transport easily when empty.
Overfill Alarm: Alerts when fuel levels become too high to prevent any dangerous spillages.
Clock Face Contents Gauge: Allows you to easily monitor the fuel level inside the tank. An optional hydrostatic contents gauge is available as an upgrade.
Optional Generator Flow & Return Sockets & Hose Kit Available: This equipment is available as an optional accessory and can be used to connect the tank up to a space heater, generator or other equipment and act as an external fuel tank, to offer longer operating times without the need to refuel.
Optional Dispensing Pumps Available: We have a wide range of different dispensing pump, hose and nozzle options available, which allow these tanks to refuel equipment and machinery on site. Options include 230v diesel pumps in a choice of flow capacities, hand pumps, 12v pumps, 24v pumps and more. Enquire with our sales team to find out more.
Engineered for the construction, agricultural and commercial industries, Atlantis StoraFuel Steel Bunded Diesel Tanks have been designed to save time and money on site by ensuring there is always a ready supply of fuel.
Equipment like space heaters, tools and machinery in the workshop or on-site need constant refuelling. Atlantis tanks provide a safe and easy solution for storing extra fuel to refuel equipment without having to stop and travel to the main fuel source.
These bunded steel fuel tanks can fitted with 1" generator feed & return sockets and generator flow and return lines, to be used as an external fuel tank for diesel fired space heaters, generators and other equipment. They can also be fitted with a wide range of different fuel dispensing nozzles, and used as a convenient refulling point for equipment, tools and machinery on site. You can add generator flow and return lines to your order using the tick box above. Enquire with our sales team to find out more about the dispensing nozzle options.
Available in 1350L, 1500L and 2000L, the StoraFuel Steel Bunded Diesel Tanks are suitable for the storage of Derv (white diesel) or Gas Oil (red diesel).
The liquid is stored in the primary or inner tank while the outer tank forms the required bund.
Boasting 110% of the primary tank’s capacity, these tanks are suitable for both domestic and commercial installations.
A bunded tank is a tank within a tank. The outer tank provides protection for the inner tank, which therefore makes it harder for the inner tank to fail.
In the unlikely event of the inner tank failing, the outer tank will provide secondary containment.
Each corner has robust lifting eyes to help move the tank into position.
However, all tanks are designed to be static tank and not certified to be transported when full of fuel.
They also should be situated on a non-combustible even and level terrain/surface.
Atlantis StoraFuel Steel Bunded Diesel Tanks are made in accordance with BS799 pt5. They have a lockable cabinet door, overfill alarm, clock face contents gauge and a fully UK compliant fuel point, which is fitted with a lever ball valve and incorporates a non-return valve to prevent any unwanted spillages. There is even a small tin of 'touch-up' paint for applying when scratches might occur.
We have a choice of optional accessories available for these diesel tanks, including a manway access hatch, hydrostatic contents gauge (to replace the included clock face gauge), 1" generator feed & return sockets and a generator flow and return diesel hose set. The flow and return sockets and hose sets can be used to connect the tank up to a space heater or generator, so that the tank acts as an external fuel tank for the equipment, to give you much longer operating times without the need to refuel.
We also have a wide range of dispensing pumps available to fit these tanks, allowing them to be used to refuel equipment and machinery on site as and when required. Pump options include 230v diesel pumps in a choice of flow capacities, hand pumps, 12v pumps, 24v pumps and more. Enquire with our sales team to find out more.
1350L (300 galls); 500L (330 galls); 2000L (440 galls) capacity

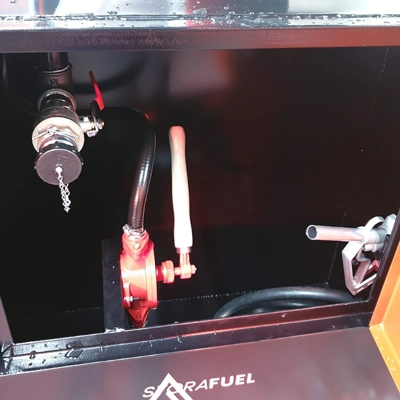

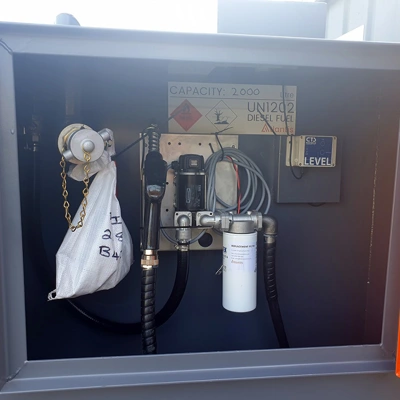

Security cabinet – front
Lockable cabinet – swing door
2” fill point inside the cabinet, c/w lever ball valve & non-return valve
2″ bund to atmosphere vent
Tank to bund vent
1.5″ bund gauge port
1.5″ port for alarm probe c/w overfill alarm (battery-powered)
1.5″ port for a gauge c/w clock face contents gauge (housed under steel box for security)
Mounted on bearers (full width)
Small tin of 'touch-up' paint for applying when scratches might occur.
Length: 1840mm (1350L); 1840mm (1500L); 2000mm (2000L)
Width: 1250mm (1350L); 1250mm (1500L); 1250mm (2000L)
Height (incl bearers): 1350mm (1350L); 1350mm (1500L)
Weight (empty): 250kg (1350L); 275kg (1500L); 340kg (2000L)
