3.6kW Cooling Capacity: Ideal for cooling larger spaces in the home and commercial spaces such as offices, restaurants, bars, hotel rooms and more.
Integrated Heat Pump: Allows the unit to offer heating during colder months, with a capacity of 3.5kW.
Slim Design: Compact profile, rounded corners, and smooth, polished white PPC finish allow the unit to fit seamlessly into any room decor and design.

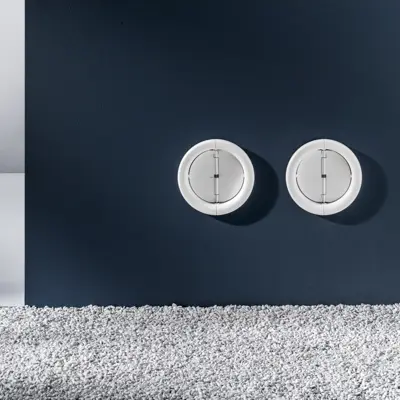

No External Condenser Required: The in-built condenser means that there is no need for a bulky external condenser to be installed outdoors. This unit simply requires two small vente in the wall.
Wifi Control: Allows control of single and multiple units via a smart device app. App displays current temperature settings and allows the user to change temperature, fan speed, and air flow direction from anywhere at the touch of a button. In applications such as hotel buildings, the reception desk can activate, control, and deactivate each unit in every room depending on the occupancy. They can warm-up or cool down the room before hotel guests arrive, and ensure the units are switched off when the room is unoccupied saving valuable energy consumption.
A Rated For Efficiency: High quality, modern and efficient air conditioner.
R32 Refrigerant: Modern & eco friendly refrigerant that offers efficient performance.
Remote Control Included: Easy to use remote control allows convenient use and provides another control option.
Digital Touch Screen: Easy to use on board controls are easyto understand and offers a clear readout of current temperature.
Simple & Fast Installation: As no external condender is required, these units can be installed by any competent tradesperson. The air conditioner simply requires two small vents to be made in the wall, allowing the exhaust air and condensate to escape outside. All that is required for the installation (template, supporting bracket, outdoor grills, insulating wall pipes) comes with the unit, ready to install. This makes installation quick, so there is hardly any downtime in the space - ideal for hotels and restaurants.
Optional Condensate Nebuliser Available: Heats the condensate output air, so that it becomes vapour and can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings.
The Powrmatic Vision 3.1 DW Maxi is a twin duct packaged terminal air conditioner and heat pump with a sleek, contemporary design. It is a modern unit that suits any style space and is ideal for use in hotels, spas, shops, bars, restaurants, modular buildings, contemporary residences, and much more. As these air conditioners are condenserless units, there is no need for an air con engineer and they are suitable for installation by any experienced tradesperson. There is no large, external unit that needs to be connected from the outside of the building. Instead, the Powrmatic Vision Maxi is a self contained Packed Terminal Air Conditioner (PTAC) that is quickly and easily installed through the wall. Installation can be completed in just 4 hours - with zero downtime. Hotel rooms, offices, retail oulets, etc, can be occupied on the same day. This is a cost effective benefit that allows you to save on installation costs, maintenance, and also minimises the impact on your business. The unit features an integrated touch screen display and control panel with clear readability, and all functions can be adjusted quickly and easily. It is also WiFi ready so that you can control the unit using an app on your smart device.
The Powrmatic Vision 3.6 DW Maxi is a quality air con unit solution combined with a heat pump for complete climate control. The dual power feature allows you to choose between the lowest and highest possible capacity for heating and cooling with excellent energy efficiency. Working to its maximum capacity, the Vision 3.6 DW Maxi has a cooling output of 3.6kW and heating output of 3.5kW. These stylish units can be installed at a high, mid, or low level on the wall of any space, from bedrooms to temporary buildings. They have a smooth, clean outer shell over a full metal body that ensures robustness and consistent performance, with all plastic parts eliminated from the construction. As they do not require an outdoor condenser, there are only two duct holes that need to be installed through the wall. There is a 200mm twin duct and an 18mm condensate pipe that can be covered with subtle external grilles that are provided with the unit. They ensure the proper inlet and outlet of the supply and discharge air. Powrmatic Vision air conditioners also feature very few moving parts, so it is less likely to encounter a problem, malfunction, or require maintenance.
You can order a Powrmatic Vision 3.6 DW Maxi air con unit on our website using our easy online checkout. Alternatively, you can call us directly to talk to a member of our sales team. If you have any questions or would like to discuss your options before making a purchase, we can provide information and advice. The Powrmatic Vision 3.6 DW Maxi comes with a remote control, and is compatible with an excellent range of accessories and spares. There is an optional Vision wired controller that can be mounted near the unit. A bottom panel is also available. The panel is an aesthetic closure plate for mid and high level installations. A condensate nebuliser can be supplied to replace the standard external condensate pipe. The nebuliser heats the condensate output air, so that it becomes vapour and can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings. You can select any optional accessories that you wish to purchase using the tick boxes above or by asking our sales representative.
Cooling Capacity kW: 2.87
Cooling Capacity - Dual Power Max / Min kW: 3.5 / 1.05
Heating Capacity kW: 2.75
Heating Capacity - Dual Power Max / Min kW: 3.5 / 0.83
Power Input In Cooling W: 1040
Power Input In Heating W: 880
Dehumidification Capacity l/h: 1.2
Power Supply Voltage V/F/Hz 230/1/50
EER W/W: 2.74
COP W/W: 3.12
Energy Efficiency Ratio When Cooling: A
Energy Efficiency Ratio When Heating: A
Dimensions (W x H x D) mm: 1010 x 549 x 165
Max Noise Level On High @1m Distance dB(A): 56
Wall Hole Diameter / Condensate Drain mm: 202 / 18
Distance Between Holes In Wall mm: 293
Refrigerant Gas: R32
Powrmatic Vision 3.6 DW Maxi Air Conditioner & Heat Pump
Wall Mount Bracket
Vent Installation Kit (Template, supporting bracket, outdoor grills, insulating wall pipes)
User & Installation Manuals
