Range & Sizing: Providing extraction rates between 25 to 43 litres per day, the DHC range provides a model for every scenario.
High-Efficiency Performance: Optimised for 24/7 continuous use, the DHC range delivers industrial moisture removal with low energy consumption.
Next Generation Intelligence: The Modbus RS485 connectivity and USB logging allow for integration into modern Building Management Systems (BMS).
Low Temperature Operation: Performing at temperatures as low as 3°C provides humidity control in unheated environments.

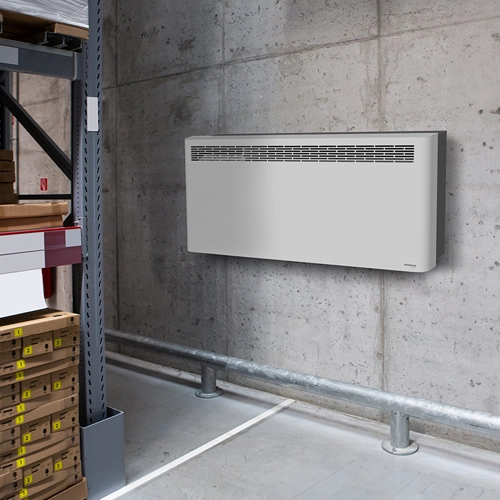

Wall Mounting Units: Free up floor space and protect internal components with the corrosion resistant chassis.
Environmental Monitoring: Monitor spaces throughout your facility with remote RH/T sensors and wireless control.
Legacy-Proven Reliability: The DHC range replaces the DH30 and DH60, offering a modern and quieter upgrade.

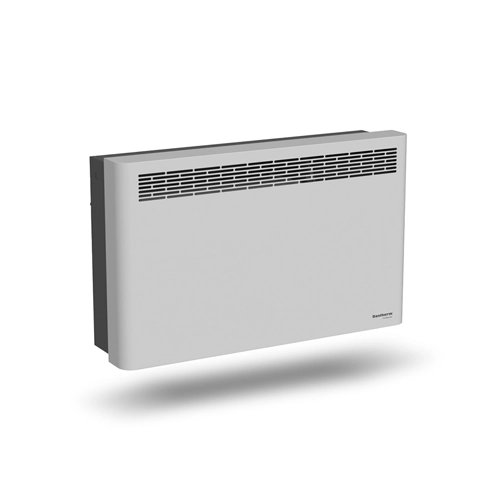

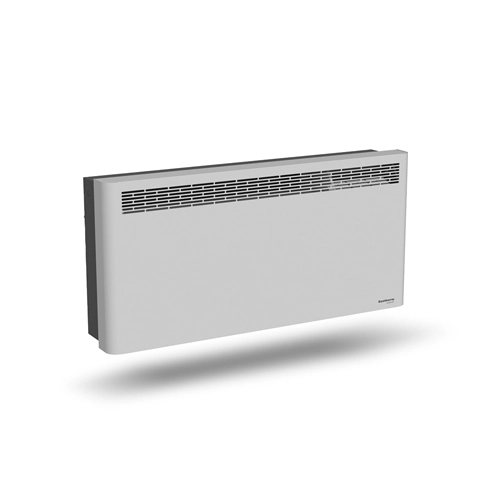

The Calorex DHC range is the next generation of industrial dehumidifiers from Dantherm. Their wall mounted design takes up zero floor space and is suitable for commercial, residential and leisure buildings.
At National Heater Shops, we know controlling humidity in a museum or server room requires more than a domestic unit. The DHC range replaces the legacy DH30 and DH60 models and is the industry standard for:
The DHC offers the following three models:
Configure fan modes and ensure the unit works only as hard as it needs to in temperatures down to 3°C. Optional remote sensing via the Dantherm DRC Wireless Remote Controller can be used to adjust RH setpoints.
Our technical team can advise further on the Dantherm Calorex catalog. When you choose us, you benefit from our Price Match Promise and rapid UK delivery.
How does the DHC range improve on the old DH30/60 models?
The DHC range features a slimline profile with quieter fans. You now have the addition of USB logging and Modbus connectivity.
Is wall mounting difficult?
Due to drainage needs, we recommend installation by a qualified HVAC professional.
Can it run 24/7?
Yes, the DHC range is built for continuous use.
See More Like This: Compressor Dehumidifiers, Dehumidifiers, Drying Equipment & Drying Accessories, New Arrivals & Wall Mounted Dehumidifiers
| Model | DHC 33 | DHC 55 | DHC 77 |
|---|---|---|---|
| Operating temperature range (°C) | 3–32 | 3–32 | 3–32 |
| Operating humidity range (% RH) | 40–100 | 40–100 | 40–100 |
| Dehumidification @ 20 °C / 60% RH (litres/24h) | 25 | 40 | 43 |
| Specific energy consumption @ 20 °C / 60% RH (kWh/l) | 0.57 | 0.61 | 0.45 |
| Air flow (m³/h) | 400 | 680 | 900 |
| Power supply (V/Hz) | 230 / 1ph / 50 | 230 / 1ph / 50 | 230 / 1ph / 50 |
| Power consumption @ 20 °C / 60% RH (kW) | 0.60 | 1.01 | 0.80 |
| Power consumption max. (kW) | 0.9 | 1.5 | 1.8 |
| Heat recovered @ 20 °C / 60% RH (kW) | 1.5 | 2.2 | 3.5 |
| Sound pressure level @ 1 m [dB(A)] | 46 | 47 | 50 |
| Refrigerant R407C weight / CO₂ eq. (kg / t) | 0.7 / 1.24 | 0.9 / 1.60 | 1.2 / 2.13 |
| Product size (W × D × H) (mm) | 1040 × 317 × 730 | 1190 × 317 × 730 | 1525 × 317 × 730 |
| Weight (kg) | 58.0 | 66.5 | 77.0 |
| Colour | RAL 7010 / 7038 | RAL 7010 / 7038 | RAL 7010 / 7038 |
| Typical applications | Archives & preservation; classic car storage; commercial buildings; construction; data centres and telecoms; emergency services; food & beverage; heritage; industrial production; leisure & recreation; military & aerospace; museums & galleries; pharmaceutical & scientific; residential buildings; warehouses & storage; waterworks. | ||
