Ecor Pro DH800 DryFan Desiccant Dehumidifier 220v 8 Litres

Ecor Pro DH800 Desiccant Dehumidifier

Compact 8-litre dehumidifier

The Ecor Pro DH800 desiccant dehumidifier is one of the smallest 8-litre capacity units available. Despite the compact and practical design, it is a powerful and efficient piece of drying equipment. Desiccant dehumidifiers work by drawing in moist air and passing it through an absorbent mesh on a rotary wheel. As the wheel turns, it absorbs moisture from the air, and then a fan expels the dry air back out into the space. This process makes desiccant dehumidifiers very efficient in lower temperature environments. You can use them during cold months when refrigerant dehumidifiers would struggle. These dehumidifiers are also very quiet, portable, and versatile units. As a result, the DH800 is ideal for residential use in laundry rooms, kitchens, and bathrooms or small work units, workshops, and storage areas.

Efficient & Convenient Drying System

Duct air in & out of the vicinity

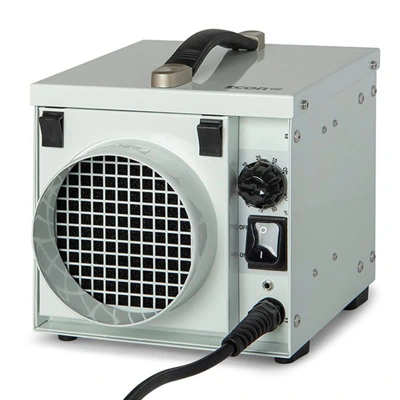

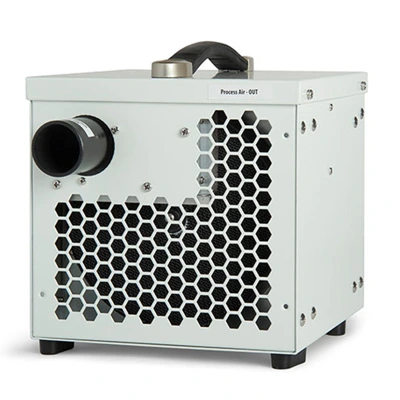

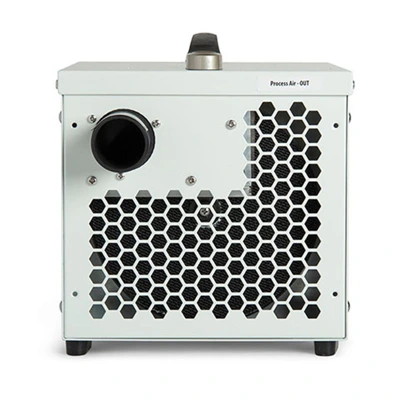

The Ecor Pro DryFan features an effective multidirectional drying system. The system consists of 1 air inlet and 2 air outlets. One air outlet expels the dry air, and the reactivation heated dry air. The second outlet is the wet air exhaust which ensures that the moisture is vented away out of the room. The exhaust can be used as part of a temporary or permanent installation with the convenient push fitting. The exhaust vents out the moisture in any direction, including upwards, so the unit can be used in basements and lower ground levels. Extracting the moisture means the dehumidifier can work in colder conditions. The inlet draws in the moist air through the dehumidifier's front. The integrated inlet flange which can be attached to optional flexible ducting. The ducting allows you to draw in air from any separate space to where you have the dehumidifier installed. The inlet air can be ducted in using 125mm ducting, and the wet air exhaust can be ducted using 45mm ducting. You can add ducting to your order using the tick boxes above.

Versatile & Robust

A rugged drying solution

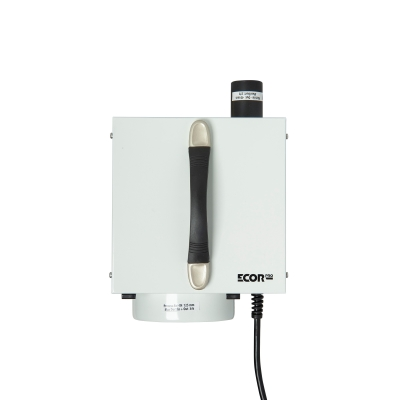

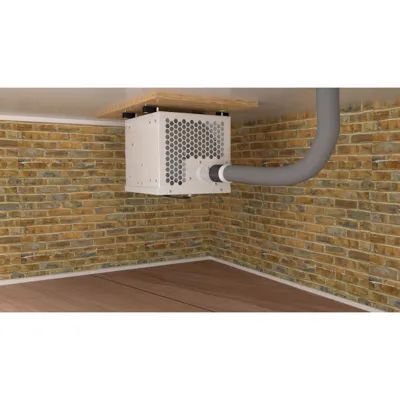

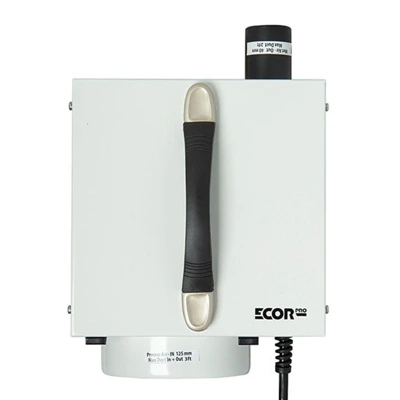

The Ecor Pro DH800 can withstand demanding environments. The main body is compact, with steel construction and epoxy paint finish. The internal and external components are heat-treated and provide longevity. Additionally, maintenance and repair are possible when needed. The cover can be removed quickly and easily to allow for access to the internal parts. These durable dehumidifiers are just as efficiently used for hire and restoration applications as they are at home. The DH800 is a portable dehumidifier that can be carried easily by one person. It is a lightweight machine, and it features a sturdy carry handle. The handle can be removed and replaced with a flat top lid if necessary. The unit's versatility allows it to be used as a free-standing dehumidifier, or you can install it at any angle. There are 4 anti-scratch plastic feet with a patented design that swivel out to anchor points. The generous 3m power lead ensures that you will not need extension leads or extra cables. The cable length is ideal if you need the dehumidifier in awkward, confined spaces, like lofts or utility cupboards.

Accessories Available

For convenience, simplicity, & practicality

Optional accessories are also available. We can supply a humidistat and flexible, industrial ducting for each outlet is also available. The humidistat connects to the dehumidifier and can set the required relative humidity level in the space. The humidistat will automatically switch the dehumidifier on and off as needed to maintain the pre-set humidity level. You can select these extras using the tick boxes above or by discussing your needs with a member of our sales team.

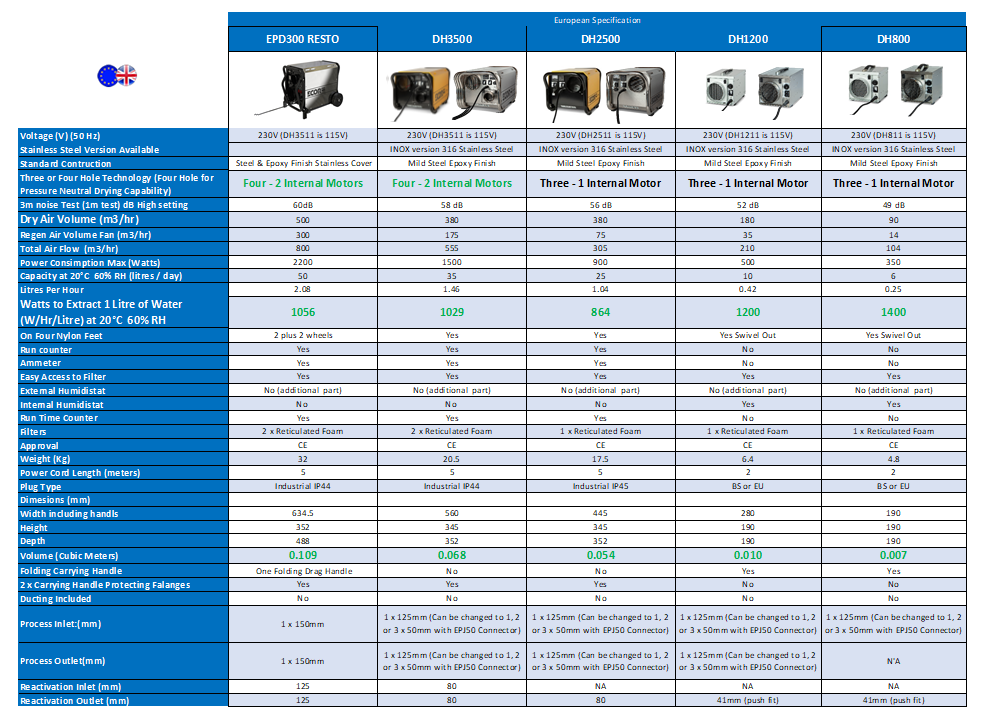

Weight: 4.8 kg

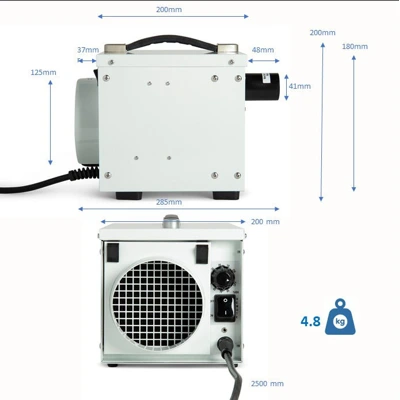

Dimensions: 190mm × 190mm × 190mm
Technology: Desiccant
Max extract: 8L
Power / Plug: 350W, 220V, 50Hz / 1.5A
(220v 50Hz supply can be run off a 12v DC-220v AC converter or 110v to 220v transformers)
Cord length: 3m
Colour / Material: White / Mild Steel Epoy Paint
Duct sizes: 40mm - 125mm
Swimming pool ready: No
Humidistat inside / Humidistat option: Yes / Yes
Carrying handle / Water container: Yes / No
Fan speeds / Sound: 1 / 49dB
Operating temp: -20℃ to 40℃
Power out restart / Works from DC-AC convertor: Yes / Yes
Airflow M3/HR: 90 process / 14 exhaust
Tank capacity: 3.5 Litre
Approval: CE

8 Litres Per Day Extraction Capacity: The Ecor Pro 800 offers great capacity for managing relative humidity levels in rooms in the home, attics, garages, workshops and commercial spaces. It performs as well as a 16 litre compressor dehumidifier at 18°C.

Zeolite Absorbent: Efficiently and effectively removes moisture from the air, even in extremely low temperatures.

-20℃ to +40℃ Operating Temperature Range: The dehumidifier is effective in the most challenging conditions. There are areas where a refrigerant dehumidifier would be of no use.

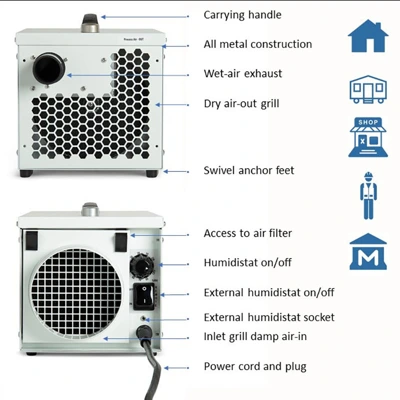

3 Hole Design: There is are air in, dry air out & wet air exhaust outlets. The absorbent removes moisture, and it purges from the system as water vapour. There is no internal water tank to empty, and the dehumidifier can be left to run 24/7.

Duct Air In & Out: The dehumidifier has vents fitted with flanges. Input air and wet exhaust air can be vented using simple ducting. This means air can be ducted in from anywhere in the building, and the wet air can be exhausted outside.

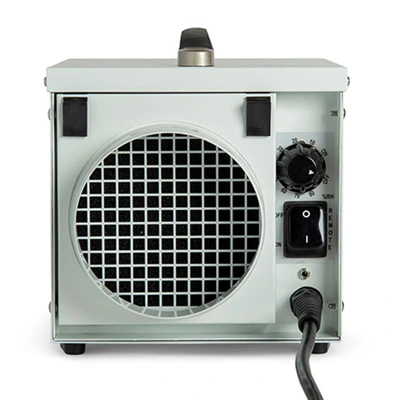

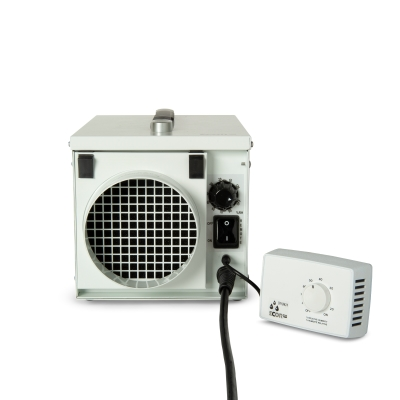

Humidistat Control: This unit has a humidistat dial, allowing you to set a required relative humidity level in the space and the unit will switch itself on and off to maintain the set level - adding convenience and saving on running costs. The DH800 can also be used with a remote humidistat, available as an optional accessory - ideal when the machine is installed out of immediate reach, such as on a ceiling or in a crawl space.

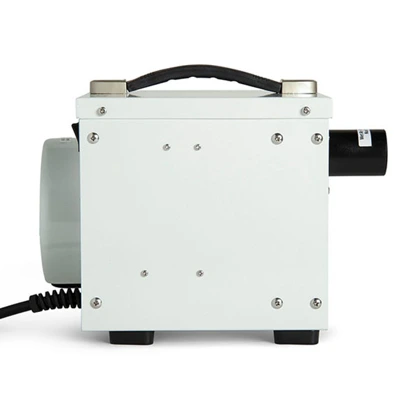

Rugged Steel Construction: The steel casing with epoxy paint finish is heat-treated for strength inside & outside and designed for longevity.

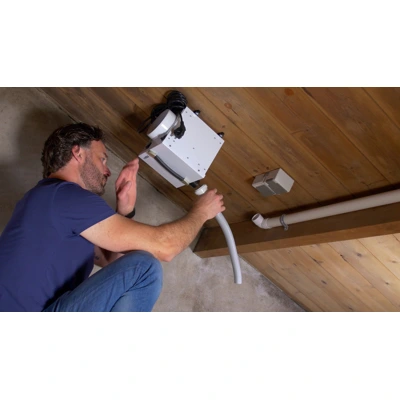

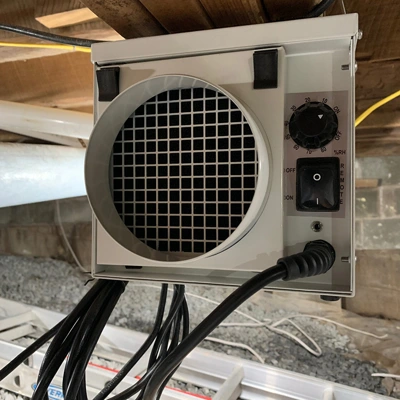

Compact Size: Can be installed in small spaces, such as lofts, cupboards, utility rooms, crawl spaces and more. It can also be used as a portable dehumidifier with ease, using the carry handle.

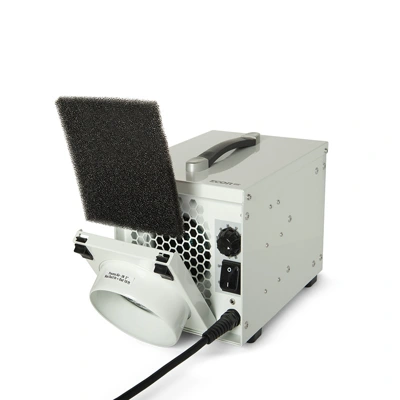

Dust Filter: Features a reticulated dust filter in a metal frame. The filter can be easily cleaned or replaced when required to prevent dust particles from entering the unit and impeding performance.

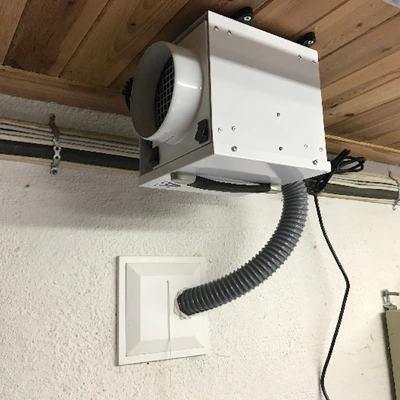

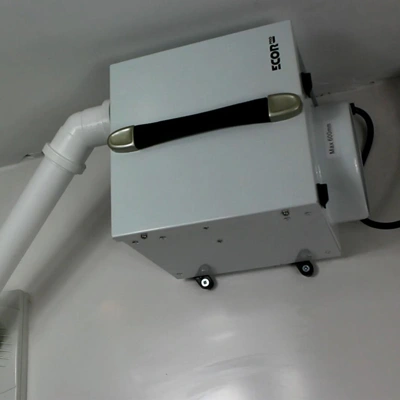

Four Feet: Anti-scratch plastic feet swivel out to provide anchor points for the dehumidifier if installed on a wall or ceiling.

Auto Reset: If there is an interruption to the power supply, the dehumidifier will continue to operate as soon as the power has been returned. Perfect in locations where there is a “dirty” power supply that can affect other electronically controlled products.

5m Power Cord: Plenty of cable to allow for easy installation in crawl spaces or lofts in the home, for example.

Long Service Life: Ecor Pro dehumidifiers are professional pieces of equipment built to last. They are designed to provide years of reliable service. They are easy to maintain and service when required. The easy to access design keep the service simple and costs low.
