ZM55 Automatic Multi-Fuel Waste Oil Cabinet Heater 62kW

ZM55 Automatic Multi Fuel ‘Waste Oil’ Heater 62kW 211,000 BTU

Powerful, Efficient & Eco-Friendly Heating Solution

The ZM55 Automatic Multi-Fuel ‘Waste Oil’ Heater delivers 62kW of powerful and efficient heating for garages, workshops, factories, spots facilities, greenhouses, and more. Without the delays of steam or water-based systems, this heater offers rapid, direct heat, ensuring a comfortable and productive workspace in the most demanding industrial environments.

Automatic Operation & Easy Maintenance

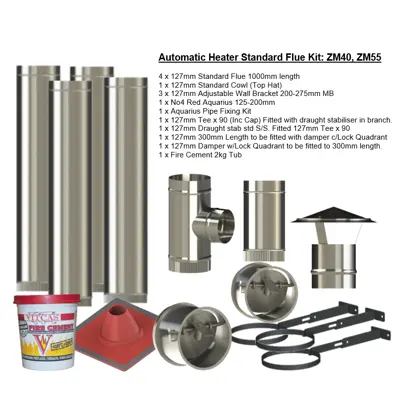

Operating the ZM55 is a breeze with its push-button automatic ignition so the heater is instantly ready for use. Featuring hotter burn temperatures, the frequency of cleaning is reduced, offering a low-maintenance solution for busy environments. The Solar & Palau centrifugal double intake fans ensure effective air circulation and consistent heating. A complete flue kit is available with the ZM55, including standard flue sections, wall brackets, draught stabilisers, and a damper with a lock quadrant, making installation straightforward and efficient.

Environmentally Friendly, Multi-Fuel Performance

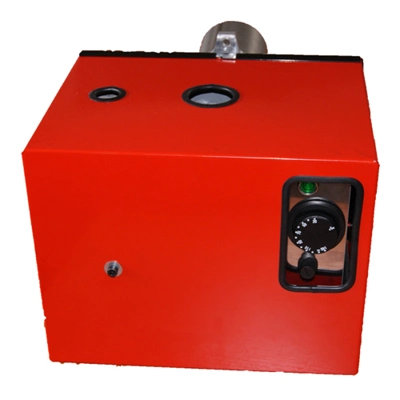

Featuring the premium CITERM Multi-Fuel Junior Burner built-in, the ZM55 offers unmatched flexibility. It can run on a wide range of fuels, including biofuels, vegetable oils, heating oil, used engine oils, kerosene, red diesel, and more. This versatility makes it an economical choice for businesses that generate waste oil, such as post-frying gastronomy or vegetable oils, converting leftovers into profit.

Durable, Safe & Reliable Construction

Constructed from AISI 310 heat-resistant stainless steel, the combustion chamber is durable and long-lasting. Safety is prioritised with automatic and manual fan controls, plus an emergency burner shutoff. Designed for reliability and built for heavy-duty performance, the ZM55 is an excellent choice for industrial heating, offering high efficiency, durability, and fuel savings.

Technical Data: ZM55

Burner: JUNIOR

Model: C Series

Heat Output (Burner Req): 62 kW

Max. Heat Output: 211,000 Btu/h

Warm Output Heat: 55 kW

Heated Air Flow: 190,000 Btu/h

Max. Heated Air Flow: up to 2,900 m3/h

Electricity consumption Energy: 0,245 kW / 220-240v (1 phs)

Fuels: Heating oils or used oils

Fuel consumption: Variable

Max. Efficiency: 91%

Noise level: 76dB @ 1m

Dimensions: 810 x 610 x 1950 mm

Flue ø : 154 mm

62kW High Heat Output: The ZM55 delivers powerful heating for large industrial spaces, providing quick and consistent warmth in demanding environments like workshops, warehouses, and garages.

Multi-Fuel Capability: Run the heater on a wide variety of fuels, including waste oils, biofuels, heating oil, diesel, and more. This flexibility lowers fuel costs and makes it an eco-friendly option by repurposing waste oils.

Automatic Ignition System: The push-button automatic ignition provides instant, hassle-free operation, minimsing downtime and ensuring immediate heat when you need it most.

Durable Stainless-Steel Construction: Built with a heat-resistant AISI 310 stainless steel combustion chamber, the ZM55 is designed for longevity, ensuring reliable performance even in harsh industrial settings.

91% High Efficiency: The ZM55 optimises fuel use, reducing operational costs and offering a greener heating solution without compromising on output.

Low Maintenance Design: Hotter burn temperatures and easily accessible inspection doors reduce cleaning frequency and make maintenance quick and straightforward, allowing for more uptime and fewer disruptions to your operations.
