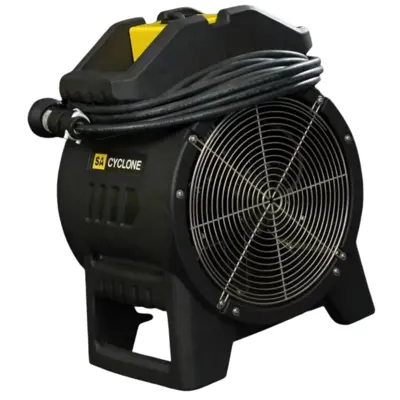

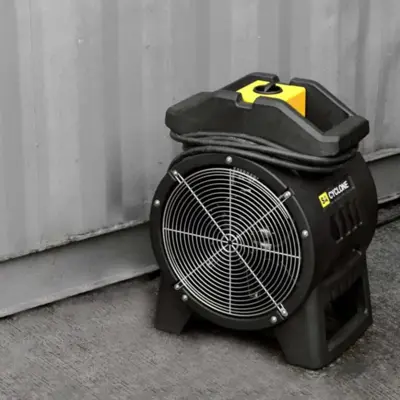

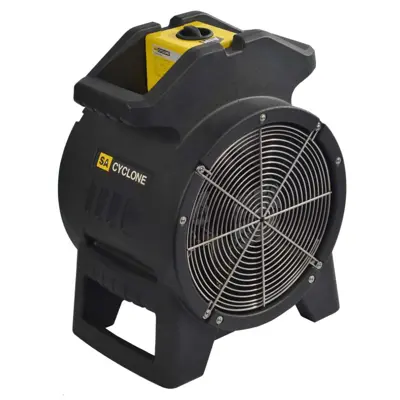

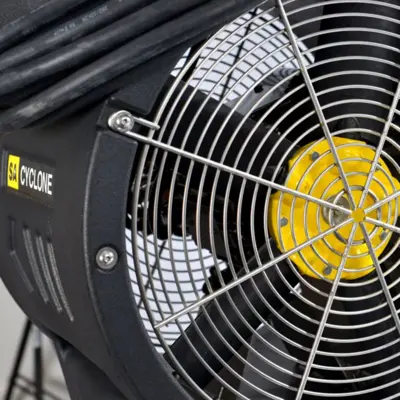

SA Equip SA CYCLONE EX Air Mover 110v/230v 5,179 m³/hr

SA Equip SA CYCLONE EX Air Mover 110v/230v

ATEX certified ventilation fan featuring a sturdy construction

The SA Equip SA CYCLONE EX Air Mover is ATEX certified and is specifically designed for use in Hazardous Area Zones 1 and 2. It is a high-powered portable ventilation fan designed for reliable and safe ventilation in hazardous environments. This ventilation fan is flameproof and constructed with safety in mind, making it suitable for use in explosive gas atmospheres of Gas Group IIB. The fan has a maximum airflow capacity of 5,179m³/hr, making it a powerful and versatile tool that can be used for both blowing air and extracting fume or vapour. With the SAF35 EX ventilation fan, you can effectively ventilate and extract fumes or vapours in harsh environments, such as offshore platforms, oil refineries, vessels and tanks, confined spaces, chemical plants, shipbuilding and repair, and utilities.

The ATEX certified SAF35 ventilation fan boasts impressive durability, thanks to its antistatic polyethylene housing that can endure high temperatures and explosive gas atmospheres. Its compact design and versatile construction also make it highly mobile and suitable for use in the most rigorous conditions. In addition, it is IP66 rated, which means it can withstand powerful water jets from all sides and has the highest level of dust protection available. The EX Air Mover is highly portable in industrial settings with its ergonomic design, easy carry handles, and lightweight construction of only 22kg. This makes it easy to transport to areas that require optimal ventilation and air circulation. The unit also features a stackable design and integrated cable storage. This is particularly beneficial in industrial sites where storage space may be limited, reducing the risk of damage.

The SA CYCLONE EX Air Mover  features a variable frequency that allows it to operate on both 50 or 60Hz, making it a great choice for extreme conditions where different power frequencies may be required. The fan also comes equipped with a thermal cut-out motor protection function, ensuring reliable performance in harsh environments. With an extremely flexible temperature range of -40°C to +55°C, the fan is suitable for use in a variety of settings, including industrial and outdoor environments of extreme temperatures. Furthermore, the EX Air Mover is a plug-and-play device that can be quickly and easily connected to a power source, allowing for hassle-free installation. This feature is particularly useful in extreme circumstances where time is of the essence.

Available with 3 different spigot sizes, including 20cm, 30cm and 40cm, the SA Equip ventilation fan provides ducting possibilities that can be combined with the SA Equip SA CYCLONE Anti-static Reinforced Ducting, allowing for the creation of a highly reliable ventilation system in hazardous areas that ensures smooth, safe, and reliable operation. It also operates at a reasonably low sound level of 81dB.

The air mover is available in 110v and 230v versions. Regarding the plug and cable, there are also various options for you that allow for extreme flexibility in terms of power requirements and connectivity needs. In terms of plugs, there are ATX, CEAG and STAHL plugs available to meet connectivity needs and ensure optimal performance. In addition, the cable comes in a standard length of 10 metres. You can choose among HOFR braided cable, SY braided cable and H07RNF cable to suit your specific needs and requirements. Each type of cable has its own unique features and benefits, ensuring that you can find the perfect cable for your application. Should you require further assistance, please feel free to contact our sales team.

See Specification for ATEX Certification details.

Certification: Ex II 2 G, Ex db eb h IIB+H2 T4 Gb
Ingress Protection: IP66
Operating Temperature: Ta -40°C to +55°C
Run Time: Continuous
Motor Protection: Thermal cut-out
Fan Casing: Anti-static polyethylene, flame retardant & chemical resistant
Cable Length: 10m (or as required)
Voltage: 110VAC
FREE AIRFLOW – 30CM VERSION (Independently tested): 1953cfm (3,319 m³/hr) @50Hz, 2185cfm (3,712 m³/hr) @60Hz
FREE AIR FLOW – 40CM VERSION (Independently tested): 2683cfm (4,559 m³/hr) @50Hz, 3048cfm (5,179 m³/hr) @60Hz
Start Up Current: 110V: 50Hz: 21A, 60Hz: 17A
Run Current: 110V: 50Hz: 6A, 60Hz: 7A
Dimensions: 458 x 349 x 590mm (l x w x h), with adaptors 458 x 498 x 590mm (l x w x h)
Weight: 22kg
Noise Level @ 1 Metre: 78dBA – 50Hz, 81dBA – 60Hz

Details of ATEX Certification
Suitable for Zone 1 & 2
Group II: Electrical equipment intended for use in explosive gas atmospheres
II 2G: ATEX Group & Category
Gb: IECEx Equipment Protection Level

Gas Zones:
Zone 1: Explosive atmosphere is likely to occur under normal conditions, occasionally
Zone 2: Explosive atmosphere is unlikely to occur under normal conditions, short periods

Protection Concept (Electrical):
Ex db: Flameproof
Ex eb: Increased Safety
Ex h: Constructional Safety/Control of Ignition/Liquid Immersion

Gas Groups:
IIA: Acetic Acid, Acetone, Ammonia, Butane, Cyclohexane, Propane, Gasoline (petrol), Methane (natural gas, non-mining), Toluene, Xylene. Methanol (methyl alcohol), Propane-2-ol (iso-propyl alcohol)
IIB+H2: Group IIA gases plus, Di-ethyl ether, Ethylene, Ethanol Methyl ethyl ketone (MEK), Propane-1-ol (n-propyl alcohol), Hydrogen

Temperature Class (The highest temperature allowed without igniting anything in the area):
T4: 135°C

Enclosure Ingress Protection (IP) Level:
6: Dust tight
6: Powered water jets

ATEX Certified: The SA Equip SA CYCLONE EX Air Mover is a high-power ventilation fan intended for use in explosive gas atmospheres (Gas Group IIB). It is flameproof and safely constructed, which makes it suitable for use in Zones 1 and 2.

Impressive Durability: Featuring an antistatic polyethylene housing, the robust ATEX certified SAF35 ventilation fan is built to last, withstanding high temperatures and explosive gas atmospheres.

Max Airflow 5,179m³/hr: Providing a high airflow capacity, the EX ventilation fan is a versatile and powerful tool that can be used as a blower or exhauster. It can effectively ventilate and extract fume or vapour in rigorous environments, including offshore platforms, oil refineries, vessels and tanks, confined spaces, chemical plants, shipbuilding and repair and utilities.

Variable Frequency: This fan operates on both 50 or 60Hz. It is perfect for extreme conditions or emergency situations as it can quickly adapt to different power frequencies.

Motor Protection: The EX air ventilation system boasts a thermal cut-out motor protection function so that it can function in extreme conditions with extra assurance.

IP66 Rated: The unit can withstand powered water jets coming from all sides and has the greatest level of dust protection.

Excellent Portability: Boasting an ergonomic design, easy carry handles and weighing only 22kg, it is extremely portable in industrial settings, which allows for easy transportation for optimal ventilation and air circulation.

Convenient Storage: The EX Air Mover features a stackable design and an integrated cable storage, which makes storage a breeze and saves valuable space in storage areas, which reduces the risk of damage and is ideal for industrial sites where there might be limited access to storage space.

Ducting Possibilities: When combined with the SA Equip SA CYCLONE Anti-static Reinforced Ducting, the SA Equip ventilation fan allows you to create the greatest ventilation system you can rely on for safe and seamless operation in hazardous areas. The air mover can be configured for 20cm, 30cm, and 40cm applications by using interchangeable duct adaptors.

Extremely Flexible Temperature Range: The EX Air Mover operates from -40°C to +55°C, which is suitable for use in a variety of environments, including outdoor and industrial settings where extreme temperatures are common.

Plug & Play: Simply connect the ventilation fan to a power source and it's ready to use, making installation quick and hassle-free. It is particularly handy in extreme circumstances where there is no time to waste.

See Specification for ATEX Certification details.
