HEYLO DE20S Portable Industrial Electric Fan Heater with Hose Connection - 3 Phase 18kW

HEYLO DE20S Industrial Electric Fan Heater

18kW industrial electric heater with ducting connection nozzle, for sites, garages, workshops & more

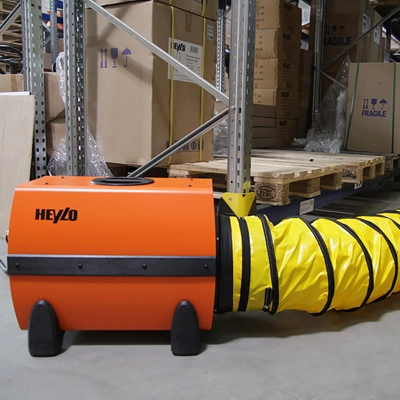

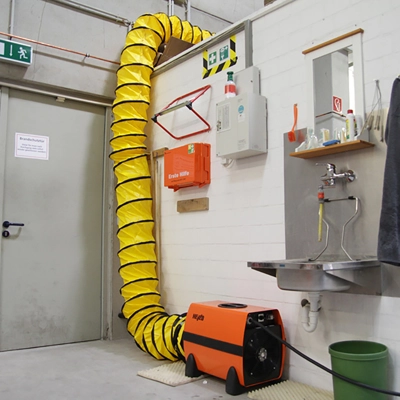

The HEYLO DE20S is an 18kW portable industrial electric fan heater, with a ducting connection nozzle on the warm air outlet which allows lengths of ducting to be connected to the heater so that warm air can be vented to wherever it is needed.

This industrial electric heater runs on a 400v 3 phase power supply and offers fast, effective and clean warm air. This model is also capable of operating at 60 Hz.

The HEYLO DE20S has three-stage controllable output - either 18kW, 12kW or 6kW. It features an operating hours counter, which allows you to monitor running time on the job, and a connection port for an optional external thermostat, for consistent and accurate temperature control.

Due to its compact design, the HEYLO DE 20S industrial electric heater is easy to transport, move around a site and quickly stow away. Multiple units can be stacked on top of each other for easy transport & storage. The integrated overheat protection automatically shuts the heater down if it overheats.

This industrial electric heater is suitable for providing fast, effective and clean heat on building sites, in workshops, garages and many more industrial areas. If and when required, the heater can be used as a ventilator due to the practical ventilation function, which operates the internal fan without the heating element.

Article No.: 1101927
Nominal heat output (kW): 6 / 12 / 18
Air flow rate (cum/h): 1410
Electric Connection (V/Hz): 400/50 400/60
Power consumption max. (A): 8.7 / 17.3 / 26
Electrical protection (A): 32
Length / Width / Height (mm): 730 / 414 / 482
Weight (kg): 20.5
Temperature increase at max. heat output Δt(K): 63
Volume (dB(A)): 67

18kW Heat Output: Ideal for heating spaces such as construction sites, large garages, workshops & other industrial areas.

Three Stage Heat Output: The HEYLO DE20S can operate at maximum capacity of 18kW, or at 12kW or 6kW.

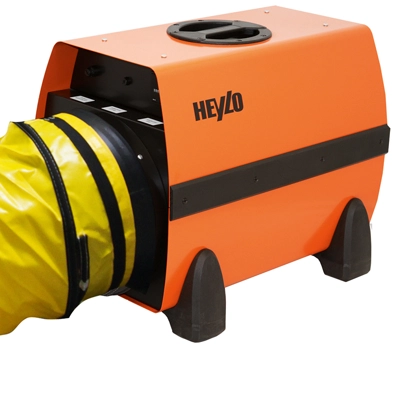

305mm Ducting Hose Connection Nozzle: A ducting connection nozzle on the warm air outlet allows 305mm diameter ducting to be fixed to the heater, so warm air can be vented wherever it is needed.

Spiral Heating Element: Produces fast, uniform and pleasant warmth for workers and materials on site.

Thermostat Connection Port: Allows an optional remote thermostat to be connected to the heater, to provide precise temperature control and cost-saving. A thermostat will switch the heater on and off automatically to maintain a set temperature.

Operating Hours Counter: Allows you to monitor running time on the job, to help control running costs.

Overheat Protection: This safe industrial electric fan heater features temperature limitation with automatic reset, which shuts the heater down automatically in the event that it overheats.

Ventilation Function: Operates the fan without the heating element, to provide a cooling airflow when required.

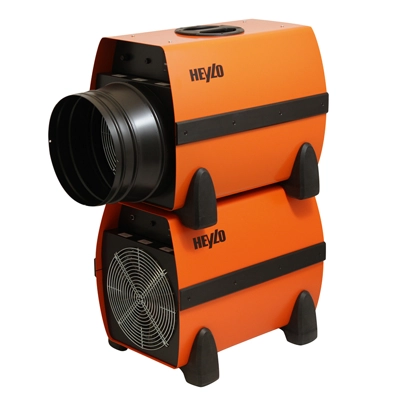

Compact & Stackable Design: This is a convenient portable space heater that can be moved around easily and used wherever it is required. Multiple units can be stacked on top of each other for easy transport & storage.
