Broughton FFHT32 Ductable Electric Fan Heater - 3 Phase 18kW

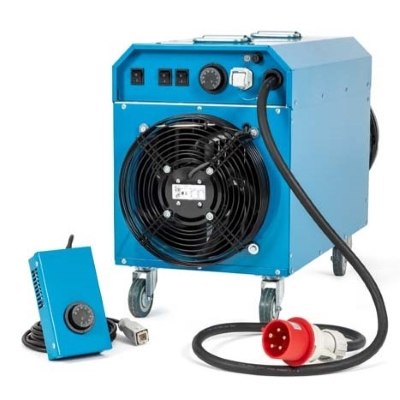

Broughton FFHT32 Industrial Electric Fan Heater

Powerful 18kW space heater for workshops, warehouses, sites & more

The Broughton FFHT32 is an 18kW industrial electric fan heater, ideal for heating a range of commercial and industrial spaces, including workshops, warehouses, factories, construction sites, events, marquees & more.

It is a powerful electric space heater, offering an approximate airflow rate of 1533m3/h, temperature rise of 75℃ and multiple heat settings (18kW / 12kW / fan only). It produces only clean, fume-free warm air so it is suitable for heating indoor, poorly ventilated spaces safely and effectively.

The FFHT32 is made in the UK and features a tough powder coated steel outer casing and durable internal components. It has a 300mm spigot on the outlet, which allows ducting to be fixed on to the heater so that warm air can be directed wherever it is needed. This unit can be used with up to 10m of flexible ducting. (Please note that the Broughton FFHT32 is a high temperature industrial electric heater that should only be used with the recommended 300mm aluminium ducting. Do not use the space heater with reducers, plastic flexible ducting, or other accessories that are not recommended by the manufacturer).

It is easy to operate the Broughton FFHT32 industrial electric heater - with simple controls to switch between the full 18kW heating capacity, a reduced capacity of 12kW and a fan only mode for ventilation during warmer months. It also features a thermostat dial and it also comes with a remote analogue thermostat included. For maximum safety during operation, this space heater is equipped an overtemperature shutdown function.

This unit can be used for alternative applications such as pest control heat treatments due to its high outlet (delta) temperatures. Please be aware that the delta temperature is the temperature of the air leaving the heater at the outlet, and not the temperature that a space can reach while using the heater. The true delta temperature is significantly dependent on various circumstantial factors. Please contact the sales team for more information on this.

The Broughton FFHT32 is not classified as a high-temp heater and as such features an overheat thermostat for safety reasons. Any applications requiring achieving temperatures of over the unit's operating capacity (30-35°C) will require the unit to be situated outside the application area and a length of high-temperature ducting being used to send heat into the space. This unit requires a 32a 415v power supply and socket and is not compatible with a 13a three-pin socket (UK domestic).

Heat Output: 18kW / 12kW / Fan Only
Approx Airflow Rate: 1533m³/hr
Fan Type: Axial
Max Delta T: 75C
Current: 28A
Supply: 32A 415v 3PH+N+E
Plug Size: 32A 5 Pin
Spigot: 300mm
Mobility: Portable
Remote Thermostat: Included
Dimensions (inc spigots and castors) HxWxD (mm) 520 x 350 x 902

Max. Sound Level: 73db

Weight: 30kg

Overtemp protection: Yes
Max Ducting: 10m

18kW Heat Output: Great heating capacity for workshops, warehouses, factories, construction sites and a range of other industrial areas.

Two Heat Settings: Operates either at full capacity (18kw), reduced capacity (12kW) or fan only mode for ventilation, so you can select the ideal setting for your space.

100% Clean Warm Air: Can be used in enclosed and confined spaces. As the heater is powered by electricity, it produces no fumes and does not consume oxygen within the space. Provides a safe alternative to gas and diesel heaters.

Integrated & Remote Thermostats: The integrated thermostat and remote thermostat that come included allow you to select a required temperature. The heater will switch itself on and off as required in order to maintain the set temperature, adding convenience, comfort and saving on running costs.

1533m³/hr Airflow: Capable of delivering large volumes of warm air, to heat spaces quickly and effectively.

Suitable For Pest Control: As the FFHT is a high temperature heater, you can use it to kill and get rid of bed bugs and other pests, eggs, and larvae.

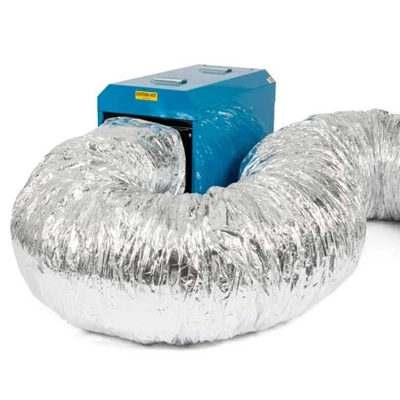

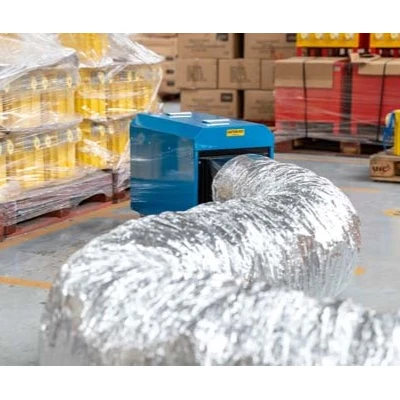

300mm Ducting Spigot: Allows ducting to be fixed to the warm air outlet, so warm air can be directed to where it is required. Maximum ducting distance 10m. (Ducting available as an accessory).

Tough & Durable Construction: Made in the UK and built to perform in demanding environments.

Portable Design: Mounted on a set of four strong locking castors for mobility.

Over Temperature Protection: A safety fail-safe feature which automatically shuts the heater down if it over heats.

Fully Serviceable Equipment: Easy to maintain and repair when required in order to provide years of reliable service. These are high quality industrial heaters, made in the UK, and built to last.
