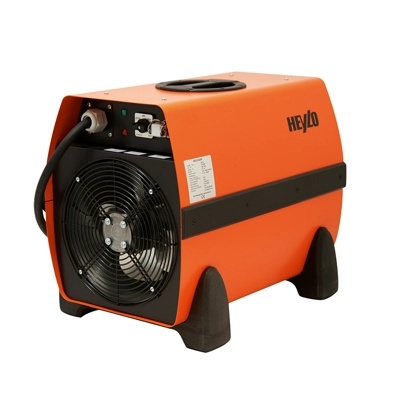

HEYLO DE20 Portable Industrial Electric Fan Heater - 3 Phase 18kW

HEYLO DE20 Industrial Electric Fan Heater

18kW industrial electric heater for sites, garages, workshops & more

The HEYLO DE20 is an 18kW portable industrial electric fan heater. It runs on a 400v 3 phase power supply and offers fast, effective and clean warm air. This model is also capable of operating at 60 Hz.

This electric heater has three-stage controllable output - either 18kW, 12kW or 6kW. It features a connection port for an optional external thermostat, for consistent and accurate temperature control.

Due to its compact design, the HEYLO DE 20 industrial electric heater is easy to transport, move around a site and quickly stow away. Multiple units can be stacked on top of each other for easy transport & storage. The integrated overheat protection automatically shuts the heater down if it overheats.

This industrial electric heater is suitable for providing fast, effective and clean heat on building sites, in workshops, garages and many more industrial areas. If and when required, the heater can be used as a ventilator due to the practical ventilation function, which operates the internal fan without the heating element.

Article No.: 1101936
Nominal heat output (kW): 6 / 9 / 18
Air flow rate (cum/h): 1050
Electric Connection (V/Hz): 400/50 400/60
Power consumption max. (A): 8.7 / 17.3 / 26
Electrical protection (A): 32
Length / Width / Height (mm): 570 / 414 / 482
Weight (kg): 18.5
Temperature increase at max. heat output Δt(K): 70
Volume (dB(A)): 59

18kW Heat Output: Ideal for heating spaces such as construction sites, large garages, workshops & other industrial areas.

Three Stage Heat Output: The HEYLO DE20 can operate at maximum capacity of 18kW, or at 12kW or 6kW.

Spiral Heating Element: Produces fast, uniform and pleasant warmth for workers and materials on site.

Thermostat Connection Port: Allows an optional remote thermostat to be connected to the heater, to provide precise temperature control and cost-saving. A thermostat will switch the heater on and off automatically to maintain a set temperature.

Overheat Protection: This safe industrial electric fan heater features temperature limitation with automatic reset, which shuts the heater down automatically in the event that it overheats.

Ventilation Function: Operates the fan without the heating element, to provide a cooling airflow when required.

Compact & Stackable Design: This is a convenient portable space heater that can be moved around easily and used wherever it is required. Multiple units can be stacked on top of each other for easy transport & storage.
