El-Bjorn TF 72EL EBC Electric Fan Heater - 3 Phase 72kW

El-Björn TF 72EL Heating Fan – Maximum Performance & Efficiency

Unmatched Heating Capacity for Large Spaces

The El-Björn TF 72EL heating fan is a pinnacle of heating technology, offering unparalleled performance and energy efficiency. With its dual power settings of 36 kW and 72 kW, this heating fan is specially designed to cater to the most demanding heating requirements in large spaces.

Robust and Practical Design

Constructed from powder-coated, corrosion-resistant, galvanized sheet steel, the TF 72EL combines durability with a lightweight design. This robust build ensures long-lasting performance even in challenging environments, while its practicality makes it suitable for a variety of settings.

Superior Heating Coverage

With its impressive capability to maintain temperatures across areas as large as 1500m², the TF 72EL is ideal for vast spaces needing consistent and efficient heating. This makes it perfect for large industrial areas, spacious event halls, and other extensive venues.

Optimized Air Distribution

The design of the TF 72EL's fan and housing is specifically engineered to maximize the throw and spread of warm air. Equipped with a sheet metal air distributor, it provides 360-degree air coverage, ensuring even and effective heating throughout the area.

User-Friendly Features

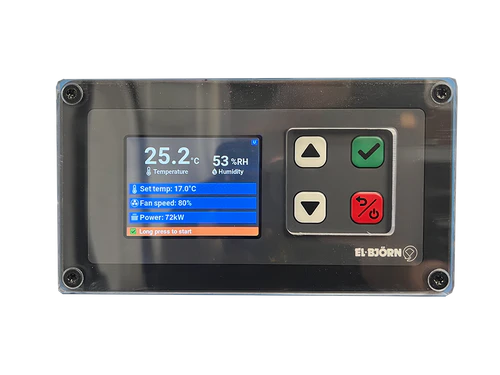

Ease of use is a key aspect of the TF 72EL. It features a control card and display that offer straightforward navigation through a menu system, allowing users to easily adjust temperature, fan speed, and more. The display's intuitive design enhances user experience, making temperature control more accessible.

Incoming 5-pol/400V 125A CEE 4125-6 1 pcs

Rated current 110 A

Voltage 3N~400V V

Total thermal power 72 kW

Output modes 36-72 kW

Air flow 7900/6454 m³/h

Temperature increase 40/47 °C

Noise level 69/63 dB(A)

Weight tot 180 kg

Weight top 72 kg

Weight bottom 96,5 kg

Weight distributor 11,5 kg

Dimensions exkl. distributor H x W x D (mm) 1400 x 740 x 1110 mm

Dimensions incl. distributor H x W x D 2250 x 740 x 1110 mm

Protection class IP44

Seasonal average efficiency (ηs) 36%

Dual Power Settings (36 kW / 72 kW): Enables versatile heating options, ideal for varying space sizes and requirements.

Large 1500m² Coverage Area: Ensures even, efficient heating in extensive spaces like warehouses or large events.

Robust Galvanized Steel Construction: Offers durability and longevity, even in demanding environments.

360-Degree Air Distribution: Guarantees uniform heating, eliminating cold spots for consistent comfort.

Modular Design for Easy Maintenance: Simplifies servicing and cleaning, enhancing the unit's reliability and lifespan.

Intuitive Control Card and Display: Facilitates easy adjustment of settings, making operation straightforward and user-friendly.
