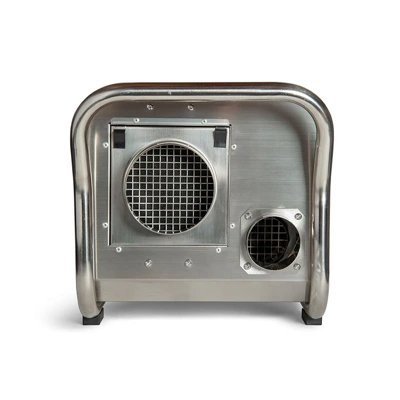

Ecor Pro DH3500 INOX DryBoat 45 Desiccant Dehumidifier 220v 45 Litres

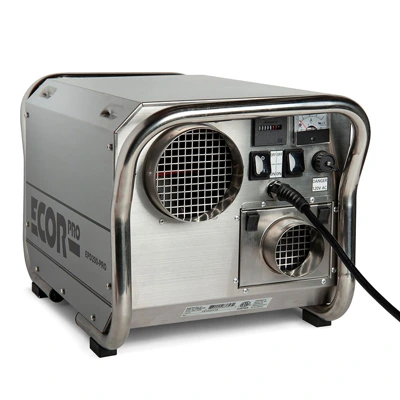

Ecor Pro DH3500 INOX DryBoat 45 Dehumidifier

Compact, high-capacity 45 litre boat dehumidifier

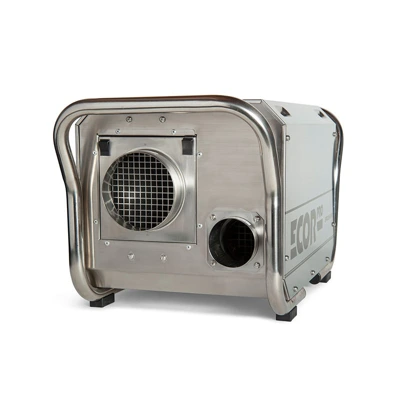

The Ecor Pro DH3500 DryBoat 45 is a compact, robust, and high capacity desiccant dehumidifier. It is specifically designed for use on boats and ships where the conditions can be extreme and diverse. The inside and outside stainless steel construction with double corners gives it greater impact and corrosion resistance that can not be matched by traditional dehumidifiers made from domestic grade materials. The DH3500 INOX dehumidifier is very versatile and portable. It is small and lightweight and features robust steel handles that allow 1 person to carry the unit easily. These handles also protect the edges and components of the dehumidifier, such as the 4 vent flanges and the controls. The handles can be easily removed for permanent installation into smaller spaces. The top cover is also easily removed and allows for access to the internal parts or maintenance, repair and replacement to prolong the service life. There is also easy access to the reticulated foam dust filter. The dust filter can be removed and cleaned or replaced in seconds. Marine dehumidifiers protect waterborne vessels such as ships, yachts and boats from the damage caused by damp, mould, and corrosion. They are also ideal for drying sails, ropes, clothes, and other equipment quickly. The 220v 50Hz supply can be run off a 12v DC-220v AC converter or 110v to 220v transformers.

Efficient 4 Vent System

2 inlets & 2 outlets. All ductable

Desiccant dehumidifiers are far more effective in extreme conditions that traditional refrigerant dehumidifiers. Instead of using a cold surface to create condensation that it can then extract, desiccant units use a mesh of absorbent material on a rotary wheel. These desiccant wheels absorb moisture like a sponge before the system disposes of it via a wet air exhaust outlet instead of collecting it in a tank or filtering it into an internal drain. An efficient desiccant system means the dehumidifiers thrive in challenging environments with very cold temperatures. They help prevent the build-up of ice which can contribute to colder conditions, slippery surfaces, and frost damage. This reduces the risk of accidents, injury, and downtime. The Ecor Pro DH3500 has a ductable system of 4 vents to help manage all climates, allowing it to dry enclosed areas without creating any kind of air pressure while in operation. It can also be used as a 3 vent system, or a straightforward drier.

45 Litre Desiccant Dehumidifier

Equivalent to a 90 litre refrigerant dehumidifier

The Ecor Pro DH3500 DryBoat is a desiccant dehumidifier with a large extraction rate of 45 litres per day. This rate is equivalent to a 90 litre refrigerant dehumidifier working at 18℃. They have an airflow volume capacity of 380m3/h, exhaust rate of 400m3/h, and a regenerated airflow rate of 125m3/h. They are extremely efficient machines that can be left running continuously for 24/7 - ideal for when you are sailing. There is an automatic reset function means that the dehumidifier will continue to run after an interruption to the power supply. The economical, efficient, and advanced self regulating energy usage system adapts to changing air pressure. This ensures only the right amount of power is consumed, reflective of the necessary drying capacity.

Available accessories include flexible industrial ducting in either 3m or 6m x 125mm lengths, or 3m or 6m x 85mm lengths. Ducting allows you to direct air into and out of the dehumidifier so that you can reduce the moisture in different areas without moving the unit. The ducting also allows you to use the 4 vent system to its full potential. An optional humidistat is also available. The humidistat connects to the dehumidifier and can be used to set the required relative humidity level in the space. The humidistat will automatically switch the dehumidifier on and off as required in order to maintain the pre-set humidity level.

You can order an Ecor PRO DH3500 INOX DryBoat 45 litre desiccant dehumidifier using our online checkout, or you can call us directly. Our friendly sales team can process your order and payment and also any questions that you might have before you commit to any purchase. Accessories are selected using the tick boxes above.

Please be aware, this product is supplied with a 16a plug from factory due to production regulations from the country of origin. This unit can be hardwired with a suitable fuse, used with a 16a/13a converter or a standard 13a three-pin plug can be retrofitted to the power cable. Doing so will not negatively impact the performance or safety of the unit, and will not affect your warranty. Contact the sales team for further information.

Ecor PRO DH3500 INOX DryBoat 45 Litre Desiccant Dehumidifier
Weight: 20.5 kg

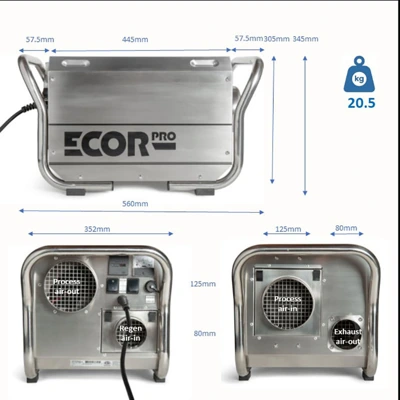

Dimensions: 445mm × 352mm × 345mm
Technology: Desiccant
Max extract: 45L
Power / Plug: 1500W, 220V, 50Hz / 6.5A
(220v 50Hz supply can be run off a 12v DC-220v AC converter or 110v to 220v transformers)
Cord length: 5m
Colour / Material: Stainless Steel
Duct sizes: 80mm - 125mm
Swimming pool ready: No
Humidistat inside / Humidistat option: No / Yes
Carrying handle / Water container: Yes / No
Fan speeds / Sound: 1 / 58dB
Operating temp: -20℃ to 40℃
Power out restart / Works from DC-AC convertor: Yes / Yes
Airflow M3/HR: 400 process / 125 exhaust
Approval: CE

Marine Grade Stainless Steel: Made from marine grade 316 stainless steel - resistant to corrosion from salt water and other chemicals. Parts are heat treated for strength & durability. Designed for drying out areas on boats, equipment, sails and clothing. Also suitable for a range of other challenging drying applications.

Zeolite Absorbent: Efficiently and effectively removes moisture from the air, even in extremely low temperatures.

-20℃ to +40℃ Operating Temperature Range: The dehumidifier is effective in the most challenging conditions, in areas where a refrigerant dehumidifier would be no use.

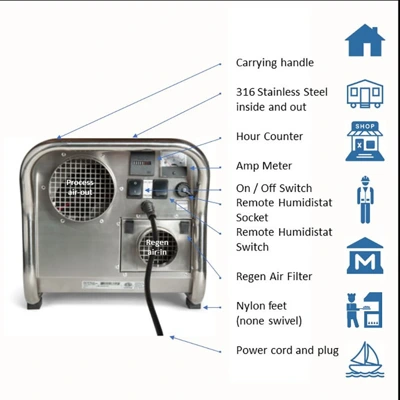

4 Hole Design: Air in, dry air out, regen air out & wet air exhaust. Moisture is removed by the absorbent and it is purged from the system as water vapour. This means there is no internal water tank to empty and the dehumidifier can be left to run 24/7.

Duct Air In & Out: The dehumidifier has vents fitted with flanges. Input air and wet exhaust air can be vented using simple ducting. This means air can be ducted in from anywhere in a building, on a boat or yacht, and the wet air can be exhausted outside.

Compact Size: Can be installed in small spaces, such as cabins, engine rooms, crawl spaces, lofts and more. It can also be used as a portable dehumidifier with ease, using the carry handle.

Dust Filter: Features a reticulated dust filter in a metal frame that can be cleaned easily or replaced when required to prevent dust particles entering the unit and impeding performance.

Optional Humidistat Control: These dehumidifiers can be used with a remote humidistat, available as an optional accessory. The humidistat allows you to set a required humidity level in the space that you want to dry out, and it will switch the dehumidifier on and off automatically, as required, in order to maintain the desired humidity level. This adds extra convenience, as it means you do not need to continually switch the dehumidifier on and off yourself. It also saves energy and money!

Four Feet & Carry Handle: Make the dehumidifier easy to transport & put in place. The handle can be removed if the unit is being installed.

Auto Reset: If there is an interruption to the power supply, the dehumidifier will continue to operate as soon as the power has been returned. Perfect in locations where the there is a “dirty” power supply that can affect other electronically controlled products.

4m Power Cord: Plenty of cable to allow for easy installation in crawl spaces or lofts in the home for example.

Long Service Life: Ecor Pro dehumidifiers are professional pieces of equipment, built to last. They are designed to provide years of reliable service. They are very easy to maintain and service when required. The easy to access design keeps service simple and costs low.
