Dania SSH Wall Mounted Electric Fan Heater - 3 Phase 5kW-22kW

Dania SSH Wall Mounted Electric Fan Heater

Ideal for workshops, garages, warehouses & more

Dania SSH electric fan heaters are high quality pieces of heating equipment. Manufactured with a corrosion proof powder coated steel housing, these space heaters are designed to be mounted on to a wall to provide an effective heating solution in workshops, garages, warehouses, factories and more.

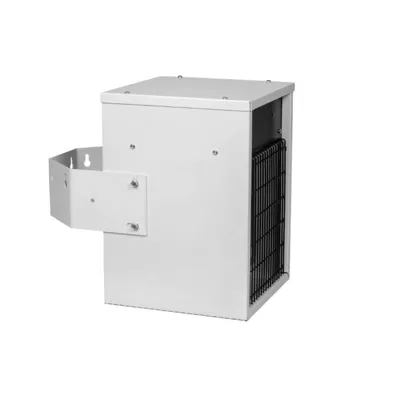

These fixed electric fan heaters come with an adjustable wall mount bracket, which allows you to fix the unit to a wall in your space quickly and easily. The adjustable wall mount allows the Dania SSH to be mounted in 3 different positions horizontally and 3 different positions vertically, so the stream of warm air can be directed as required. These heaters also feature an integrated thermostat and overheat protection.

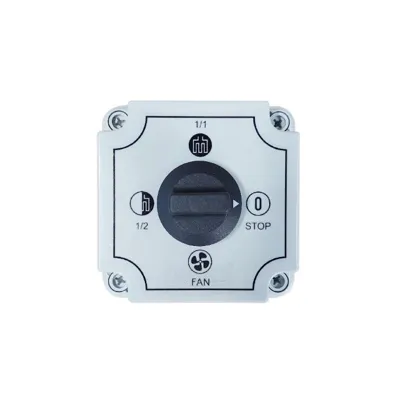

These stationary electric fan heaters are available in 5kW, 9kW, 15kW, 22kW models with variable settings for working at full or half power. The fan can even operate alone, without the heat, to provide air circulation in warm months. These units come with a separate control panel on a wire, which can be placed easily wherever it is required.

Operating at a very low noise level, Dania SSH wall mount IP44 electric fan heaters are capable of heating your workspace without becoming a noisy disruption.

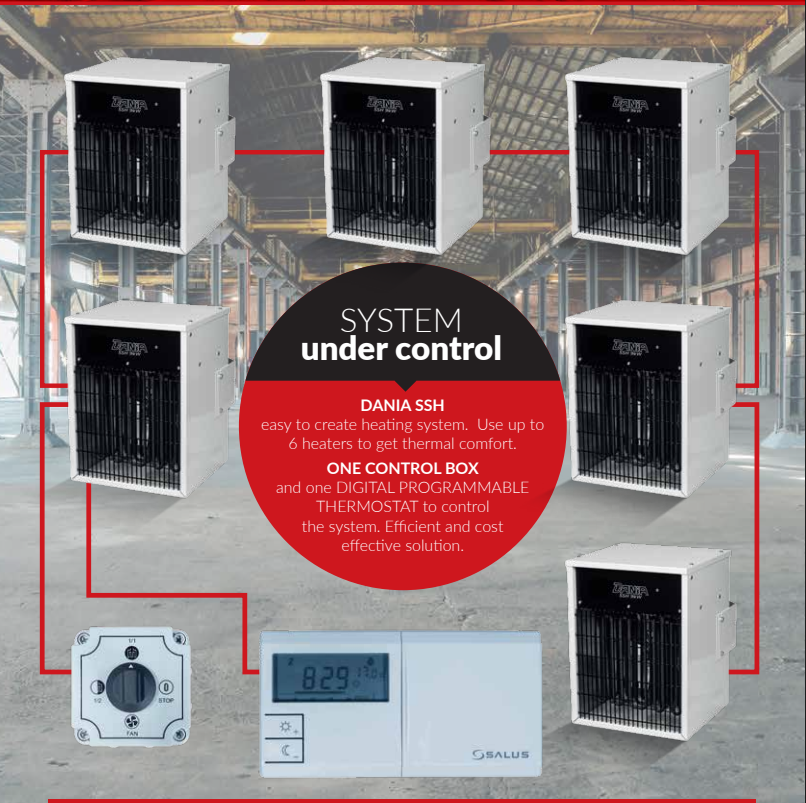

Please note that for Dania SSH heaters to operate, one thermostat and control box must be purchased. This can control the operation of up to six individual heaters.

Model: 5kW
Heating power [kW]: 0/2.5/5.0
Ventilator mode: Yes
External thermostat: 091FLV2
Power supply [V] / Frequency [Hz]: 3x400V/50Hz
Rated current [A]: 8.15
Fan diameter [mm]: 230
Air flow [m3/h]: 400
Product dimensions (LxWxH) [mm]: 255x385x355
Net weight [kg]: 8.15
IP protection class: 44

Model: 9kW
Heating power [kW]: 0/4.5/9.0
Ventilator mode: Yes
External thermostat: 091FLV2
Power supply [V] / Frequency [Hz]: 3x400V/50Hz
Rated current [A]: 13
Fan diameter [mm]: 300
Air flow [m3/h]: 900
Product dimensions (LxWxH) [mm]: 335x460x445
Net weight [kg]: 16.32
IP protection class: 44

Model: 15kW
Heating power [kW]: 0/7.5/15.0
Ventilator mode: Yes
External thermostat: 091FLV2
Power supply [V] / Frequency [Hz]: 3x400V/50Hz
Rated current [A]: 21.6
Fan diameter [mm]: 300
Air flow [m3/h]: 1300
Product dimensions (LxWxH) [mm]: 385x460x480
Net weight [kg]: 19.68
IP protection class: 44

Model: 22kW
Heating power [kW]: 0/11/22
Ventilator mode: Yes
External thermostat: 091FLV2
Power supply [V] / Frequency [Hz]: 3x400V/50Hz
Rated current [A]: 32
Fan diameter [mm]: 350
Air flow [m3/h]: 2400
Product dimensions (LxWxH) [mm]: 435x560x510
Net weight [kg]: 27.10
IP protection class: 44

Excellent Heat Capacity: Great heating power from a compact unit. Ideal for garages, workshops, areas in warehouses, factories & more.

100% Clean Warm Air: Can be used in enclosed and confined spaces. As the heater is powered by electricity, it produces no fumes and does not consume oxygen within the space. Provides a safe alternative to gas and diesel heaters.

400v 3 Phase Power Supply: Suitable for industrial heating applications

IP44 Rated: Protected from solid particles that are over 1mm in size and from low velocity sprays of water from every direction.

Two Heat Levels: Allows the heater to operate at full or half capacity. You can select the ideal heat level required for your space.

Ventilation Switch: Allows the fan to be operated without heat for ventilation in warmer months.

Overheat Thermostat: Shuts down the heater if it starts to overheat, to prevent accidents.
