Calorex DH 15AX Refrigerant Dehumidifier - 230v 15 Litres

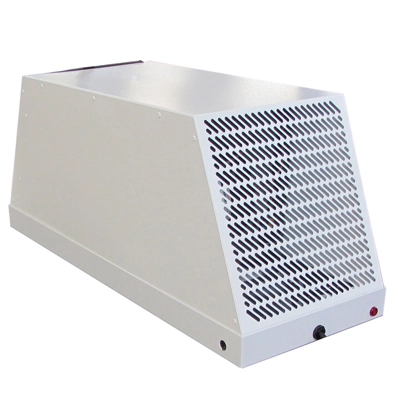

Calorex DH 15AX Wall Mounted Refrigerant Dehumidifier

Versatile Commercial Dehumidifier

The Calorex DH 15AX Wall Mounted Refrigerant Dehumidifier is a robust unit that is ideal for public spaces. This compact, wall-mounted dehumidifier is small enough to be installed into confined and concealed spaces. It will fit under stairwells, in wall cavities, rafters, ceilings, maintenance rooms and more.

This wall mounted dehumidifier removes up to 15 litres of excess water from a space each day. It has an operating temperature of 0-35°C and an airflow of 225m3/h. It is suitable for small to medium areas that have fluctuating temperatures. The Calorex DH 15AX is a versatile dehumidifier that is suited to humidity control in changing rooms, garages, libraries, museums, storerooms and many other demanding commercial locations.

Self Contained Commercial Dehumidifier

Fully automatic drying solution

The Calorex DH 15AX is a self contained and fully automatic dehumidifier that can be installed into place and allowed to run continuously - removing the excess moisture from a space and maintaining the ideal relative humidity. There is an integrated humidistat that turns the machine on and off as it is required to maintain the chosen conditions. The humidistat reduces the need for an operator to alter the settings of the dehumidifier, and it also cuts costs and reduces energy consumption. An optional remote humidistat is also available, which can be wired to the dehumidifier with up to 100m of cable (1mm SQ cable), allowing control of the set humidity level away from the unit.

Excess moisture is drawn into the machine, and then the condensate is fed out of the space and directed towards a drainage system through a 10mm hose connected to the drain outlet. The Calorex DH 15AX Wall Mounted Dehumidifier does not have a water tank built into the unit, so it does not require regular emptying and can be left to run at all times, without supervision. The dehumidifier also features an automatic defrosting function built into the system. If the evaporator reaches near freezing temperatures, the defrost function flushes the evaporator with hot gas. Once a preset temperature is reached, the dehumidifier resumes regular operation.

Robust Wall-Mounted Dehumidifier

Ideal for public, commercial spaces

The Calorex DH 15AX commercial dehumidifier is designed to be installed permanently, offering humidity control in demanding, commercial areas. It has an epoxy polyester painted zintec steel cabinet and has been designed to withstand the physical demands of regular onsite use in challenging environments. It also protects all the internal working components, ensuring longevity. The air inlet vent has an integrated air filter that captures suspended particles, such as dust, loose hairs and other particles. The air filter prevents small particles from entering the unit and also stops them from circulating around the area.

The dehumidifier has tamper proof controls so that they cannot be altered by unauthorised individuals or children. This dehumidifier is ideal for public spaces, such as schools, leisure centres and more. You can order a Calorex DH 15AX Wall Mounted Refrigerant Dehumidifier through our online checkout or over the phone with our sales team. If you need more information or advice, we are available via online live chat, email and telephone.

Operating Temp Range: 0-35°C
Dehumidification @ 30°C/60% RH: 15l/24h
Heat Recovered To Air @ 30°C/60% RH: 0.9kW
Airflow: 225m3/h
External Static Pressure: 0Pa
Sound Pressure Level @ 3m: 53dB(A)
Refrigerant: R407c
Power Supply: 230/1ph/50V/Hz
Nominal Power Consumption: 0.43kW
FLA: 3.8A
Maximum Supply Fuse: 10A
LRA (Compressor Start): 18A
Dimensions (w x d x h): 825 x 363 x 320mm
Condensate Drain Size: 10mm
Weight: 33kg

Compact Design: The Calorex DH 15AX dehumidifier is small enough for installation in confined spaces, so it is ideal for stairwells, corridors, wall cavities, rafters and more.

Extracts Up To 15 Litres Per Day: Efficient & effective drying performance, with cooling and compressor operating times based on an internal microprocessor calculation to optimise performance.

Integrated Humidistat: Allows you to set a required humidity level in the space. The humidistat will switch the dehumidifier on and off automatically, as required, to maintain the desired humidity level. An optional remote humidistat is also available, which can be wired to the dehumidifier with up to 100m of cable (1mm SQ cable), allowing control of the set humidity level away from the unit.

Integrated Air Filter: Captures and filters out suspended particles, such as dust, loose hairs and other particles.

Self Contained / Fully Automatic: You can leave the unit running continuously so that it can extract the maximum amount of excess moisture from a space.

Hot Gas Defrost: An automatic defrosting function is also built into the system. If the evaporator reaches near freezing temperatures, the defrost function flushes the evaporator with hot gas. Once a preset temperature is reached, the dehumidifier resumes regular operation.

Robust Build: The Calorex DH 15AX dehumidifier has an epoxy polyester painted zintec steel cabinet and has been designed to withstand the physical demands of regular onsite use in challenging environments. It also protects all the internal working components.

Tamper Proof Controls: The controls are designed so that they cannot be altered by unauthorised individuals or children. This dehumidifier is ideal for public spaces, such as schools, museums, galleries, leisure centres and more.
