Arcotherm SP Industrial Cabinet Heaters 32kW - 219kW

Arcotherm SP Industrial Cabinet Heaters

A Powerful, Portable Heating System

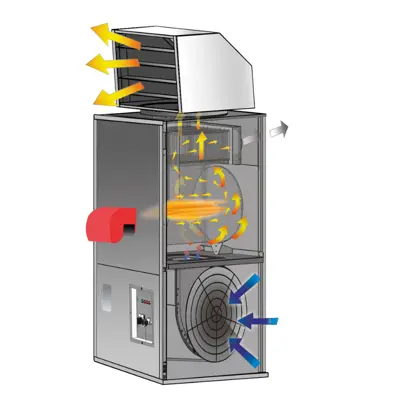

Each of these units comes equipped with a burner which is supplied with a snorkel outlet to ensure clean combustion air through connection with an external air aspiration duct. The new heat exchanger is combined with the new high-performance fans allowing for a heat output of 92 / 93%. The machines panels with reinforcement cross pleats to ensure superior rigidity and strength (SP 110-235).

Comes with a FAN for fan control, LIMIT for burner control, and OVERHEATING safety thermostat in case of overheating, with manual reset. The bearing structure comes with removable panels for internal washing, even on hanging machines. Each produces a very low noise fan (noise level ≤ 69db at 2 meters). These high-output, high-performance fan guarantees increased airflow and static pressure (500 Pa) for uniform and long-distance diffusion of warm air through channels or ducts.

SP 35
Rated Heat Power (kW): 34
Output Heat Power (kW): 32
Airflow (m3/h): 2.700
Efficiency (%): 93.9
SP 70
Rated Heat Power (kW): 70
Output Heat Power (kW): 65
Airflow (m3/h): 6.000
Efficiency (%): 93.2
SP 110
Rated Heat Power (kW): 110
Output Heat Power (kW): 103
Airflow (m3/h): 10.500
Efficiency (%): 93.4
SP 235
Rated Heat Power (kW): 235
Output Heat Power (kW): 219
Airflow (m3/h): 21.000
Efficiency (%): 93.4

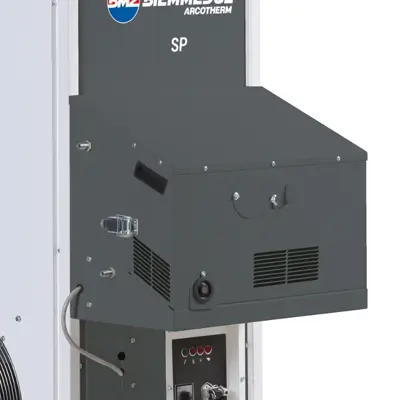

Snorkel Outlet: The burner is supplied with a snorkel outlet to ensure clean combustion air through connection with an external air aspiration duct.

Heat Output: The new heat exchanger combined with the new high-performance fans allows for a heat output of 92 / 93%.

Superior Rigidity & Strength: Panel with reinforcement cross pleats to ensure superior rigidity and strength (SP 110-235).

Thermostat: Comes with FAN for fan control, LIMIT for burner control, OVERHEATING: safety thermostat in case of overheating, with manual reset.

Removable Panels: Bearing structure with removable panels for internal washing, even on hanging machines.

Ventilator (IP 55): Produces very low noise fan (noise level ≤ 69db at 2 meters).

High output: High-performance fan guarantees increased airflow and static pressure (500 Pa) for uniform and long-distance diffusion of warm air through channels or ducts.
