Arcotherm Confort 35 (ErP) Cabinet Heater - 230v 32kW

Arcotherm Confort 35 ErP Diesel Cabinet Heater

Comply with the latest regulations

The Arcotherm Confort 35 is part of Arcotherm’s new generation of ErP compliant indirect fired diesel cabinet heaters. The Energy related Product Directive 2018 implemented a series of measures for reducing greenhouse gas emissions from space heaters. As of 1st January 2018, the Directive required all diesel and gas powered units to achieve a seasonal efficiency of more than 72%. As of 26th September 2018, the Directive required that NOx emissions must not exceed 180 mg/kWh (gross) for oil fired units. With an Arcotherm Confort 35, you can rest assured that your heating solution complies with these latest regulations.

High Quality Design & Build

Reliable and effective heating performance throughout the cold winter months

Arcotherm are renowned for producing extremely robust and efficient equipment, with a range of components and features that ensure reliable and effective performance. The Confort 35 model is no exception. These 32kW units feature a double-skinned body for thermo-acoustic insulation and safe low surface temperature, and a robust stainless steel combustion chamber. The combustion chamber is pre-heated and post-ventilated for maximum efficiency and reliability.

These heaters also have a manual reset safety overheat thermostat which shuts the unit off instantly if there is an issue, as well as an integrated 80 litre fuel tank, electronic flame control, built-in thermostat and a centrifugal fan to send the warm air out into the space. The hot air produced by the these cabinet heaters is absolutely clean, as the exhaust fumes are removed from the premises via an exhaust pipe.

Accessories Available

Everything you need to heat a warehouse, workshop or showroom

We have a number of accessories available for Arcotherm Confort 35 cabinet heaters. These accessories allow you to get the exact setup that you want in order to heat your space. We have feet kits and wheel kits available - so you can either set the heater up to sit in one position or to be wheeled around. We also have fixed air outlet diffusers or 360° swivel head outlet diffusers. Both of these diffusers have adjustable louvres, so you can direct the heat as required. In addition, we have air inlet ducting available, as well as exhaust pipes, exhaust elbow pipes and rain cowls, so you can direct the exhaust fumes out of the space as required. To find out more about our range of accessories available for, simply give us a call.

Please note: These units are not suitable for use with waste oil.

Dimensions (Width x Depth x Height): 530mm x 1010mm x 1360mm
Weight: 141 kg
Rated heat power: 34.76 kW / 29,891 - 119,564 kcal/h - BTU/h
Output heat power: 32.64 kW / 28,068 - 112,270 kcal/h - BTU/h
Heat efficiency: 93.4%
Air flow: 2700 m3/h
Available static press.: 150 - 15 Pa - mm H2O
Fuel consumption: 2.75 kg/h
Tank capacity: 80 litres
Run time: 25 hours
Electrical power: 230-1-50 V-ph-Hz
Power consumption 230V: 680 watts
Temperature rise: 43°C
Flue ø: 150mm

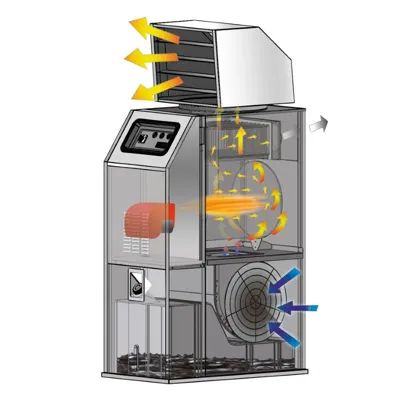

100% Clean Warm Air: Circulates only clean, fume-free warm air, as the fumes produced during combustion are held within the heat exchanger and exhausted outside.

Exhaust Gas Flue: 150mm diameter flue exhaust can be connected up to lengths of flue pipe in order to vent fumes outside.

Plug & Play: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, and then plugged into a standard 230v plug socket.

High Quality Features: The double-skinned body provides thermo-acoustic insulation and safe low surface temperature, and a robust stainless steel combustion chamber pre-heated and post-ventilated for maximum efficiency and reliability. Electronic flame control and an efficient centrifugal fan ensure reliable and effective performance.

Standard & Swivel Head Outlets Available: The standard head features an outlet with adjustable louvres around all four sides, for equal air distribution. Louvres can be closed in order to direct warm air where you want it. The swivel head version features a 360 degree adjustable head, which can be rotated in order to direct warm air where it is needed.

Integrated Thermostat: Allows you to set a required temperature within the space. The heater will automatically switch itself on and off as required in order to maintain the required temperature, saving fuel, energy and money.

Internal 80 Litre Fuel Tank: Provides plenty of fuel to keep the heater running and can be topped up easily when needed.

230v Power Supply: Can be plugged easily into any standard 230v pocket socket, for convenience and ease of installation.

Fan Only Switch: Allows the fan to be used alone without heat, in orde to provide ventilation during summer months.

Overheat Thermostat: Shuts the heater down automatically if it starts to overheat, preventing an accident.
