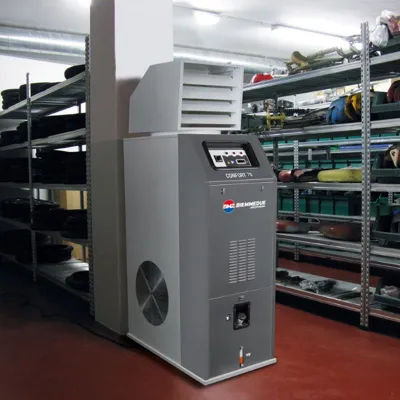

Arcotherm Confort 70 (ErP) Cabinet Heater - 230v 66kW

Arcotherm Confort 70 Diesel Cabinet Heater

Maximum efficiency. Minimal emissions.

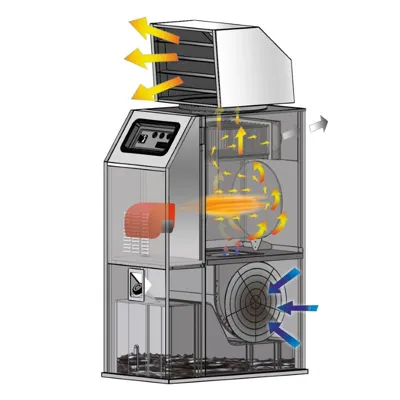

The Arcotherm Confort 70 Plug and Play Cabinet Heater is Erp 2018 compliant, complete with a range of robust features and reliable components to ensure premium heating performance. Heat produced by this indirect combustion heater is 100% clean as the exhaust fumes are removed from the premises via an exhaust pipe. This 70kW cabinet heater is designed for quick and instant installation, providing a convenient and effective heating solution at the first sign of winter.

This heater offers fantastic features: the automatic oil burner, electronic flame control and a centrifugal fan to circulate heat around the space. Featuring a fan-only switch to provide ventilation and de-stratifaction in summer. The huge 110 litre integral fuel tank supports up to 16 hours runtime, with an integrated fuel level indicator for convenience.

The Confort 70 features a double-skinned body which provides thermo-acoustic insulation and safe low surface temperature. Created with advanced technology, the stainless-steel combustion chamber is pre-heated and automatic post-ventilated for maximum efficiency.

This indirect combustion cabinet heater is supplied with multiple thermostats, including the built-in electronic room thermostat enabling temperature control from 0° to +40°C, the heater will turn on and off to adapt to the set temperature –  saving fuel, energy and costs. Plus, an Automatic Reset FAN-LIMIT bi-thermostat and a manual reset safety overheat thermostat which triggers auto shut-off should there be any issues – so you can rely on a safe and secure heating solution.

Cabinet Heater Accessories Available

Robust. Reliable. Effective.

We have a great range of accessories available for use with our Arcotherm Confort cabinet heaters. These accessories allow you to create the exact setup that you require to heat your space. We have feet kits and wheel kits - so you can either set the unit up to sit in one location or to be easily portable.

We have fixed air outlet diffusers or 360° swivel head air outlet diffusers. Both of these diffusers have adjustable louvres, allowing you to direct the heat as required. In addition, we have air inlet ducting available, as well as exhaust pipes, exhaust elbow pipes and rain cowls. This piping allows you to exhaust the fumes as required in your space.

To find out more about our range of accessories, give us a call.

Please Note: These units are not suitable for use with waste oil.

Rated heat power: 70.78 kW / 60,869 - 243,476 kcal/h - BTU/h
Output heat power: 65.96 kW / 56,730 - 226,919 kcal/h - BTU/h
Electrical power: 230-1-50 V-ph-Hz
Power consumption 230V: 1350 watts
Heat efficiency: 93.2%
Air flow: 6000 m3/h
Available static press.: 150 - 15 Pa - mm H2O
Fuel consumption: 5.6 kg/h
Tank capacity: 110 litres
Run time: 16.9 hours
Temperature rise: 40°C
Dimensions (mm): 600 (W) x 1045 (D) x 1530 (H)
Weight (kg): 184
Flue ø: 150mm

100% Clean Hot Air: This ErP Compliant Cabinet Heater delivers clean, fume-free heat only, as the fumes produced during combustion are exhausted outside.

Plug & Play: Designed for quick and instant installation by any tradesperson, it simply requires a hole in the wall for exhaust fumes and plugged into any mains socket.

High Quality Features: Including the double-skinned body, pre-heated and automatic post-ventilated combustion chamber, electronic flame control, automatic oil burner and a centrifugal fan featuring a fan-only switch.

Multiple Thermostats: The Confort 70 is supplied with a built-in electronic room thermostat, enabling temperature control between 0° to +40°C, an Automatic Reset FAN-LIMIT bi-thermostat and a manual reset safety overheat thermostat.

Integral 110 Litre Fuel Tank: Supports up to 16 hours runtime and can be easily topped up, with an integrated fuel level indicator for convenience.

Standard & Swivel Head Outlets Available: The standard head features an outlet with adjustable louvres around all four sides, for equal air distribution. Louvres can be closed in order to direct warm air where you want it. The swivel head version features a 360 degree adjustable head, which can be rotated in order to direct warm air where it is needed. 150mm diameter flue exhaust can be connected to vent fumes outside.
