Arcotherm EK10C Industrial Electric Fan Heater - 3 Phase 10kW

Arcotherm EK10C Industrial Electric Fan Heater

10kW portable industrial electric heater for workshops, garages, sites & more

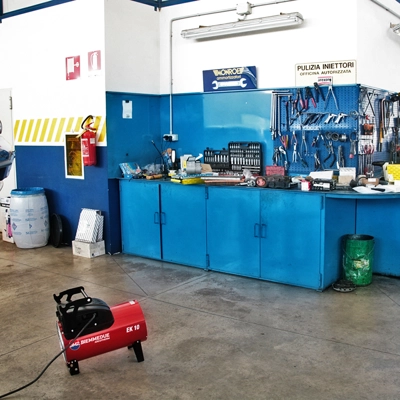

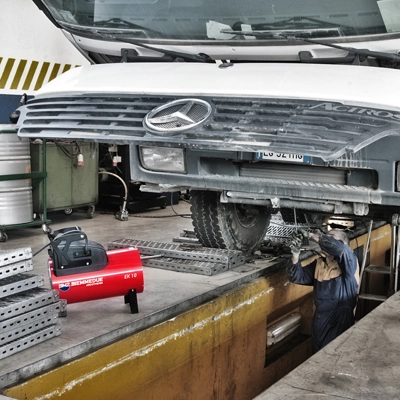

The Arcotherm EK10C is a compact, portable and robust industrial electric fan heater. It has a maximum heating capacity of 10kW and it can operate at reduced capacity of 6.6kW. With an airflow rating of up to 1,500 m³/h, this electric heater is capable of heating a range of industrial spaces effectively, including garages, workshops, warehouses, construction sites, factories & more.

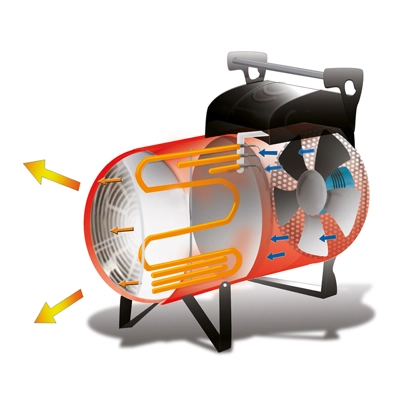

The EK10C heater features a high strength heating element and efficient fan, to draw air in through the rear of the unit, heat it quickly and blow the warm air out of the front of the heater. It has a tough metal casing with a stainless steel front grid. It is built to the highest standards to perform even in challenging environments. The built-in room thermostat allows you to set a required temperature and the heater will switch itself on and off automatically to maintain the set temperature level – adding convenience and saving on running costs.

This industrial electric space heater is safe and reliable, with a safety thermostat which shuts the heater down if it overheats. Due to its compact, lightweight and stackable design, the Arcotherm EK10C electric heater is easy to transport, move around a site and quickly stow away. This heater can be used with a ducting adapter, to fix up to 6m of ducting (ø 300 mm) on to the warm air outlet. This allows you to vent warm air into spaces that you wish to heat.

Max Rated Heating Power: 10kW
Min Rated Heating Power: 6.6kW
Airflow: 1,500 m³/h
Temperature Rise (a 20°C): 48.3 – 30.5 °C
Current Max: 13.6 – 7.1 A
Electrical Power: 400v - 3 Ph - 50 Hz
Dimensions (L x W x H): 505 x 277 x 511 mm
Weight: 13kg

10kW Heating Power: Great heat capacity from a compact unit. Ideal for heating industrial spaces such as large garages & workshops, warehouses, factories, construction sites & more.

Two Stage Heat Output: The Arcotherm EK10C electric heater can operate at maximum capacity of 10kW or reduced capacity of 6.6kW.

Extra Strength AISI 321 Heating Elements: Built for high performance. Produces fast and effective warm air for workers and materials on site.

In-Built Thermostat: Allows you to set a required temperature and the heater will switch itself on and off automatically to maintain this temperature, adding convenience and saving money on running costs.

Safety Thermostat: Automatically shuts down the heater if it overheats, improving safety.

Compact & Portable Design: This is a convenient portable space heater that can be moved around easily and used wherever it is required.

Stackable: Allows for simple storage and transport.

Ductable: This heater can be used with a ducting adapter to fix up to 6m of ducting to the warm air outlet. This allows you to vent warm air into the space you wish to heat. You can add a ducting adaptor and 6m ducting to your order as accessories.

Please note that there is no 3 phase power plug included, the unit is supplied with cable only.
