Airrex AH-800i Diesel-Fuelled Infrared Heater - 230v 22kW

Airrex AH-800i Diesel Fuelled Infrared Heater

Portable 22kW infrared heater for workshops, warehouses, garages & more

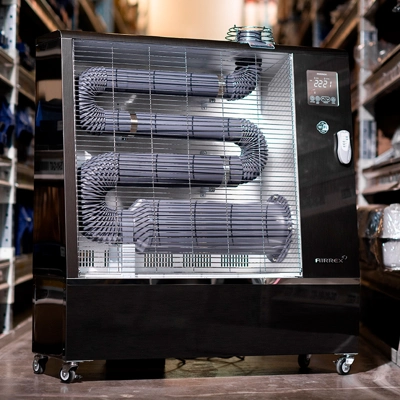

The Airrex AH-800i is an innovative and portable 22kW diesel fuelled infrared heater that can heat large spaces up to 2000m³. It produces minimal exhaust emissions and is suitable for use indoors thanks to a revolutionary patented oil burner and exhaust piping. An exhaust pipe to the outside is only necessary when the heater is used in enclosed premises or premises where people sleep. This makes the Airrex AH 800 an excellent choice for workshops, warehouses, garages and agriculture, as well as marquee companies, events companies and venues.

Other features of the Airrex fuel-fired heater include its low fuel consumption, minimal odours, thermostatic control and almost silent operation. The Airrex AH-800i infrared heater does not have a fan, so it does not release dust into the air. The infrared radiation produced heats materials, surfaces, objects and people directly instead of air, which is a comfortable and efficient form of heating. The infrared heat is distributed evenly in all directions and feels pleasant even right next to the heater.

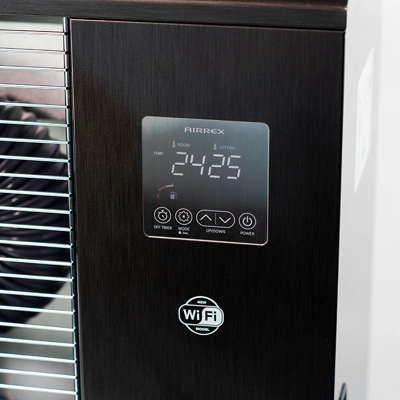

Airrex infrared heaters have a completely redesigned manual control panel with simple soft-touch control panel and a LED screen. The Airrex AH-800i has built-in WiFi connectivity, which means that you can control it via an app on your smartphone. An optional 4G dongle allows the heater to be controlled using the app even in areas that do not have WiFi.

This heater is very safe and reliable in operation. If it shakes or is about to fall, its safety system immediately turns off the bulb and disconnects fuel feeding. After a power outage, the heater will continue to operate with the same settings as before the outage.

The AH-800i heater can run on standard diesel, red diesel or Neste MY biodiesel, which is made from food waste. In temperatures below 10°C winter-grade fuel must be used. On full power, the heater only uses about one litre of fuel per hour, si it is very cost effective. The unit comes with a battery-powered fuel transfer pump to make refuelling easy

A range of optional accessories are available for this infrared heater, including a protective frame and trolley, as well as an exhaust silencer and 4G dongle.

Heating Capacity: 22 kW/h
Weight: 81 kg
Dimensions: 1300 x 350 x 1400 mm (W x D x H)
Suitable Fuels: Biodiesel, Diesel, or Red Diesel
Fuel Consumption: 1.71 – 1.9 L/h (Continuous Heating)
Fuel Tank Volume: 70 L
Power Consumption: 80 W (230 V, 50 Hz)
Noise Level: 48 dB
Thermostat Control: Yes, Automatic
Temperature Adjustment Range: 0-40°C
Remote-Controlled: Yes
Network Connection: WiFi (or 4G)
Mobile Applications: Airrex (Android Google Play or iOS AppStore)
Control Panel: Simple Soft-Touch Control Panel with LED Screen
Stop Timer: 0-24h
Interval Timer: 5-60min Use Time + 5min Break in Between
Remote Control: Yes, Infrared
Security System: Odour Prevention System, Fuel Level, Tilt, Shaking, Overheating and Burner Operation Detector and Alarm, Error Sensor for Temperature Sensor, Locking Device, Automatic Shutdown

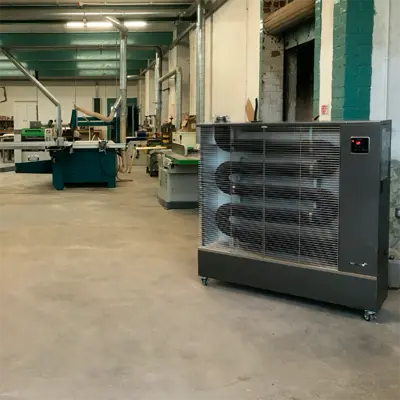

Heat Output of 22kW: The Airrex AH-800i is capable of heating large spaces up to 2000m³, which makes it ideal for heating areas like workshops, warehouses, greenhouses, barns, large marquees and more..

Suitable for Ventilated Indoor Areas: The Airrex patented oil burner and exhaust piping produces minimal exhaust emissions, so this heater is suitable for use indoors. An exhaust pipe to the outside is only necessary when the heater is used in enclosed premises, or premises where people sleep.

Redesigned Burner & Piping: The burner is now quieter, more reliable and, best of all, all Airrex burners comply fully with the EU Emissions Directive, which means lower nitrogen oxide emissions. With the revamped burner, the piping has also been redesigned for cleaner combustion.

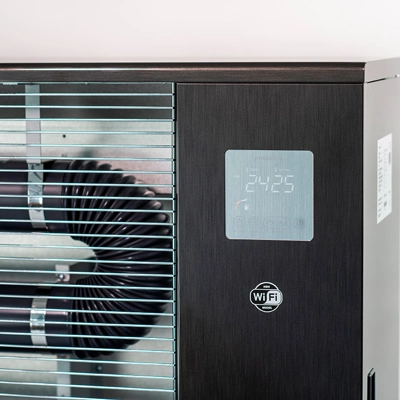

WIFI/4G Smartphone Connection: You can control the heat output via your smartphone. A standard infrared remote control is also included as well as a manual control panel with softouch buttons and LED screen.

Built-in Safety Features: If the heater shakes, is about to fall unexpectedly or a disturbance occurs, its safety system immediately turns off the bulb and disconnects fuel feeding.

Choice of Diesel: This heater can be fuelled using standard diesel, red diesel or Neste MY biodiesel, which is made from food waste. (In temperatures below 10°C, winter-grade fuel must be used).

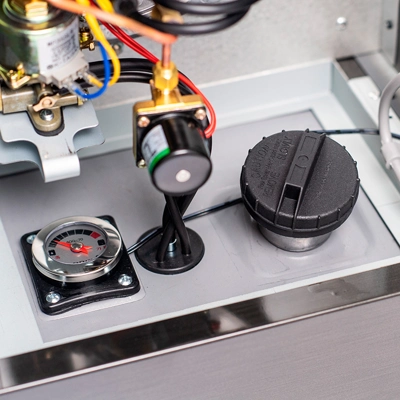

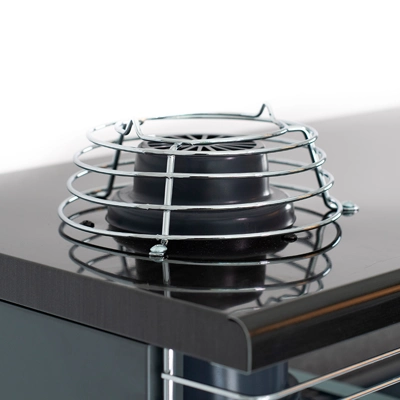

Sealed Cap & Strong Protective Grid: The fuel cap is fully sealed to prevents fuel spillage when moving the heater. In addition, the grid protecting the ceramic piping has been reinforced and improved.

Zero Air Movement: This infrared heater has no fan. This means there is no air movement, so it will not kick up dust in areas like workshops, warehouses, greenhouses and more.

Portable Design: Mounted on a set of wheels, the heater can be moved around easily.

Quiet Operation: The Airrex AH-800i is extremely quiet at only 48dB, so it will not cause a disturbance in the workplace, at events and in public areas.

Fast set up: Simple set up/plug and play design

Three Year Warranty: After product activation, a three-year warranty is provided for all diesel heaters by Airrex.

Range of Accessories Available: An extensive range of accessories is available for the Airrex AH-800i diesel infrared space heater, including a protective frame, moving trolley, 4G router, flue pipes and more. View the full range of accessories here.
