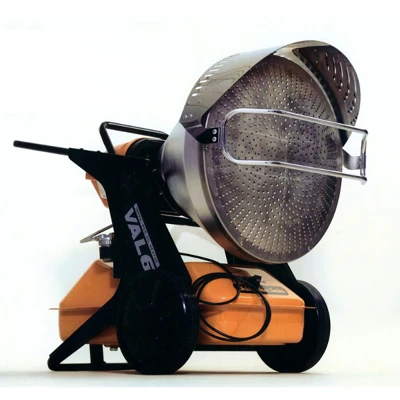

Thermobile VAL 6 EPX - Infrared Space Heater - 240v 40kW

Infrared technology, outstanding heating

Heating power for a range of commercial and industrial spaces

Designed for personal, limited space or spot heating in commercial and industrial environments including agriculture, horticulture, building sites, warehouses, workshops and more, the Thermobile VAL 6 EPX Infrared Oil Fired Radiant Heater offers class-leading drying and heating performance.
With an odourless, fixed radiation temperature of up to 150 °C at 70 cm and 20 °C at 3 m, the VAL 6 EPX is powered by a high-pressure burner that is housed in a cutting-edge ceramic fibre combustion chamber.

Clean, odourless heat

Cutting edge burner and ceramic fibre technology

What makes the EPX variant of heater unique is its oversized tank which is capable of fuelling the heater for 20 hours on a low setting, and 15 hours on a high setting coupled with an enlarged radiation disc for a broader heating coverage. This makes it one of the best heaters of its type for refuelling intervals and air distribution. Thermostat operation is also an option for this heater, further regulating temperatures, protecting internal parts from overheating and giving operators complete control.

Please observe all manufacturer recommended conditions and safety information when operating these heaters, and ensure correct and suitable ventilation is properly implemented before use. Please also ensure all local and national building rules and regulations are followed before operating.

For more information on the Thermobile VAL 6 EPX infrared oil fired heaters, accessories, spares or any other heater in National Heater Shops’ extensive range, then call our friendly experts on the sales team today.

Technical Information:

Heat output (Btu/hr): 136500
Heat output (kW): 40
Fuel consumption oil max. (l/h): 3.7
Tank capacity (l): 58
Power consumption (AMPS): 0.25

40kW Of Heating Power: For use in well-ventilated spaces, this heater has a fixed radiation temperature of up to 150°C at 70cm and 20°C at 3m.

Oversized Tank: Capable of fuelling the heater for 20 hours on a low setting and 15 hours on a high setting, coupled with an enlarged radiation disc for a broader heating coverage.

No Air Flow: Good for dusty sites, where the airflow from a fan heater could cause a hazard.

High Pressure Burner: This heater is equipped with a 15 second pre-purge control system and 180 second post-purge.

Portable Design: Convenient trolly base and handle allows the unit to be wheeled around the site where needed.

Integrated Thermostat: This helps further regulate temperatures, protecting internal parts from overheating and giving operators complete control.

High Quality Components: For safe and reliable performance, this heater features a photocell flame control and a combustion chamber of fibre ceramic.
