Turnbull & Scott Electric Over Door Heater 3kW - 9kW

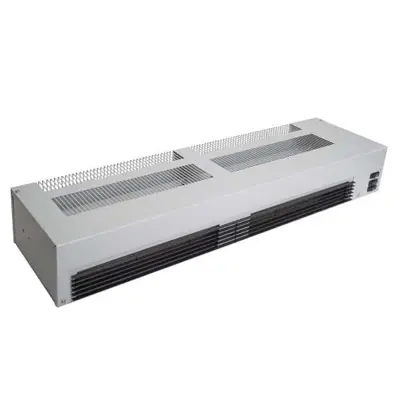

Turnbull & Scott Electric Over Door Heater

Efficient Electric Heater & Temperature Regulator

The Turnbull & Scott Electric Over Door Heater is a powerful fan heater designed to provide a warm welcome to entrants, helping to impart an inviting first impression. Typical installations include retail stores, reception areas, entrance halls, offices, warehouse entry points and more. The unit may be installed neatly above any doorway. Finished with a simple white powder-coated grille, this minimalist over door heater is designed to complement any commercial space without compromising on style.

The Electric Over Door Heater not only provides heat, but the curtain of warm air produced helps to create a barrier, minimising heat loss due to frequently used entryways - where cold draughts consistently lower the ambient room temperature. For large entryways, multiple units can be used in tandem to deliver sufficient coverage.

The Electric Over Door Heater is available in various heat output capacities, (3kW, 4.5kW, 6kW, 9kW) each with different control options. Select between partial, half and full power to achieve the desired heating performance. Also featured is a switch for fan-only mode to achieve de-stratifcation - equalising the ambient temperature throughout the space. Plus, operating the fan without any heating elements produces a slight cooling effect during warmer days.

Models ODH-6000 and ODH-9000 are compatible for use with the ODH-RSW remote switch available as an optional extra, allowing the user to control the Electric Over Door Heater remotely. Please note that models ODH-3000R and ODH-4500R require the additional ODH-RSW for operation. Models ODH-3000 and ODH-4500 are supplied with pre-connected cables for ease of installation and can be controlled by remote thermostat and/or time controller depending on your preference.

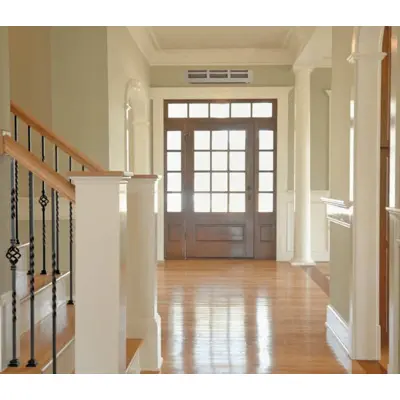

The Electric Over Door Heater is supplied with fixing brackets designed to support wall mounting as close as possible to the top of the doorway, or ceiling mounting for areas requiring a boost of localised heating. The brackets are adjustable up to 90^o, so you can install the unit in the most convenient configuration for your space.

ODH-3000 / ODH-3000R

Application Type (ODH-3000): Integral Switching

Application Type (ODH-3000R): For Remote Switching

Output (Kw): 3

Voltage (V): 230

Length Between Fixings (mm): 505

Dimensions (mm): (L) 600 x (H) 220 x (D) 120

Weight (kg): 5

ODH-4000 / ODH-4500R

Application Type (ODH-4500): Integral Switching

Application Type (ODH-4500R): For Remote Switching

Output (Kw): 4.5

Voltage (V): 230

Length Between Fixings (mm): 505

Dimensions (mm): (L) 600 x (H) 220 x (D) 120

Weight (kg): 5

ODH-6000

Application Type: Integral & Remote Switching

Output (Kw): 6

Voltage (V): 230

Length Between Fixings (mm): 800

Dimensions (mm): (L) 850 x (H) 220 x (D) 120

Weight (kg): 12

ODH-9000

Application Type: Integral & Remote Switching

Output (Kw): 9

Voltage (V): 230/400

Length Between Fixings (mm): 1185

Dimensions (mm): (L) 1235 x (H) 220 x (D) 120

Weight (kg): 15

3kW – 9kW Heat Capacity: Choose from a selection of model options each with varying outputs (3kW, 4.5kW, 6kW, 9kW) to find the ideal heating solution for your entryway.

90^o Adjustable Mounting Bracket: Fixing brackets are supplied with the unit, designed to support wall or ceiling mounting, that are adjustable up to 90^o, so you can install the unit in the most convenient configuration for your space.

Perfect For Commercial Spaces: This efficient and effective electric over door heater is designed to deliver a blanket of welcoming warmth to entrants, imparting an inviting first impression.

Multiple Operating Modes: Temperature control is provided via internal rocker switches which enable partial, half and full heating power as well as fan-only mode for de-stratification - equalising the ambient temperature throughout the space.

Remote Wall Switch Optional: All models (except ODH-3000 and ODH-4500) are compatible for use with the ODH-RSW remote switch available for purchase separately, allowing the user to control the Electric Over Door Heater remotely.
