Trotec TTR 300 Desiccant Dehumidifier 17 Litres

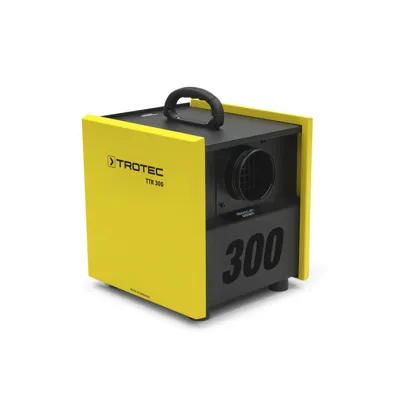

Trotec TTR 300 Desiccant Dehumidifier

A Compact Air Regulating Unit

The TTR 300 is a mobile dehumidifier that maximised performance with minimised measurements. Offering exceptional dehumidification performance at low dew points, the TTR 300 is a dryer for flexible. Use for humidity regulation in production areas and storerooms as well as for protection against corrosion and condensation in humidity-sensitive areas. Its advanced electronic Monoventic air volume regulation allows infinite, demand-oriented regulation of the required dry air volume. Dehumidification performance, power consumption, and noise emission are all primarily suited for smaller rooms or applications for which only small volumes of air are required.

These dehumidifiers have also been designed with space saving in mind. Each is light weight offering up to thirty percent less weight than other comparable models on the market. They offer incredibly slimline dimensions and have been designed to be stackable. These features make it perfectly suited for use in even snug spaces. Stack multiple without taking up more square footage of room space. Each as also been built to last requiring little long-term maintenance.

TECHNICAL DATA
General information
Article number: 1.110.000.015
Dry air (in case of intake air 20°C / 60 % RH)
Dehumidification [kg/24h]: 16.8
Dehumidification [kg/h]: 0.7
Min. air volume [m³/h]: 80
Max. air volume [m³/h]: 280
Nominal air volume | Dry air (in case of intake air 20 °C / 60 % RH) [m³/h]: 200
External compression | Dry air (in case of intake air 20 °C / 60 % RH) [Pa]: 100
Connection inlet Ø [mm] | Dry air (in case of intake air 20 °C / 60 % RH): 100
Connection outlet Ø | Dry air (in case of intake air 20 °C / 60 % RH) [mm]: 100
Regeneration air
Nominal air volume | Regeneration air [m³/h]: 30
External compression | Regeneration air [Pa]: 50
Connection outlet Ø | Regeneration air [mm]: 50
Operating principle
Operating principle: TTR Bisorp Mono
Operating range
Min. temperature [°C]: -15
Max. temperature [°C]: 35
Min. humidity [% RH] : 0
Max. humidity [% RH]: 100
Electrical values
Mains connection: 230 V/50 - 60 Hz
Nominal current consumption [A]: 3.9
Power input [kW]: 0.9
Power input heating [kW]: 0.85
Recommended fusing [A]: 16
Electric connection
Connection plug: CEE 7/7
Cable length [m]: 2.5
Sound values
Distance 1 m [dB(A)]: 61
Automatic dehumidification
Non-stop dehumidification
Dimensions
Length (packaging excluded) [mm]: 355
Width (packaging excluded) [mm]: 310
Height (packaging excluded) [mm]: 355
Weight
(packaging excluded) [kg]: 12

Monoventic Air Volume Regulation: Advanced control electronics allow a precise and infinite adjustment of the dry air volume.

Up To 30 % Lighter: Lighter than other competitive models on the market that offer the same performance.

Extremely Low In Maintenance: These compact machines require minimal long-term maintenance and offer easy internal access if maintenance is eventually required.

Save Space: These units offer compact proportions and a stackable design meaning they slip seamlessly into a variety of areas whilst taking up minimal space.
