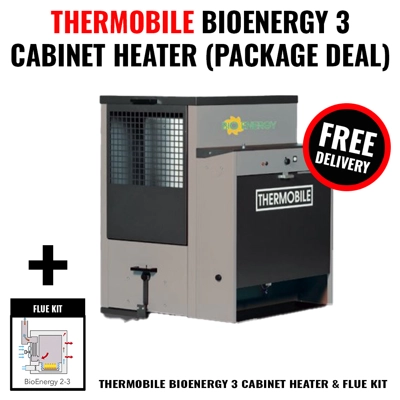

Thermobile Bio Energy 3 Cabinet Heater (Package Deal)

Thermobile Bio Energy 3 Cabinet Heater (Package Deal)

Space heating solution

The Thermobile Bio Energy 3 is a 59kW biofuel cabinet heater, ideal for workshops, garages, warehouses, agricultural buildings and a range of other industrial spaces. It can be fuelled using bio oil, bio diesels and various vegetable oils, rapeseed oil, linseed oil, as well as waste oil and standard diesel or red diesel.

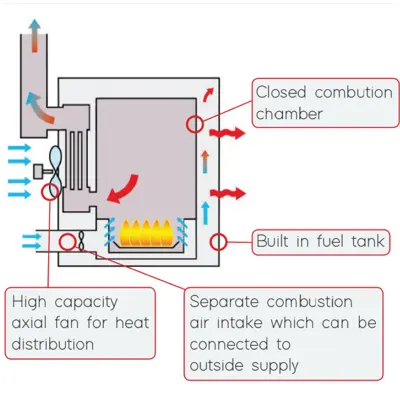

The Thermobile Bio Energy range of cabinet heaters has been developed specifically for the workshop heating market. Full combustion is achieved in a vaporising system and non-burnable residue is retained in the burner pan. The high efficiency of the Bio Energy 3 is achieved by a built-in, large surface heat exchanger, through which all gases pass before entering the flue. A high-capacity axial fan draws air from the workshop over the heat exchanger and combustion chamber and expels warm air into the building, providing a constant recycling of warm air. This fan provides a high airflow of 3000 m3/h.

This heater helps to save on fuel costs, offers low emissions of harmful gases and provides 100% clean heat, as the exhaust fumes produces during combustion are flued out of the back of the unit.

The Bio Energy 3 cabinet heater has a 55-litre fuel tank, an overheat security thermostat, flame failure thermostat and an oil overflow security system fitted as standard. This waste oil burner has a fixed outlet temperature of 50-70 ° C and it has a switch that allows it to operate either at 59kW or 36kW, so you can select the ideal heat output for your space.

Flue Kit Included

Everything you need to heat the space safely and effectively

The Thermobile Flue Kit helps exhaust the fumes produces during combustion out of the space. The flue kit ensures that only safe, fume free warm air is circulated while any potentially harmful fumes and emissions are removed from the space. The flue kit consists of a 5 x 1m flue; 1 x Terminal Pipe; 2 x Wall Bands; 1 x Roof Seal and 1 x Roof Seal Fitting Kit. If your ceiling is higher than 5m, we can supply extra sections of 1m piping.

We can also supply pipes with a 45-degree bend, so you can flue fumes out at an angle, if required for your space. A minimum of 4-5m of flue installation must be internal due to flue operating temperatures and are not suitable for installation with a 90-degree bend. If you require any extra parts or advice, give our sales team a call and we can customise a flue kit to suit your requirements.

Min Capacity BTU/hr: 130,000
Max Capacity BTU/hr: 210,000
Min Fuel Consumption L/hr: 3.8
Max Fuel Consumption L/hr: 6.2
Tank Capacity Litres: 55
Weight Kg: 165
Current A: 2
Flue Connection Ø(mm): 180
Heated Airflow m³/hr: 3000
Max Space Heated cu.ft: 42,000
Width mm: 820
Depth mm: 1150
Height mm: 1280

Great Value Package Deal: Thermobile BioEnergy 2 Cabinet Heater and Flue Kit at a cheaper price than buying them individually.

Clean, Fume-Free Warm Air: Circulates only clean, fume-free warm air, as the fumes produced during combustion are exhausted outside.

Range Of Fuel Options: Can be fuelled by biofuels, such as rapeseed oil and certain vegetable oils, and waste oil. This provides a great cost saving, as you can fuel the heater using oils produced in the course of your everyday business.

Flue Kit Included: 5m flue kit allows exhaust fumes to be vented safely outside.

High Capacity Axial Fan: Draws air in and passes it over the heat exchanger and combustion chamber, and expels warm air into the building, providing a constant flow of warm air, at a max airflow of 3000m³/hr.

Separate Combustion Air Intake: The combustion fan draws in clean air from outside of the building, ensuring that no vapours, dust or oxygen can be sucked in from the workshop floor.

Plug & Play Design: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, a hole for the fresh air intake, and then plugged into a standard 240v plug socket.

Removable 55L Fuel Tank: Provides plenty of fuel to keep the heater running, can be topped up easily when needed and can be removed for cleaning.

240v Power Supply: Can be plugged easily into any standard 230v pocket socket, for convenience and ease of installation.

Overheat Protection: Shuts the heater down automatically if it starts to overheat, preventing an accident.
