Arcotherm Vertigo Cabinet Heater (Package Deal)

Arcotherm Vertigo Cabinet Heater Package Deal

Small space heating solution

The Arcotherm Vertigo Cabinet Heater Package Deal offers everything you need to warm smaller industrial and commercial spaces such as workshops and garages, with free delivery!

The package included the Arcotherm Vertigo 18kW diesel cabinet heater along with a flue kit to vent the exhaust fumes safely outside.

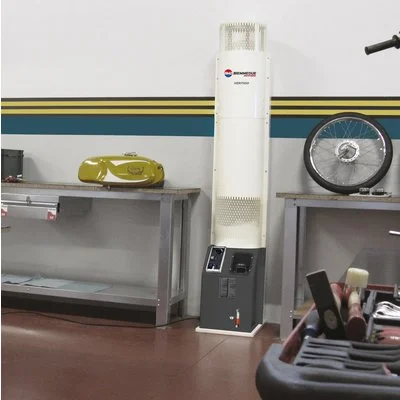

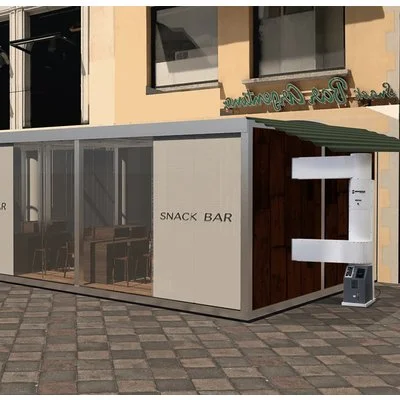

The Arcotherm Vertigo is a compact and easy to use cabinet heater with a self-contained 35 litre diesel fuel tank. Its compact and slim design takes up little space in situ - so it is ideal for heating workshops, warehouses, factories, cafes, shops and halls.

Featuring an integrated oil burner, electronic flame-control and integrated room thermostat (+5°/+30°C), this cabinet heater also boast a helicoidal fan, oil filter, stainless, high efficiency heat exchanger and steel combustion chamber. The Arcotherm Vertigos combustion chamber is pre-heated and automatically post ventilated for maximum efficiency and reliability.

The Vertigo also features retractable wheels, so it can be positioned wherever needed easily, and a summer-winter switch allows the fan to be used alone without heat.

Flue Kit Included

Everything you need to heat the space safely and effectively

The Arcotherm Vertigo Flue Kit allows the fumes products during combustion to be vented out through a roof. The standard flue kit contains 2 x 1mtr flue sections, rain cap and 90-degree elbow. Extra flue sections are also available, allowing you to set up a longer exhaust if needed. The heater also comes with the anti-wind device and horizontal crossing tube. If your ceiling is higher than 5m, we can supply extra sections of 1m piping. We can also supply pipes with a 45-degree bend, so you can flue fumes out at an angle, if required for your space. If you require the extra parts, just give our sales team a call and we can customise a flue kit to suit your requirements.

Dimensions (Width x Depth x Height): 370mm x 553mm x 1996mm
Weight: 70 kg
Rated heat power: 18.2 kW / 15.652 - 62.295 kcal/h - BTU/h
Output heat power: 16.9 kW / 14.556 - 57.934 kcal/h - BTU/h
Heat efficiency: 93%
Air flow: 1750 m3/h
Fuel consumption: 1.44 kg/h
Tank capacity: 35 litres
Electrical power: 230-1-50 V-ph-Hz
Power consumption 230V: 400 watts
Temperature rise: 60°C a 20°C
Flue ø: 120mm

Great Value Package Deal: Arcotherm Vertigo Cabinet Heater and Flue Kit with free delivery!

Slim & Compact Design: Fits easily into a wide range of spaces, including workshops, warehouses and halls.

Plug & Play: Can be installed easily by any tradesperson. It simply needs a hole to be created in a wall for exhaust fumes to be flued outside, and then plugged into a standard plug socket.

100% Clean Warm Air: Circulates only clean, fume-free warm air, as the fumes produced during combustion are held within the heat exchanger and exhausted outside.

Flue Kit Included: A standard 120mm diameter flue kit is included, allowing the flue to be exhausted out through a roof. The standard flue kit contains 2 x 1mtr flue sections, rain cap and 90-degree elbow. You can add this to your order using the tick box above. Extra flue sections are also available, allowing you to set up a longer exhaust if needed. (The heater also comes with the anti-wind device and horizontal crossing tube).

High Quality Design: Features an integrated oil burner, electronic flame-control, helicoidal fan, oil filter, stainless steel high efficiency heat exchanger and steel combustion chamber. The combustion chamber is pre-heated and automatically post ventilated for maximum efficiency and reliability.

Integrated Thermostat: Allows you to set a required temperature within the space from +5° - +30° C. The heater will automatically switch itself on and off as required to maintain the required temperature, saving fuel, energy and money.

35 Litre Fuel Tank: Integrated diesel fuel tank can be filled easily when required.

Retractable Wheels: Integrated wheels make the Vertigo easy to put into position and install.

230v Power Supply: Can be plugged easily into any standard 230v pocket socket, for convenience and ease of installation.

Summer / Winter Switch: Allows the fan to be used alone without heat to provide ventilation during summer months.
