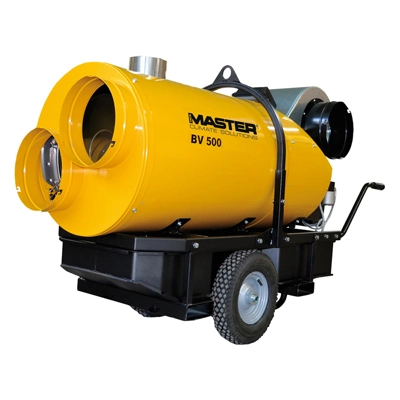

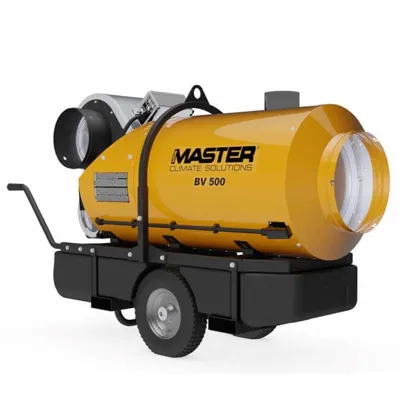

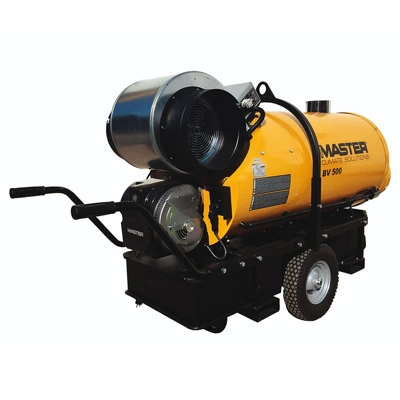

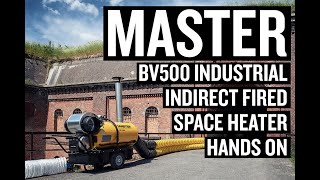

Master BV 500CR Indirect Oil Fired Space Heater - 240v 150kW

Master BV 500CR Indirect Space Heater

Powerful & versatile 150kW heater

The Master BV 500CR is a large, powerful space heater that can quickly and efficiently warm up a variety of spaces. These versatile space heaters are ideally suited to use of construction sites, in workshops and warehouses, for agricultural purposes, and events and public space. Indirect space heaters provide large volumes of clean, dry, hot air directed into the space via ducting while, all waste fumes are exhausted separately. The process makes the BV 500CR safe to use for heating enclosed spaces without full ventilation and public areas like hosting marquees, event tents, exhibitions, and all working environments. Featuring a maximum heating capacity of 150kW and an airflow of 5000 m³/h, the Master BV 500CR is practical, reliable and high-quality indirect space heater for any application.

Robust & High Quality Heater

With separate Riello burner

The Master BV 500CR features a Riello burner - Riello has a century of experience manufacturing exceptional oil burners for industrial, commercial, and domestic applications. The oil burners are designed to ensure the best possible efficiency, performance, and safe working within these space heaters. The Riello burner and the fan motor were designed with noise reduction in mind and have very low noise production. All of the other components, such as the centrifugal fan, quick connectors, heater exchanger, are all of the highest quality to ensure a long lasting service. The stainless steel combustion chamber and robust outer shell make the BV 500CR an incredibly resilient piece of equipment that can withstand the challenges of working conditions.

Unrivalled Usability

Incredibly straightforward to operate

The Master BV 500CR indirect heater is equipped with air pressure and temperature sensors that automatically adjust the airflow output. These features are completely unique for indirect space heaters and allow for maximum comfort levels of any space at all times. There is a socket for easy connection to either digital or analogue thermostats so you can manually set the ideal working temperatures. The control panel and electrical circuit is simple and has an ingress protection level of 67 so is resistant to water and dust in adverse conditions. Although the BV 500CR filters fuel from the 150 litre integrated tank, there is an easy connection to use an external tank with a greater capacity. The large, pneumatic wheels, forklift slots, and the robust trolley on which the space heater is mounted make it extremely portable and easy to move.

Cost Effective Indirect Space Heater

Order online or by phone

The Master BV 500CR is an efficient and practical heating solution that is also suitable for a range of applications. A range of accessories are available for this space heater, including the optional 2-Way warm air outlet, PVC ducting and thermostats. Enquire online or over the phone with our sales team for pricing on these accessories and to add them to your order. You can order your space heater using our online checkout, or you can contact our sales team directly. Our knowledgeable group are available to answer any questions that you have to ensure you purchase with confidence and take away the correct piece of equipment.

Master BV 500CR Heater Specifications:
Heating Power: 150 kW / 512,000 Btu/h / 129,000 kcal/h
Airflow: 5000 m³/h
Total Air Pressure: 770 Pa
Fan: 1 x Centrifugal
Motor Power Fan: 2000/1600 W/rpm
Ductability: : 50m
Air Outlet Diameter: 1 x 41cm or 2 x 31cm
Summer Ventilation: Yes
Remote Thermostat: Analogue or Digital
Flue Tube: 150 mm
Electronic Box Protection: IP44
Fuel Tank Capacity: 150L
Max Fuel Consumption: 14.31 l/h
Standard Fuel Consumption: 12.19 l/h
Rated Current: 14 A
Power Supply: 220-240/1ph/50 V/Hz
Weight: 230kg
Product Size: 2086 x 717 x 1233 mm

100% Clean Warm Air: Air is drawn into the heater from the rear by an internal fan. The air is heated as it passes over a heat exchanger. The combustion by-products remain within the heat exchanger and are exhausted out of the top of the unit, and only clean, fume-free warm air is blown out of the front of the heater.

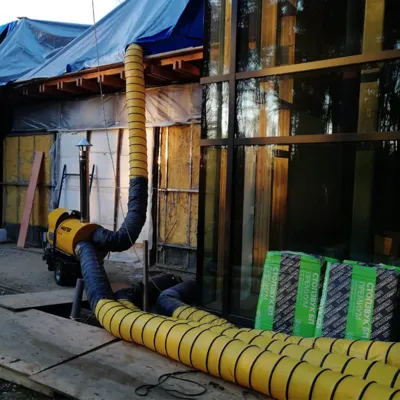

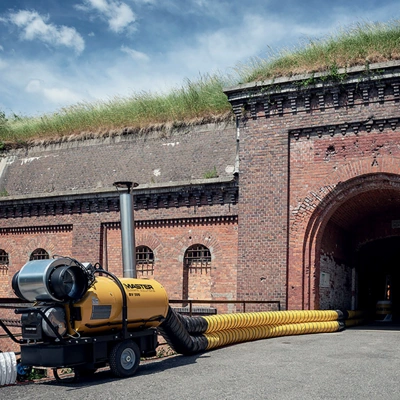

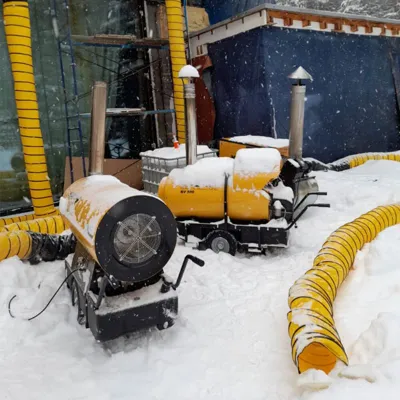

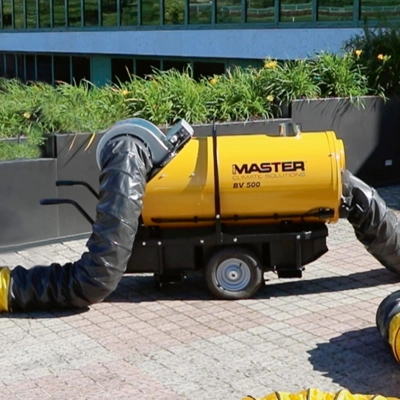

Ducting Connection: Lengths of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat. This makes it ideal for heating a range of large and enclosed areas safely, such as marquees and tents, workshops, warehouses, areas on construction sites and much more.

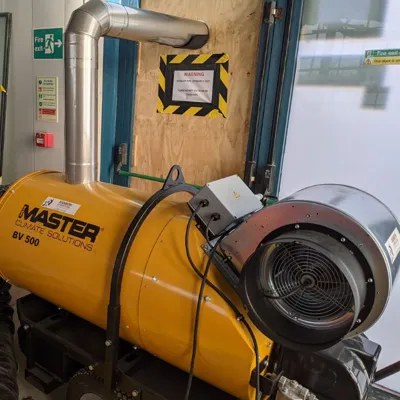

Flue Gas Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

High Pressure Fan: Capable of pushing clean air over long distances, with an air pressure rating of up to 770Pa and an airflow rate of 5000m³/h.

Separate Riello Burner: For best possible efficiency, performance, and safety.

Summer-Winter Switch: Allows the high pressure fan to operate without heating, in order to circulate fresh air for ventilation.

Tough & Robust Heater: Built to perform in challenging areas, including construction sites, workshops, warehouses, agriculture, events and more.

Portable Design: Crane hooks allow the heater to be lifted on and off transport easily. Large wheels allow the heater to be wheeled into position and re-positioned when required.

Thermostat Connectivity: An optional thermostat can be connected to these heaters, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.
