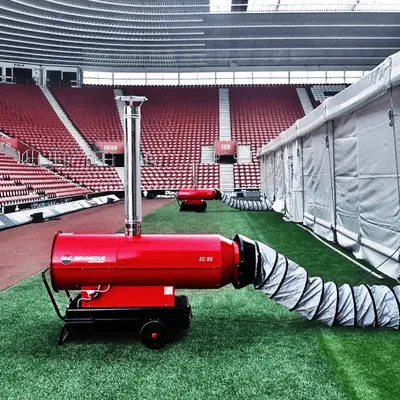

Arcotherm EC55 Indirect Oil Fired Space Heater - Dual Voltage 51kW

Arcotherm EC55 Indirect Oil Fired Space Heater

51kW industrial heater ideal for events, marquees & construction

The Arcotherm EC55 is a 51kW indirect oil fired space heater. It blows only clean, fume-free warm air out of the front of the unit and exhaust fumes are exhausted out of the top of the unit via a flue. Therefore it is a safe and reliable option for heating enclosed spaces with little ventilation, such as halls, workshops and marquees.

This portable space heater is simply wheeled into position outside the space that you need to heat and flexible ducting is used to duct the warm air into the space. This model is one of the most popular popular indirect space heaters in the UK, especially as a marquee heater or for the heating of temporary structures, construction sites, industrial spaces and horticultural & agricultural spaces (for the heating of glasshouses, polytunnels and grain drying applications).

High Quality Design & Build

Robust, reliable & effective heating

This industrial space heater offers a heat output of 51kW, with an airflow rate of 2500m³ / hr. It features an AISI 430 stainless steel combustion chamber, automatic built in oil burner and a Danfoss pump, electronic flame control, safety thermostat and electronic control panel. It is mounted on a set of strong wheels with a handle bar, which allows it to be moved around and placed into position easily. The 65 litre internal fuel tank offers up to 12 hours continuous running time. This heater is a dual voltage machine, so it can be switched to the required voltage easily by removing the switch cover, setting the switch to the required voltage, and fitting the appropriate power cable and plug.

The EC55 provides a reliable, high-performance heating solution. It can be used with an optional thermostat on a 10m cable, to control the temperature within the space you wish to heat. It can also be used in conjunction with up to 7.6m of ducting, to duct the clean warm air from the space heater into the space you wish to heat, and provide heat to specific areas further away from the heater. You can also fit a 2-way splitter to the heater. This allows you to connect two sections of ducting, so you can heat two separate areas at once!

Heavy Duty Version Available

Ideal for the most demanding applications

he Arcotherm EC55 HD model is designed for use in harsher, more demanding environments, such as challenging construction sites, building sites and new property developments. It has a larger 105 litre fuel tank and metal sheathed and hydrocarbon resistant rubber fuel hoses. Operating at a fuel consumption rate of 4.64 litres / hr, this heater will comfortably operate continually for over 22 hours in the manual position. EC55 HD units come complete with a Tigerloop kit, allowing connection to an external tank if needed. You can select the HD version using the drop down menu above.

We now offer recirculation kits that you can add as an additonal extra. These kits allow you vent previously warmed air back into the combustion chamber by attaching an adapter and ducting to the air inlet. Recycling air allows your heater to work more efficiently, reducing fuel consumption and costs by up to 60%.

Heating Package Available

Everything you need. With free delivery!

We also have Arcotherm EC55 indirect diesel heaters available as part of our space heater packages. Our heater packages give you everything you need to heat a space safely and effectively in one convenient, great value bundle deal - including the heater, ducting, thermostat and flue at a great price, with FREE DELIVERY!

Please note: These units are not suitable for use with waste oil.

Heater Dimensions: 1435mm x 555mm x 940mm
Packaged Heater Dimensions: 1310mm x 510mm x 965mm
Product Weight: 81kg
Packaged Weight: 95kg
Heating Capacity: 51kW / 175,000 BTU/hr
Heat Efficiency: 89.5%
Air Flow: 2500 m³/hr
Air Temperature: 66℃
Fuel Consumption: 4.64l/hr
Tank Capacity: 65 litres (HD version = 105 litres)
Electrical Power: 850W
Runtime constant per tank of fuel: 12hrs (HD version = 22 hours)
Hose Length: 3m or 7.6m
Hose Diameter: 356mm

51kW Heat Output: Great output from a mobile space heater, ideal for heating large marquees, events, halls, workshops, warehouses, construction sites & more.

100% Clean Hot Air: As it is an indirect heater, the Arcotherm EC55 blows out 100% clean, fume-free warm air from its warm air outlet, so it is safe for heating indoor spaces.

Flue Exhaust: Combustion by-products are exhausted out of the top of the heater. Sections of flue pipe are available separately, allowing you to safely vent exhaust fumes away from the space.

Tough & Robust Design: Built to perform in challenging areas and in difficult weather.

High Quality Features: Robust hydrocarbon resistant 65 litre polythene fuel tank, AISI 430 stainless steel combustion chamber, automatic built-in oil burner, Danfoss pump, electronic flame control and electronic control panel help to ensure maximum safety and reliable performance.

Overheat Thermostat: Shuts down the heater automatically if it overheats, to prevent accidents.

Dual Voltage Power Supply: Allows you to select the appropriate power supply for the space that you need to heat (240v / 110v).

Portable Design: Large wheels and a handle make the heater very portable. It is easy to transport, position and re-position when required on site.

Ducting Connection: Lengths of ducting can be attached to this heater, in order to direct the clean warm air into the space that you need to heat. 3m and 7.6m lengths of ducting are available separately.

Thermostat Connectivity: An optional thermostat can be connected to this heater, allowing you to set a required temperature within the space. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.

Heavy Duty Model Available: Ideal for the most demanding applications. Featuring a larger 105 litre fuel tank, a metal sheathed and hydrocarbon resistant rubber fuel hoses. Operating at a fuel consumption rate of 4.64 Litres / Hr, it will continually for over 22 hours in the manual position. HD units come complete with a Tigerloop kit, allowing connection to an external tank if needed.

Air Inlet Kit Available: We now offer recirculation kits. The kits allow you vent previously warmed air back into the combustion chamber so your heater can work more efficiently, reducing fuel consumption and costs.
