Friedrich Hazardgard SH20N50AT Hazardous Location Air Conditioner 240v 5.7 kW
- 5.7kW / 19,500 BTU Cooling Capacity
- Hermetically Sealed Refrigeration System
- Max Airflow 722m³/hr
- ATEX Certified For Zone 2
- Removes Up To 76.4 Litres Per Day
- 8-Way Air Direction & Intuitive Dial Control
Friedrich Hazardgard SH20N50AT 5.7kW Hazardous Location Air Conditioner
ATEX & IECEx certified air con ideal for reliable performance in the harshest environments

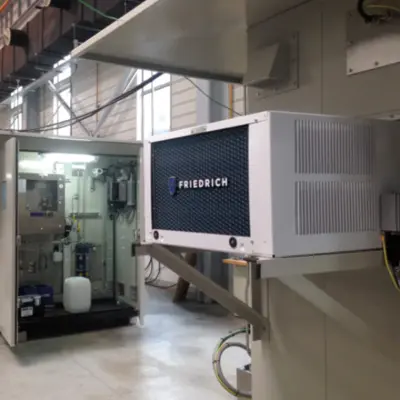

The Hazardgard series provides dependable and secure cooling even in the most extreme environments. The Friedrich Hazardgard SH20N50AT is specially engineered to provide cooling for places such as laboratories, control rooms, living spaces, storage areas, and other enclosed spaces located in hazardous areas. These areas involve the handling or use of specific volatile flammable liquids or gases in sealed containers or systems.
The Friedrich Hazardgard SH20N50AT Hazardous Location Air Conditioner is a powerful air conditioner that has been certified by ATEX for use in explosive gas atmospheres (Gas Group IIC). It is designed with safety in mind and is suitable for use in Zone 2. With a cooling capacity of 5.7kW and a maximum airflow of 722m³/hr, this Hazardgard air conditioner provides a substantial amount of cooling power, making it ideal for challenging and potentially explosive environments where temperatures can reach extreme levels.
Applications include but are not limited to the following:
- Offshore oil rigs, on-shore oil company offices and refineries
- Petrochemical sites
- Propane fill-up stations
- Paint and varnish storage or processing plants
- Grain alcohol processors or storage sites
- Plant areas using strong solvents or chemicals
- Munitions plants or armories
- PVC or plastics plants and processing points
- Recycling plants
- Furniture refinishing workshops
- Office complexes where methane is a by-product
- Hazardous materials storage
The SH20N50AT air conditioner is equipped with a powder-coated 22-gauge, G60 steel cabinet and Diamonblue coated coils to enhance its resistance against corrosion. This protective coating for the cabinet can withstand years of heavy-duty use in highly challenging environments. The Diamonblue Advanced Corrosion Protection, on the other hand, exhibits excellent adhesion properties, minimal thermal degradation and exceptional chemical resistance. These features ensure that the air conditioner remains durable and delivers reliable performance even in the most demanding conditions.
The unit offers exceptional durability and reliability. It features various enclosures that provide additional protection. The Friedrich air conditioner includes a commercial-grade enclosed fan motor with a hermetically sealed overload feature, ensuring arc-free operation. It also has a steel enclosure for solid-state relays responsible for controlling the compressor and fan operation. Moreover, there is a sealed control enclosure for the thermostat and on-off control, enhancing resistance to corrosion.
The Hazardgard air conditioner is designed to be hermetically and environmentally sealed. It features a reciprocating compressor that is tightly sealed, making it suitable for operation in challenging environments with extreme temperatures and high humidity levels. The hermetically sealed compressor effectively prevents refrigerant leakage and safeguards the system from external contaminants. The unit also includes an environmentally sealed power switch and thermostat with gold plated contacts, offering another layer of excellent corrosion resistance.
Alongside the steel cabinet, the Friedrich air con features a fan shaft made of stainless steel that contributes to a durable steel build. It is equipped with industrial electrical cable harnesses and cable glands, specifically designed for rugged usage. The unit comes with a permanent split capacitor motor for reliable performance. It is directly wired to a 15-amp circuit with a time-delay fuse, allowing it to handle current surges without tripping the breaker.
The air conditioner is designed to function effectively in a wide range of temperatures, spanning from 7°C to 55°C, allowing it to be suitable for various environments and climates. It incorporates a hot gas bypass feature, enabling cooling operation even in low ambient temperatures as low as 7ºC without the risk of freezing. With a T4 temperature rating, the surface temperatures of the unit will not exceed 135°C, which is significantly below the auto-ignition temperature of most materials, ensuring enhanced safety and preventing potential hazards.
The 8-Way air direction control of the air conditioner enables optimal airflow and even distribution of temperature throughout any room. With intuitive dial control and a user-friendly interface, the unit offers straightforward operation and convenient adjustments. Moreover, the ATEX certified air conditioner has the capability to extract up to 76.4L of moisture per day. This high moisture removal capacity creates a comfortable environment in potentially explosive atmospheres, reducing the risk of hazardous conditions and providing protection for sensitive electrical components.
Model: SH20N50AT
Certification:
UL Listed for Class 1, Division 2, Groups A,B,C & D
IECEx Certified, Ex nA nC II C T4 Gc
ATEX Certified, II 3 G Ex nA nC IIC T4 Gc
CE
Cooling Capacity (Btu/Hr.): 19500/19100
Volts Rated: 240-220-50
Cooling Amps: 9.8/10.3
Cooling Watts: 2167/2156
Energy Efficiency Ratio EER: 9.0/9.0
Moisture Removal Pints/ HR: 5.6/5.5
Air Direction Controls: 8-way
Air Circulation (CFM / M³/H): 425 / 722
Refrigerant: R-410A
ATEX Certified: The Friedrich Hazardgard SH20N50AT Hazardous Location Air Conditioner is a high-power air conditioner intended for use in explosive gas atmospheres (Gas Group IIC). It is safely constructed and suitable for use in Zone 2.
5.7kW Cooling Capacity: The Hazardgard air conditioner produces an impressive amount of cooling power for harsh and hazardous environments where temperatures can reach extreme levels. Applications include, but are not limited to oil rigs, petrochemical sites, paint and varnish storage and plastics plants.
Powder-Coating For Corrosion Resistance: The SH20N50AT air conditioner comes with a powder-coated 22-gauge, G60 steel air conditioner cabinet and Diamonblue coated coils for corrosion protection and to endure years of heavy-duty use in extremely demanding environments.
Enclosures For Added Protection: The Friedrich unit boasts a commercial grade enclosed fan motor, a steel enclosure for solid-state relays and a sealed control enclosure for the thermostat and on-off control. Ideal to cool laboratories, control rooms, living quarters, storage areas and other enclosures situated in hazardous locations.
Hermetically & Environmentally Sealed: The SH20N50AT has a hermetically sealed reciprocating compressor, which is suitable for use in harsh environments with extreme temperatures and humidity levels. There are also an environmentally sealed power switch and gold plated contacts in the thermostat for corrosion resistance.
Robust Steel Construction: In addition to the steel cabinet, the Hazardgard air con also comes with a stainless steel fan shaft. There are also industrial electrical cable harnesses and cable glands, which are designed for hard use.
8-Way Air Direction: The multidirectional air direction control feature allows for optimal air flow and temperature distribution in any room. This ensures that the desired temperature is achieved quickly and efficiently, saving energy and reducing costs.
Amazing Range Of Operating Temperature: The unit can operate in temperatures ranging from 7°C to 55°C, making it suitable for use in a variety of environments and climates. With a temperature rating of T4, the unit surface temperatures will not rise above 135°C, which is well below the auto-ignition temperature of most materials.
Easy-To-Use: It boasts intuitive dial control and a user-friendly interface, allowing for simple operation and easy adjustments. It makes on-site operations much easier.
Extracts Up To 76.4L/Day: The ATEX certified air conditioner can remove a large amount of moisture per day, creating a comfortable environment in potentially explosive atmospheres. It effectively reduces the risk of hazardous conditions, safeguards sensitive electrical components and enhances cooling performance.
