Calorex DH 600BY High Capacity Industrial Dehumidifier - 3 Phase 600 Litres

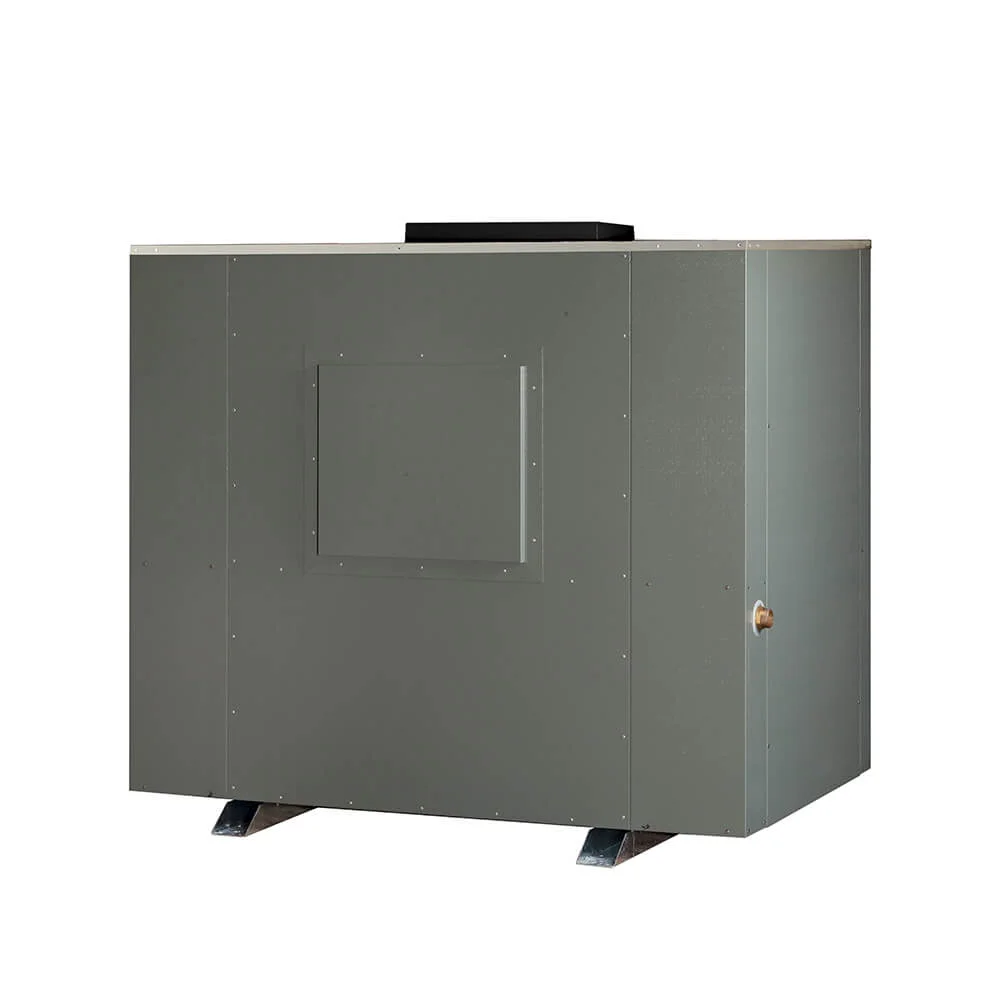

Calorex DH600 Industrial Dehumidifier

High capacity floor standing dehumidifier for large industrial spaces

The Calorex DH600 is a huge industrial high-capacity dehumidifier, capable of extracting up to 600 litres of moisture from the air per day. It is designed for controlling humidity levels in large industrial spaces, such as warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities and more. It is perfect for controlling the humidity level within these spaces in order to prevent moisture damage to stored items, equipment and machinery within the space, prevent damp, mould, rot and other building structure problems, and to assist in drying out during various food production processes.

This Calorex industrial floor-standing dehumidifier operates on 400v 3 phase power supply. It draws air in using a fan and and passes it over a set of refrigerated coils. The moisture in the air condenses into liquid as it comes into contact with the cold surface, removing it from the air. The dry air is then passed through a hot condenser before it is expelled back out into the space. The moisture removed from the air flows out of the unit through a 1½ inch BSPM condensate drain. A hose can be connected to this drain and fed outside through a wall.

Effective Industrial Humidity Control

Fully automatic operation

The Calorex DH600 floor standing compressor dehumidifier is a completely self-contained unit with fully automatic operation.

An integrated humidistat allows you to select a required humidity level within the space and it will switch the dehumidifier on and off automatically to maintain the set humidity level, preventing moisture problems, saving energy and adding convenience.

A range of optional accessories are available for the DH600 dehumidifier, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. A turning hood is available for the DH600, which sits on top of the unit and allows the direction of the airflow to be altered. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas in spaces such as factories, warehouses and food production facilities.

Tough Industrial Design

Suitable for warehouses, factories, storage facilties & more

The Calorex DH 600BY large industrial dehumidifier is a tough and robust unit, designed to withstand the demands of busy industrial environments. It has a plastisol coated galvanised steel cabinet to protect inner components and resist corrosion, and a polyester coated evaporator and condenser. It features F-Gas compliant R407c refrigerant. The unit is capable of huge airflows of 9000m3h and the reverse cycle defrost function automatically melts frost and ice build-up on the refrigerated coils, for efficient and reliable operation even in very cold temperatures - giving this dehumidifier a vast operating temperature range of -15°C - +35°C.

Please Note: This high capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.

Calorex DH 600BY Industrial Dehumidifier Specifications
Capacity (30°C/60% RH): 600L/24h
Air flow: 9000 m3h
Operating temperature range: -15°C - +35°C
Heat recovered to air @ 30°C/60% RH: 29.7kW
External static pressure: 90Pa
Sound pressure level @ 3m: 58dB(A)
Refrigerant: R407c
Power supply: 400v/3ph/50Hz
Nominal power consumption: 10kW
FLA: 26A
Maximum supply fuse: 35A
LRA (compressor start): 135A
LRA (compressor soft-start): 55A
Product size (w x d x h): 1730 x 1250 x 1600 mm
Weight: 497kg
Condensate drain size (flexible plastic hose): 1½ Inch BSPM

Removes Up To 600L Per Day: Extremely high capacity industrial dehumidifier, suitable for for removing large volumes of moisture from the air in in big industrial spaces, including warehouses, factories, industrial units, electrical sub-stations, food and drink production plants, museums, storage facilities and more.

Fully Automatic Operation: High quality, reliable industrial dehumidifier. Once installed, it will operate effectively to remove excess moisture, ensuring the integrity of stored items, preventing damage to equipment and machinery caused by moisture, preventing damp, mould and rot, and assisting the drying out process during food and confectionary production.

Plastisol Coated Galvanised Steel Cabinet: Tough and robust corrosion-resistant outer casing. Provides protection for inner components in busy industrial areas.

Polyester Coated Evaporator & Condenser: High quality components ensuring effective and reliable moisture extraction.

F-Gas Compliant Refrigerant: Uses R407a refrigerant - efficient and meets 2020 EU regulations.

1½ Inch BSPM Condensate Drain: A hose can be connected to this drain outlet and fed out through a wall, for continuous condensate drainage.

9000m3h Airflow. The Calorex DH600 floor standing dehumidifier has a huge airflow - capable of dealing with large volumes of air, making it suitable for large industrial premises.

Integrated Humidistat: Allows a humidity level to be set and the dehumidifier will switch itself on and off as required in order to maintain the set humidity level in the space, preventing moisture problems, saving energy and adding convenience.

Reverse Cycle Defrost: Automatically melts frost and ice build-up on the refrigerated coils for efficient and reliable operation even in very low temperatures - making the Calorex DH600 industrial dehumidifier capable of operating effectively at temperatures from -15°C - +35°C.

Optional Accessories Available: A range of optional accessories are available for the Calorex DH600 dehumidifier, including an air filter kit, a condensate pump, external condenser unit and compressor soft start. A turning hood is available, which sits on top of the unit and allows the direction of the airflow to be altered. An air inlet duct kit is available, which allows the dehumidifier to be used with a ducting system, to draw air in over large areas in spaces such as factories, warehouses and food production facilities.

Please Note: This high capacity dehumidifier is made to order in the UK - there is a lead time of 6-8 weeks.
