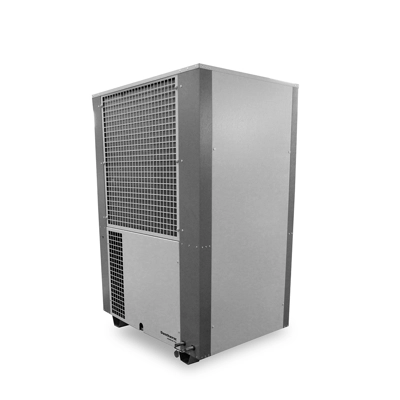

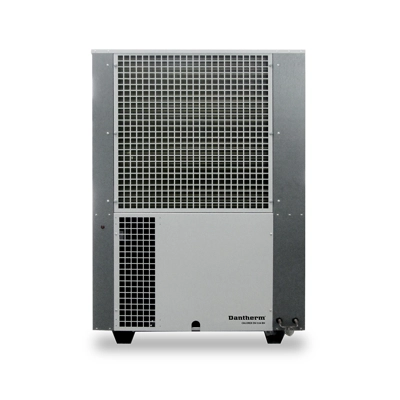

Calorex DH 334 High-Temperature Process Dryer 3 Phase 408 Litres

Calorex DH 334 High-Temperature Process Dryer

Floor-standing dehumidifier with excellent capacity & wide operating temperature range

The Calorex DH 334 is a powerful process dryer that extracts up to 408 litres of water per day, making it ideal for use in multiple industrial applications. It's perfect for general industry and production, confectionery, food & beverage, storage, warehousing, preservation and archives. The DH 334 dehumidifier is the best option for dehumidifying large industrial spaces with maximum efficiency. It features a massive airflow of 5,800m³/h, so you can be confident that it will do an excellent job as an industrial drying solution. Its high capacity prevents the growth of mould and other harmful microorganisms by keeping the air dry and at the appropriate moisture level for your products. The DH 334 process dryer is a great choice for industrial production sites, as it only operates at a sound level of 69dB. It promises low maintenance and reduced operational costs and is cost effective in removing water quickly.

As a high-temperature process dryer, the Calorex DH 334 has a wide range of effective operating temperatures. It is a versatile choice for a variety of applications running efficiently from 30°C to 70°C. Utilising the R134a refrigerant gas, it can operate at higher temperatures than other market-standard dryers. The dryer's exceptional performance at cold temperatures enables drying to occur at lower temperatures than traditional heating methods, minimising the potential risks of heat damage and enhancing the quality of the end products. The DH 334 process dryer is then an ideal solution for drying and storing temperature-sensitive materials such as pharmaceuticals, electronics and in particular food and confectionary products. The taste and textures of food are extremely sensitive to temperature, and this Calorex industrial duhumidifier is your key to consistent production.

The Calorex DH 334 dehumidifier consumes less energy since it allows drying to occur at lower temperatures than traditional heating methods. In addition, it recovers latent energy released during dehumidification and uses it to heat air, which also decreases the overall power consumption while facilitates the drying process. Moreover, the process dryer is environmentally friendly apart from being highly energy efficient. It uses the R134a refrigerant gas, which has a lower ozone depletion potential and global warming potential (GWP) compared to other refrigerants. This makes it a great option for companies looking to reduce their carbon footprint and contribute to sustainable practice.

Operating temperature range: 30-70 °C
Dehumidification @ 50°C/60% RH: 17 L/24h
Heat to air via dehumidification: 10 kW
Heat to air via resistance heaters and dehumidification: 18.5 kW
Air flow: 5,800 m3/h
External static pressure: 0 Pa
Sound pressure level @ 3m: 69 dB(A)
Power supply: 400/3ph/50 V/Hz
Nominal power consumption: 14.1 kW
Minimum supply capacity: 29 A
Maximum supply fuse: 35 A
Heater rating: 9 kW
FLA: 12 A
Nominal power consumed: 4.9 kW
LRA: 72 A
RLA: 12 A
Nominal running current: 9 A
Product size (w x d x h): 985x700x1476 mm
Weight: 170 kg
Condensate drain size (flexible plastic hose): 1½ BSPM inch
Refrigerant: R134a
R134a gas weight/CO2 equivalent: 6/8.58 kg/t

Extracts Up to 408L/Day: The Calorex DH 334 is a heavy-duty process dryer that offers a stunning moisture removal capacity 408 litres per day. Perfect For use in production of confectionery, food & beverage and storage & warehousing.

Massive Airflow: The DH 334 dehumidifier offers a maximum airflow of 5,800m³/h, making it an ideal choice for large industrial spaces that require efficient dehumidification. Its high capacity ensures that the air remains dry and free from moisture, preventing the growth of mould and other harmful microorganisms.

Quiet Operation: Operating at a fair sound level of 69dB, the dehumidifier is a great addition to all industrial production sites.

Wide Operating Temperature Range: The unit operates with a broad effective temperature range of 30°C to 70°C, which makes it a versatile dryer in an extensive range of applications.

Operation at Higher Temperatures: The dryer can operate at higher temperatures than other standard dryers on the market with the use of R134a refrigerant gas.

Excellent performance at low temperatures: The process dryer allows drying to take place at lower temperatures than conventional heating methods, which minimises the potential risks of heat damage and improves the quality of your products.

Environmentally friendly: The refrigerant gas R134a is a hydrofluorocarbon (HFC) that has a lower ozone depletion potential and global warming potential (GWP) compared to other refrigerants.

Recovery Of Latent Energy: The Calorex DH 334 reclaims the latent energy released during dehumidification and uses it to heat air, which reduces the overall power consumption.
