Broughton Mighty Heat FF80 Industrial Heater - 400V Three Phase 80kW

Mighty Heat for a Mighty Price

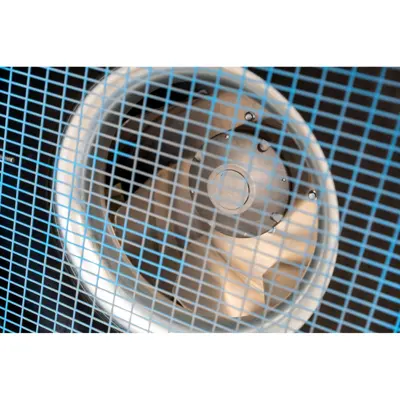

Presenting the newest addition to our Mighty Heat series – the FF80, an 80kW heater that stands out in its category, delivering substantial volumes of warm air. Crafted in the UK, the FF80 is purpose-built to endure the challenges of industrial use. Featuring a robust all-steel chassis and a potent backward-curved impeller, this industrial heater provides 80kW of dry, safe, and fume-free heat at an impressive rate of up to 6000m³/hr, with a pressure drop of 600 Pa.

With its remarkable performance, the FF80 can efficiently duct warm air over significant distances, enabling it to supply heat even when strategically positioned remotely. The user-friendly touchscreen offers complete electronic control, allowing easy adjustment of airflow or delta T to meet specific application requirements. Users can seamlessly switch between the chassis-mounted thermostat and a remote thermostat. Additionally, a range of over-temperature features guarantees the unit's safe operation.

The onboard computer is designed to alert users in the event of an incorrect shutdown procedure, a valuable feature, especially in the context of units being part of a hire fleet. Designed for easy mobility, the FF80 is equipped with large, locking castors, a welded steel chassis with lifting eyes and forklift pockets, and comes standard with a 600mm spigot.

Heat Capacity: 80kW

Power Supply: 125 Amp 3 Phase 415v

Maximum Running Current: 119.5A

Airflow Max: 6000m3/hr

Weight: 245 kg

Noise level at 3m: 76 dB (A)

IP Rating: IP20

Max Operating Temperature: 40C +/- 3C

Max Ducting Length (600mm Duct): 100m

Temperature rise at 19C ambient: 53C

Dimensions (H/W/D): 1270/858/1700mm

Touch Screen Controls: Intuitive and easy-to-use touch screen controls built into the unit. Making it easier for you to use the unit without reading a pesky manual!

Plenty of Power for Big Spaces: Thanks to the up to 6000m3/hr airflow, this heater can easily heat big spaces like workshops!

Robust and Reliable: Built with all steel construction, you can rest assured that this unit will last a while and any bumps or scapes won't stop it!

Can be Positioned Remotely: Thanks to the high performance of this unit, this can be positioned up to 100m away and still provide a great source of heat!
