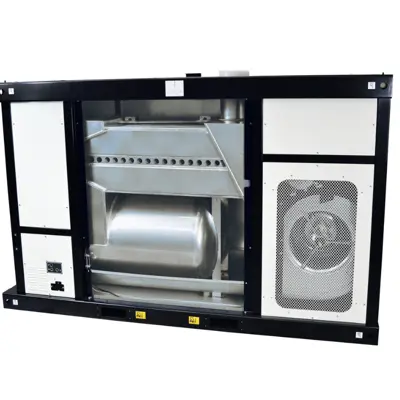

Arcotherm Scudo 235 T Indirect Space Heater 235kW

Arcotherm Scudo Base Framed Indirect Combustion Space Heaters

A Large Industrial Heating System

These units offer very silent noise levels of 69 db at 2 meters. Each produces high outputs and performances which ensure high air delivery and static pressure (500 Pa). This ensures a uniform diffusion through long distances of warm air through canals or ducts. The fan has been anchored to a weight-bearing structure through sturdy beams and fastening brackets. Each comes with an adjustable shutter for fresh air restoration. These units are also fitted with a rear electric control panel (IP65) situated at the rear of the machine to avoid contact with dust, water, and snow. These are supplied with a sturdy metal cover which can also be used to stow tools and documents. Each also has a front service control panel (IP 65) situated at the front of the machine, inside the burner cover casing. This has been implemented to avoid contact with dust, water, and snow, for easier maintenance.

Rated Heat Power:
Wattage: 235
BTU: 801853BTU
Airflow: 20.000m3/h
Heat Efficiency: 96.50%

Base Adapted: For moving with a forklift.

Front Protective Casing: With lockable door for burner cover.

Rear Protective Casing: For the centrifugal fan with air intake/aspiration side joint.

Protective Base: For the upper part with lifting/fastening hooks.

Central Lifting Hook: These units come with a hook attachment to make moving the unit to the desired location easier.

Removable Panels: For internal washing with reinforcement cross folds to ensure more rigidity and strength.

New Heat Exchanger: The new heat exchanger combined with the new higher-performance fans, achieves a thermal output of 96%.

Fan Protection: These units have an IP55 rating.
