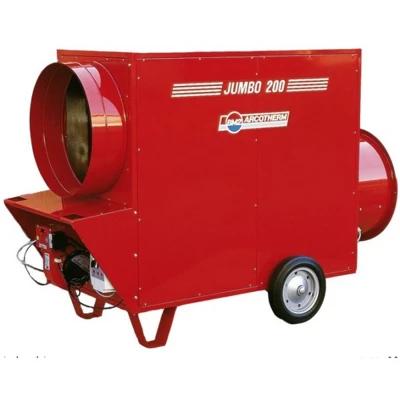

Arcotherm Jumbo 200 Indirect Oil Fired Heater - 230v 198kW

The largest indirect heater in the Arcotherm range

Jumbo by name. Jumbo by nature.

The Arcotherm Jumbo 200 is a 198kw industrial space heater, designed for industrial and commercial applications such as heating large halls, warehouses, marquees, events and more.

As the Jumbo 200 is an indirect diesel space heater, it allows only clean, fume-free warm air into the space that you need to heat. The heater is placed outside the area you need to heat and the warm air is ducted into the space, from the heater. Meanwhile, any fumes produced during the diesel combustion process are expelled outside via the Jumbo heater’s flue exhaust. Therefore these heaters are safe to use for heating enclosed environments with little ventilation.

Arcotherm Jumbo space heaters have become particularly popular in the events and marquee hire industries, for heating large parties and events.

High quality design

Made by the experts.

Arcotherm are experts in space heating. Using their technical expertise and years of experience, they manufacture some of the best, most trusted and reliable space heaters on the market.

The Jumbo 200 indirect diesel space heater is no exception to this. With its tough steel frame, double skinned body for thermo-acoustic insulation and safe low surface temperature, stainless steel combustion chamber and high temperature resistant heat exchanger, the reliability, safety and heating power of the Jumbo 200 diesel heater is assured.

The Arcotherm Jumbo 200 heater can also be connected to a thermostat for complete temperature control, and a fan only option can be engaged to provide ambient air when required.

Huge heating performance

A powerful indirect diesel heater.

Arcotherm Jumbo 200 indirect diesel space heaters have a heating capacity of 198kw and an airflow rate of 12500m³ / hr. With this huge heating performance, its robust construction and high quality build, the Jumbo 200 diesel space heater is an extremely powerful, high-performance industrial heater for large spaces.

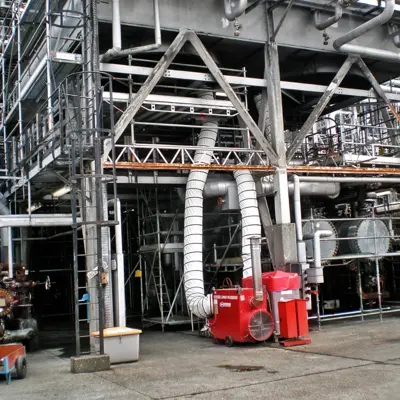

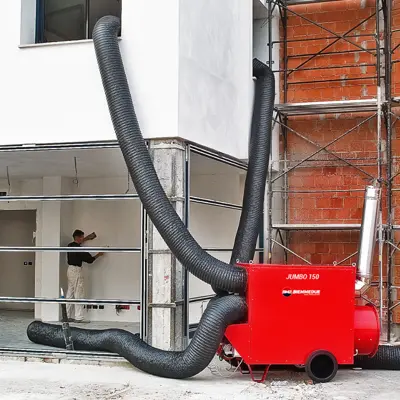

Jumbo 200 diesel space heaters can be used with up to 160m of ducting, to duct the warm air into the space and to provide heat to specific areas further away from the heater. You can also fit a 2-way or 4-way splitter to these Jumbo 200 space heaters, which allow you to connect multiple sections of ducting to the one heater - so you can heat separate areas all at once!

Please note: Arcotherm Jumbo heaters do not have an internal fuel tank – you will need to connect the heater to a remote fuel source.

Heating Capacity = 198kW / 675000Btu/hr
Weight = 360kg
H x W x D = 1500 x 985 x 2235mm
Hose Length = up to 160m
Hose Diameter = 700mm
Tank Capacity = Not applicable
Consumption Rate = 18.6 l/hr
Airflow = 12500m³ / hr

100% Clean Heat: The Jumbo 200 powerfully distributes clean, dry and fume-free warm air from its stainless-steel combustion chamber, offering an ideal solution for heating large halls, marquees and other temporary structures.

Flue Exhaust System: Any fumes produced during the diesel combustion process are expelled outside via the flue exhaust, ensuring the heater is safe for use in enclosed, poorly ventilated spaces.

Robust & Resilient Design: The heater is reinforced by a tough steel frame, thermo-acoustic insulation, safe low surface temperature and high temperature-resistant heat exchanger.

Portable Design: The Jumbo 200 is conveniently fitted onto a sturdy wheel-mount, for swift and safe transportation from site to site.

Fan-Only Mode: Operate the Jumbo 200 to provide fan-powered ambient air without activating any heating elements.

Thermostat Connectivity: This heater can be connected with an optional thermostat for complete temperature control.

Ducting Connection: Warm air can be ducted over long distances with additional flue for a wide-reaching heating solution. Plus, you can fit a 2-way or 4-way splitter to enable the connection of multiple section of ducting to the single heater - warming separate spaces at once!

External Fuel Tank Required: Arcotherm Jumbo heaters do not have an internal fuel tank – you will need to connect the heater to a remote fuel source (Diesel).
