Arcotherm BH Suspended Indirect Fired Space Heaters 44kW - 89kW

Arcotherm BH Fired Space Heaters

Suspended Indirect Heating System

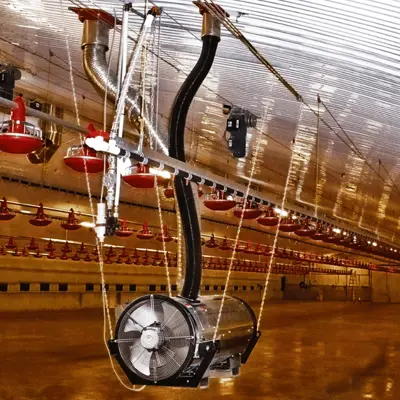

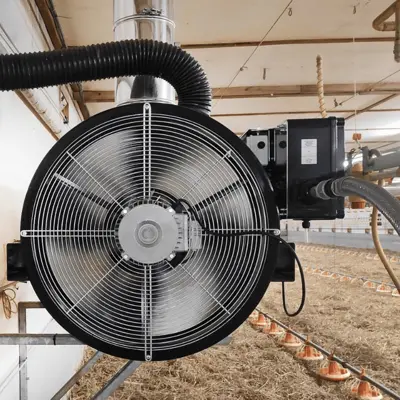

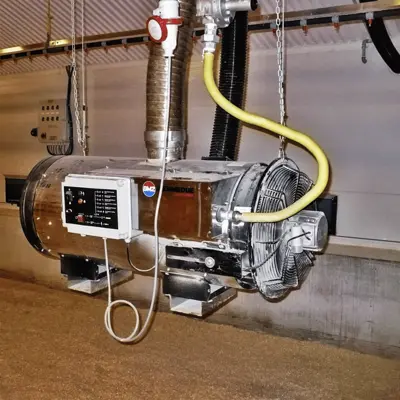

The Arcotherm BH Natural Gas, an indirect space heater has mainly been targeted to the agricultural and horticultural markets, but especially in the pig and poultry businesses for the hygiene element of the BH range. Use in piggeries, poultry sheds, greenhouses, livestock sheds, stables, etc. The heater pushes out warm clean air and harmful exhaust fumes are expelled through the exhaust flues. Arcotherm famous build quality offers a high-grade AISI 430 stainless steel body and combustion chamber, and an automatic burner with a pre-warming and after-use cooling cycle. Can be connected to a separate thermostat, humidistat, or timer. A tipping fan for easy burner access for routine maintenance and replacement is also supplied.

BH 50 Oil
Rated Heat Power: 49.8kW
Wattage: 44.4kW
BTU: 151499BTU
Airflow: 4.100m3/h
Heat Efficiency: 89%
BH 50 Gas
Rated Heat Power: 50kW
Wattage: 45kW
BTU: 153546BTU
Airflow: 4.100m3/h
Heat Efficiency: 90%
BH 100 Oil
Rated Heat Power: 99kW
Wattage: 89kW
BTU: 303680BTU
Airflow: 7.50m3/h
Heat Efficiency: 90%
BH 100 Gas
Rated Heat Power: 94kW
Wattage: 85kW
BTU: 290032BTU
Airflow: 7.50m3/h
Heat Efficiency: 90%

Stainless Steel Body: Each comes with a high-grade AISI 430 stainless steel body and combustion chamber.

Fuel Options: Can be operated using automatic oil or natural / LPG gas separate burner.

Connectable: To a thermostat, humidistat, or timer as well as a climate computer.

Tipping Fan: For easy burner maintenance or replacement.

Diverse Control: These units come with an electronic control flame box, a FAN automatic thermostat for hot air blowing, with a combustion chamber pre-warming and after the cooling cycle, air & gas safety pressure switches, and a LIMIT automatic thermostat to control the burner.

Safety OVERHEATING: For manual reset thermostat.

Summer-Winter Switch: For use as a fan.

IP65: Comes with IP65 electric board grade protection.

Gas Train: Gas safety box with gas filter, pressure reducer, safety solenoid valve, slow action work solenoid valve, stabilizer, and gas pressure connections.

Snorkel Connection Adapter: To allow outside clean combustion air feed.
