Water Damage Insulation Drying Kit – 70m²

Dantherm
  • Negative pressure insulation drying kit
  • Designed for screed floors up to 70m²
  • Integrated Qube+ insulation drying system
  • Compact TTK Qube condenser dehumidifier
  • IC 200 thermal imaging camera included
  • Includes accredited 2-Day restoration course
  • FREE DELIVERY

Description

Water Damage Insulation Drying Kit – 70m²

Professional Structural Drying

We have put this kit together for professionals seeking to manage the escape of water. We have carefully selected these tools to deliver negative pressure for areas up to 70m², to provide data driven documentation, and to limit the effects of secondary damage.

Removing Trapped Moisture

This system uses negative pressure to draw trapped moisture from within screed and cavities. This reduces the risk of odour, growth, degradation, and helps to speed up the drying process.

Superior Drying with Trotec Qube+

We recommend the Trotec Qube+ for insulation drying. It comes with a water separator and a 4 stage filter system to manage indoor air quality. It’s compact and is fitted with a height adjustable handle to help you move it around the job site.

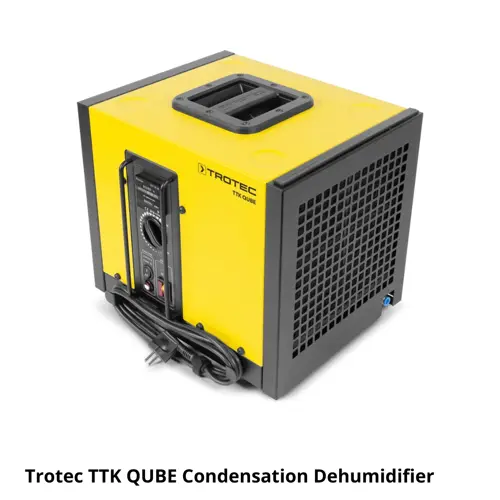

Trotec TTK Qube Performance

This unit is a powerful condenser dehumidifier with a rotary compressor. It is capable of extracting up to 20 litres of moisture within a 24 hour period, and its compact design makes it portable and stackable.

Precision Inspection

The Trotec IC 200 is a radiometric thermal imaging camera used to identify moisture spots. It features DuoVision technology and analysis tools to provide clients with the necessary documentation for insurance claims.

Dantherm Solutions Academy

Every kit includes a 2-day water damage restoration course at Dantherm’s Solutions Academy. This training simulates real restoration environments and provides instruction on the use of your kit.


Specification

Combined Specifications

Product Trotec QUBE+ Insulation Dryer
Suitable Surface Area 25 – 85 m²
Max. Low Pressure 220 mbar
Air Volume (Free Blowing) 250 m³/h
HiDry Flow Rate (Suction) 90 – 180 m³/h
Max. Motor Power 1.2 kW
Power Supply 230 V / 1 ph / 50 Hz
Nominal Current 6.7 A
Fuse 16 A
Collection Container 10 L
Sound Level @ 3 m 48 – 62 dB(A)
Hose Connections 3 x Ø38 mm
Dimensions 490 x 500 x 735 mm
Weight 25.2 kg
Product Trotec TTK QUBE Dehumidifier
Dehumidification (30°C / 80% RH) 16 L/24h
Maximum Dehumidification 20 L/24h
Air Flow Rate 283 m³/h
Operating Temperature Range 5 – 35°C
Max. Humidity Range 90% RH
Power Supply 220 – 240 V / 1 ph / 50 Hz
Power Input 1.6 kW
Nominal Current 1.6 A
Refrigerant R-1234yf (140 g)
Defrosting Hot Gas
Sound Level 53 dB(A) / 50 dB(A) (Comfort Mode)
Dimensions 315 x 367 x 340 mm
Weight 16 kg
Product Trotec IC 200 Thermal Imaging Camera
Temperature Range -20°C to 550°C
Accuracy ±2°C or ±2% (10°C to 35°C ambient)
Detector Type FPA Uncooled Microbolometer
Thermal Sensitivity <0.1°C @ 30°C
Refresh Rate 25 Hz
Field of View 56° x 42°
Minimum Focus Distance 0.5 m
Display 3.5" Colour LCD Touchscreen
Storage 3.4GB Internal (+8GB microSD)
Interfaces USB-C, Composite Video, WiFi
Power Supply Li-ion Battery / 5V DC
Operating Time Up to 4 Hours
Protection Class IP54
Dimensions 96 x 77 x 224 mm
Weight 0.5 kg

What's In The Box

  • 1 x Trotec QUBE+ Negative Pressure Insulation Drying System
  • 1 x Manifold System

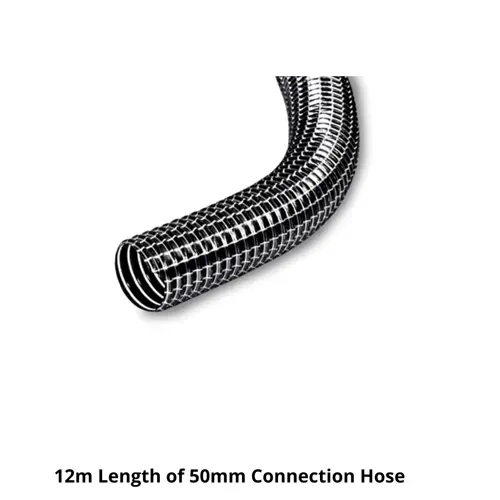

  • 1 x 12m Length of 50mm Connection Hose
  • 1 x 15m Length of 38mm Connection Hose
  • 1 x Trotec TTK QUBE Condensation Dehumidifier
  • 1 x Trotec IC 200 Thermal Imaging Camera
  • 1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
