AERCUBE Insulation Drying System - ASE 300 & IC 200
- Aerial ASE 300 Desiccant Dehumidifier
- AERCUBE Modular Manifold System
- Vacuum & Overpressure Drying
- Coverage Up To 70m² Insulated Screed
- Trotec IC 200 Thermal Imaging Camera
- Accredited 2-Day Restoration Course
AERCUBE Insulation Drying System – ASE 300 & IC 200
Advanced Structural Drying
We have put together the AERCUBE Insulation Drying System for contractors looking for an insulation drying solution. By integrating desiccant dehumidification with air distribution, we are providing a complete package for even the most demanding projects. This package can handle up to 70m² of floor space and is suitable for structural drying and insulated screed
The Power of AERCUBE

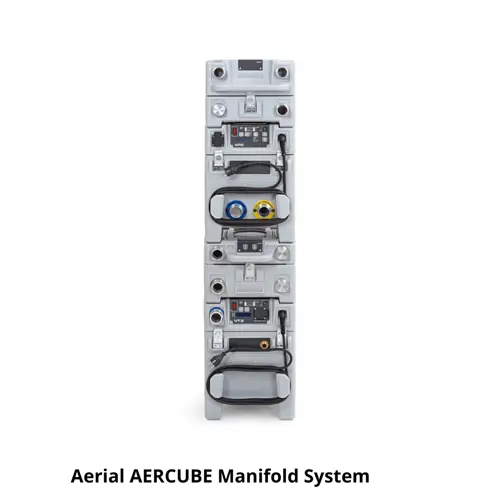

We have built this system around the Aerial ASE 300. This dehumidifier is suitable for unheated buildings and cold winter conditions. The desiccant technology is used for precise vapour pressure differential. It is used with the modular AERCUBE manifold system to allow for both vacuum drying and overpressure drying for any sub-floor condition.
Diagnostic Precision with Trotec IC 200
The included Trotec IC 200 thermal imaging camera allows you to create precise thermal maps of moisture distribution. This data provides documentation for insurance adjusters and claim validation.
Training & Validation
Included with this system is a Dantherm Solutions Academy 2-Day Water Damage Restoration Course. You can earn 6–8 CPD points through this accredited training programme and further your knowledge on drying methodologies.
Why Choose This System for Your Restoration Business?
We recommend the AERCUBE solution to target vacuum or overpressure methods. It can effectively dry cavities, often eliminating the need for them to be demolished. This system's advanced HEPA filtration can also reduce the risk of secondary damage such as mould growth.
Expertise You Can Rely On
Our technical team understands the science of moisture and provides the necessary support. We provide rapid UK wide delivery and Price Match Promise on all of our equipment.
Also See More Like This:
| AERCUBE VT 2 Water Separator | |
|---|---|
| Pump Type | Robust Sewage Pump |
| Conveyor Volume | 7 m³/h |
| Max Conveyor Height | 5 m |
| Tank Volume | 20 Litres |
| Operating Temperature Range | 3 – 38°C |
| Power Consumption | 260 W |
| Power Supply | 230 V / 1ph / 50 Hz |
| Protection Class | IP44 |
| Dimensions (H x W x D) | 507 x 390 x 490 mm |
| Weight | 18 kg |
| AERCUBE VP 6 Turbine (Noise Box) | |
| Blower Type | Brushless High-Performance Turbine Blower |
| Air Flow (Free Blowing) | 1: 80 m³/h | 2: 140 m³/h | 3: 190 m³/h | 4: 250 m³/h |
| Excess Pressure | 270 mbar |
| Low Pressure | 220 mbar |
| Max Motor Power | 1,280 W |
| Operating Temperature Range | 0 – 38°C |
| Power Supply | 230 V / 1ph / 50 Hz |
| Sound Level @ 3m | 57 dB(A) |
| Protection Class | IP44 |
| Dimensions (H x W x D) | 507 x 390 x 455 mm |
| Weight | 15 kg |
| AERCUBE HF 2 HEPA Filtration Module | |
| Filter Configuration | Prefilter G4 + HEPA H13 (EN1822, MPPS > 99.95%) |
| Max Air Flow | 270 m³/h |
| Control / Operation | LED Indicator for Filter Change & Battery Check |
| Dimensions (H x W x D) | 260 x 390 x 490 mm |
| Weight | 6 kg |
| AERCUBE SD 2 Sound Silencer | |
| Max Air Flow | 220 m³/h |
| Excess Pressure | 270 mbar |
| Dimensions (H x W x D) | 300 x 390 x 490 mm |
| Aerial ASE 300 Adsorption Dehumidifier | |
| Capacity (20°C / 60% RH) | 25.7 Litres per 24 Hours |
| Air Volume (Dry / Regeneration) | 300 / 110 m³/h |
| External Pressure (Dry / Regeneration) | 150 / 50 Pa |
| Operating Temperature Range | -10 – +35°C |
| Operating Humidity Range | 10 – 95% |
| Nominal Power Consumption | 1,040 W |
| Power Supply | 230 V / 1ph / 50 Hz |
| Sound Level | 57 dB(A) |
| Air Inlet | 125 Ø mm |
| Dry Air Outlet | 1 x 100 Ø mm or 2 x 50 Ø mm |
| Regeneration Air Outlet | 80 Ø mm |
| Dimensions (H x W x D) | 370 x 335 x 430 mm |
| Weight | 18 kg |
| Trotec IC 200 Thermal Imaging Camera | |
| Measuring Range | -20°C to 550°C |
| Thermal Sensitivity | < 0.1°C |
| Image Refresh Rate | 25 Hz |
| Display | 3.5" LCD Touchscreen |
| Protection Rating | IP54 |
| Operating Time | Up to 4 Hours |
| Dimensions (L x W x H) | 96 x 77 x 224 mm |
| Weight | 0.5 kg |
- 1 x Aerial AERCUBE Series
- 1 x Aerial AERCUBE System – VT 2 Water Separator
- 1 x Aerial AERCUBE System – HF 2 HEPA Filter
- 1 x Aerial AERCUBE System – VP 6 Turbine
- 1 x Aerial AERCUBE System – SD 2 Sound Silencer
- 1 x Manifold System
- 1 x 12 m Length of 50 mm Connection Hose
- 1 x Pair of Lashing Straps for AERCUBE
- 1 x Aerial ASE 300 Adsorption Dehumidifier
- 1 x 12 m Length of 80 mm Ducting for Desiccant Exhaust
- 4 x Trotec Border Joint Nozzles
- 1 x Trotec IC 200 Thermal Imaging Camera
- 1 x Dantherm Solutions Academy 2-Day Water Damage Restoration Course
