Vaillant Boiler Protection Kit 22mm

22mm Connection
Magnetic Filtration
5-Micron Filtration
Hassle-Free Maintenance
20-Year Filter Guarantee

Price for: 105395

£186.52 (ex VAT)£223.82 (inc VAT)

Price Match

Vaillant Boiler Protection Kit – 22mm

The Vaillant Boiler Protection Kit – 22mm is a vital protection system for your boiler. The kit has been put together by Vaillant's engineering team in the UK, and is designed to fit boilers with central heating outputs between 14-27kW. Featuring one of the worlds most powerful magnetic filters to remove ferrous sludge (magnetite) and non-ferrous debris, protecting the pump and heat exchanger amongst other vital components from damage which could otherwise be quite costly.

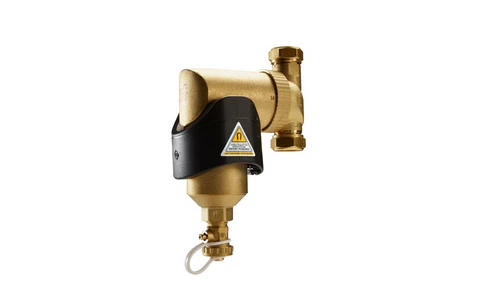

The protection kit comes with a robust brass case, high-quality magnet (12,000-gauss neodymium) and includes a water quality testing kit for immediate protection on your boiler. It also gives compatible systems the option to extend their warranty to a 10-year manufacturer's guarantee.

Features and Benefits: Vaillant Boiler Protection Kit – 22mm

Advanced Magnetic Filtration: A powerful 12,000-gauss neodymium magnet is used to attract fine micro-particles of ferrous sludge (magnetite) all the way down to a microscopic 5 microns (0.005mm).
Non-Ferrous Debris Filter: Comes complete with a fitted 800-micron filter to trap non-magnetic detritus such as copper filings and other small fragments.
10-Year Extended Boiler Guarantee: All eligible Vaillant boilers (e.g. the ecoTEC plus and ecoTEC ranges) that are installed and registered qualify for an extended manufacturer's guarantee of up to 10 years.
20-Year Filter Warranty: Built to stand the test of time, the solid brass filter comes with a 20-year manufacturer guarantee.
Water Quality Test Kit: The kit includes professional quality testing strips that check pH and inhibitor levels during commissioning to remain in compliance with the relevant BS 7593:2019 requirements.
360° Rotatable Connections: For 22mm return pipework, the flexibility of which allows both vertical and horizontal fitting, even in a small space like a cupboard or utility closet.
Tidy Servicing: The removable magnet sleeve on top and the fitted drain valve give you quick emptying for its yearly service, saving you the hassle of taking the thing apart.
Low Pressure-Drop Design: A consistent open flow of water in the heating circuit to safeguard the boiler pump and without the need for an external bypass valve.
Compatibility: Tuned for domestic central heating systems operating with boiler outputs between 14kW and 27kW (rated for operating temperatures up to 90°C and pressures up to 3 bar).

Our Pro Installer Tip

The unit can then be installed horizontally, vertically, or even at an angle if the space is particularly tight due to the 360° swivel brass connections. Maintenance is easy to sort out on a yearly basis by simply closing both valves, removing the outer magnetic collar (to disperse any collected magnetite), and opening the fitted drain valve, so that the sludge flows directly into a bucket without dismantling the filter itself.
