Variable Wall Duct for REMKO MKT 300-360/SKM 260 (Eco) Room Air Conditioners
Wall feed-through for exhaust air hose

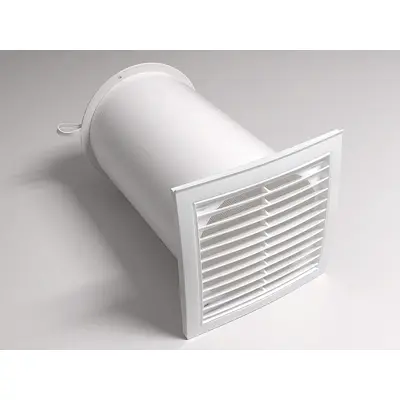

This is a variable wall duct suitable for REMKO MKT 300-360/SKM 260 (Eco) room air conditioners. This wall lead-through is for the exhaust air hose attached to the unit.
The wall duct includes a protective grille against insects and debris.
Installation Instructions
A core hole with a diameter of 162 mm in the outer wall is required to install the wall duct. The maximum wall thickness may be 480mm.
Insert the telescopic tube into the created wall opening so that the outer tube (large diameter) is on the inside of the wall.
If necessary, wall the telescopic tube to ensure a flush wall finish on both sides of the wall. To avoid cold bridges, insulate the telescopic tube with suitable insulation materials.
Fix the protective grille with 4 screws. The slats must be rain-repellent facing downwards.
Attach the hose conneciton piece with sealing lid with 4 more screws or you can foam it.
TIP: When deactivating or removing the device, it is recommended to close the opening in the check flap with the sealing lid to prevent air circulation.
