Powrmatic Vision 3.6 DW Maxi Air Conditioner & Heat Pump 3.6kW

Powrmatic Vision 3.6 DW Maxi Heat Pump Air Conditioner

3.6kW POWERFUL PACKAGED AIR CONDITIONER IN STANDARD SIZE

The Powrmatic Vision 3.6 DW Maxi Heat Pump Air Conditioner is a packaged terminal air conditioner with twin ducts that packs exceptional cooling and heating capacities in a compact and sleek design similar to the standard models. Not only does the Maxi feature a 3.6 kW cooling output, but it also comes equipped with a 3.5kW heat pump to provide complete climate control all year round. With the dual power feature, which offers excellent energy efficiency, you can choose between the lowest and highest capacities for heating and cooling. This modern yet high-performance unit suits any style space and is ideal for use in hotels, spas, shops, bars, restaurants, modular buildings, contemporary residences, and much more.

Versatile Operation Available

The Maxi has high A-rated energy efficiency thanks to the dual power function and DC inverter technology. They ensure the most effective heating and cooling efficiency and a silent operating noise level of 29-43dB with minimal energy consumption. The Powrmatic air conditioner extracts 28.8 litres of water daily, which is essential for maintaining a welcoming environment in a room. Because of its unnoticeable operation, the Vision Maxi is ideal for use in larger spaces where quietness is a priority.

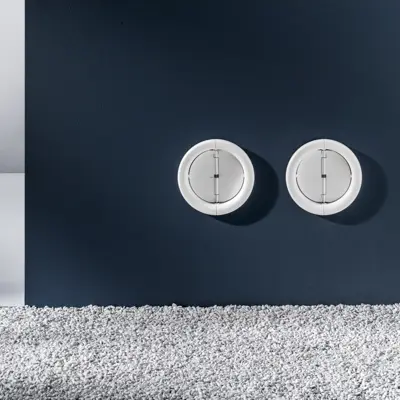

The fabulous unit can be mounted at a high, mid or low level on the wall of any space, including bedrooms and short-term buildings. They have a seamless, neat shell on top of a full metal body that makes them sturdy and reliable, along with the fact that there are no plastic parts and only a few moving parts in their construction. Since they don't need an outdoor condenser, only two holes are needed for the ducts. The unit has discreet grilles on the outside that can hide a 200mm twin duct and an 18mm condensate pipe. They make sure that the supply and discharge air can get in and out properly. The Maxi is ideal for commercial applications as well because of its high performance, harmonious design and durability.

Climate Control In Different Ways

The Vision Maxi offers four unique control options so that you can choose how you want to use the unit. Apart from the traditional remote control, there is an integrated touchscreen on the body panel, a hard-wired remote touchscreen, and a mobile app for Apple and Android that can control multiple units at once. These are easy to read, and all of their features can be changed quickly and easily.

With the WiFi-enabled app, it's easy to change the temperature, fan speed, and airflow direction from anywhere. The app lets you keep track of all the current settings and change them for each unit from a single location via the local WiFi connection. This is good for bigger homes, offices and hotels. Hotels can save money on energy by using the app to switch on or off the device in each room based on the occupancy level. The unit's onboard control lets you set all of its functions, including a "lock" position to keep it from being used incorrectly and weekly scheduling. An individual hard-wired controller mounted close to the device is yet another option for those who prefer to use a physical controller. The Vision Maxi is suitable for hotel rooms, restaurants and other hospitality applications thanks to its outstanding cooling and heating performance and easy-to-use ability.

Easy and Quick Installation

As there is no large external unit that needs to be connected to the building from the exterior, the self-contained Packed Terminal Air Conditioner (PTAC) can be completely installed through the wall in just a few hours. Since the Maxi is condenser-less, any skilled tradesperson can perform the installation. There is no downtime during installation because each unit can be set up quickly and effectively in just four steps. This feature is especially useful for hotels, offices and retail outlets because it avoids disruptions to routine business activities, which lowers the risk of revenue loss. This is a cost-effective benefit that reduces the impact on your business while allowing you to minimise installation and maintenance costs.

Energy Efficiency and Lower Bills

An air-to-air heat pump can deliver 3 to 4 times more energy than it consumes in electricity.

That means noticeable savings on your energy bills compared to traditional heating systems.

Environmentally Friendly

An air-to-air heat pump isn’t just a piece of heating equipment. It’s an investment in all year-round comfort, lower costs and a greener planet.

It’s a technology that makes sense now and for the future.

Available Options

The Maxi comes with a remote control and is compatible with an excellent range of accessories. There is an optional Vision wired controller that can be mounted near the unit. A bottom panel is also available. The panel is an aesthetic closure plate for mid- and high-level installations. A condensate nebuliser can be supplied to replace the standard external condensate pipe. The nebuliser heats the condensate output air so that it becomes vapour, and can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings.

Cooling Capacity kW: 2.87
Cooling Capacity - Dual Power Max / Min kW: 3.5 / 1.05
Heating Capacity kW: 2.75
Heating Capacity - Dual Power Max / Min kW: 3.5 / 0.83
Power Input In Cooling W: 1040
Power Input In Heating W: 880
Dehumidification Capacity l/h: 1.2
Power Supply Voltage V/F/Hz 230/1/50
EER W/W: 2.74
COP W/W: 3.12
Energy Efficiency Ratio When Cooling: A
Energy Efficiency Ratio When Heating: A
Dimensions (W x H x D) mm: 1010 x 549 x 165
Max Noise Level On High @1m Distance dB(A): 56
Wall Hole Diameter / Condensate Drain mm: 202 / 18
Distance Between Holes In Wall mm: 293
Refrigerant Gas: R32

3.6kW Cooling Capacity: The Powrmatic Vision 3.6 DW Maxi Air Conditioner offers excellent cooling power cooling larger spaces in the home and commercial spaces such as offices, restaurants, bars, hotel rooms and more.

3.5kW Heating Power: The built-in heat pump provides continuous warmth during colder months or transitional seasons, alongside the incredible cooling effect.

Incredible Power Packed In Slim Design: The Maxi comprises stunning cooling and heating in its compact profile. Boasting rounded corners and a smooth, polished white PPC finish, the unit fits perfectly with all room's decor and design.

4 Different Controls: There are four different ways to control the Vision Maxi, depending on what you need. Apart from the remote control, there is an integrated touchscreen on the body panel, a hard-wired remote touchscreen and a smartphone app for controlling multiple units at once.

A-Rated Energy Efficiency: The Powrmatic Vision comes equipped with a DC inverter technology that ensures minimal energy use and a low sound level, and a dual power feature that regulates the ability to both heat and cool a room effectively.

No External Condenser: The Vision Maxi has an integrated condenser, two external grilles, and inlet and outlet vents for the supply and discharge of air with little disruption to the outside environment.

Greener Climate Control: The Maxi employs the eco-friendly refrigerant R32, which has a lower global warming potential compared to traditional refrigerants.

Packed Terminal Air Conditioner (PTAC): The Maxi is a twin duct low-level PTAC all-in-one air conditioning unit that reduces the price of installation by negating the need for an exterior unit.

Simple & Fast Installation: Any competent tradesperson can install these units because there is no external condenser and no F-Gas certificate required. The air conditioner requires only the installation of two small vents in the wall to enable exhaust air and condensate to escape outside. Everything needed for installation is included with the unit, which is ready to be installed.

Optional Condensate Nebuliser Available: Heats the condensate output air, so that it becomes vapour and can then be expelled by the integrated fan. This is useful if you want to avoid condensate water running down external walls or alongside buildings.
