36,000 BTU cooling & heating
Energy‑efficient inverter system
Built‑in Wi‑Fi control
Cooling, heating & dehumidifying
Quiet, sleek wall design
Remote & smart App Control
Price Match
Rapid Delivery
In-Stock
5 Year Warranty
Luxurious Heating & Cooling Power: With 7.1kW of heating and cooling power, this is the most powerful model in the LUX series, built to manage large open‑plan rooms, high ceilings and premium commercial spaces with ease.
Advanced UV‑C & 3‑in‑1 Filtration: The system cleans the air as it conditions it, using a UV‑C lamp and a multi‑stage 3‑in‑1 filter (Vitamin C, Silver Ion and Anti‑Virus) to reduce bacteria, allergens, odours and fine particles.
4D Swing Airflow for Complete Coverage: Oscillating vanes push conditioned air both horizontally and vertically, creating a balanced flow that reaches every corner. Adjustable fan speeds allow you to choose between a rapid blast of cooling or a gentle background flow.
Smart Control with Built‑In Wi‑Fi: Control the entire system from your phone via the Smart Life app, set timers and schedules, or operate it hands‑free with Alexa and Google voice control. A clear digital display and responsive remote are also included.
Quiet, Stable Performance:
The inverter‑driven heat pump adjusts constantly to maintain smooth, quiet operation without harsh stop‑start cycling. This efficiency means consistent comfort with less noise and lower running costs.

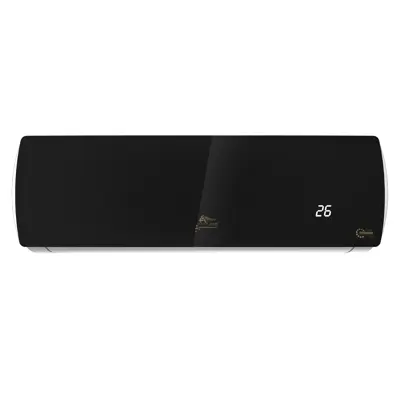

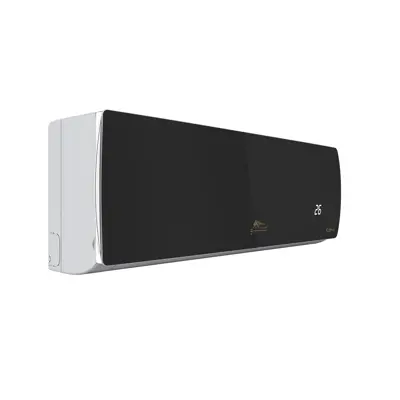

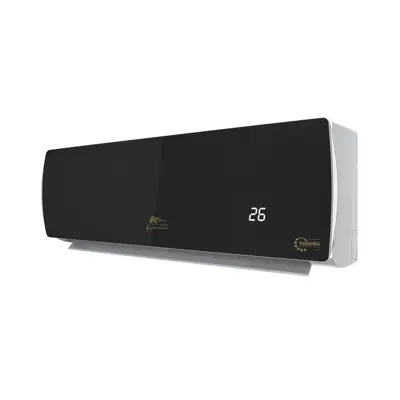

Premium Design with Energy Efficiency: Finished in a black mirror gloss for a modern, high‑end look, the KFR‑66YW/LUX blends style with function. Rated A++ for cooling and A+++ for heating, it uses eco‑friendly R32 refrigerant and includes anti‑mould coatings for long‑lasting hygiene.

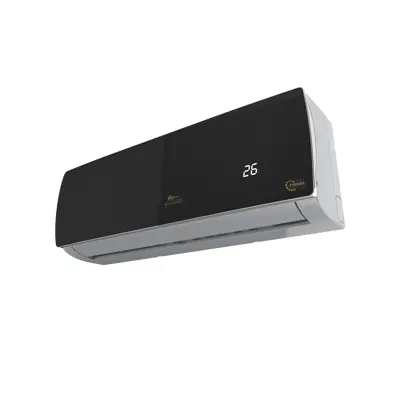

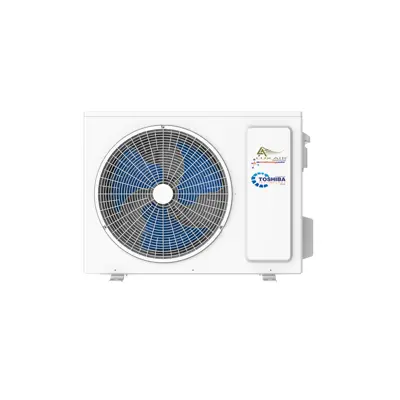

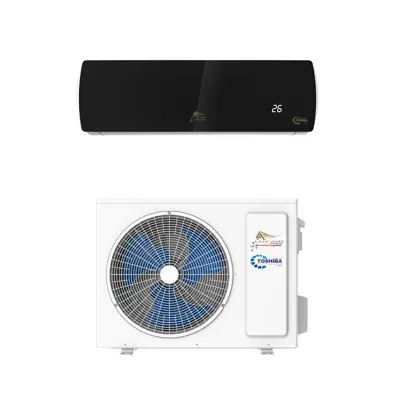

Built for large open‑plan homes, design‑led apartments and premium commercial spaces, this system is made to take control where others fall short. It pairs a striking black mirror‑finish indoor unit with a high‑performance outdoor condenser, delivering 7.1kW of heating and cooling power. From its refined design to the way it transforms the air you breathe, this model is all about high-end climate control, comfort and presence on a grand scale.
This KFR-66Y/LUX is not just about temperature. Inside the indoor unit, a UV‑C sterilising lamp and advanced 3‑in‑1 filter (Vitamin C, Silver Ion and Anti‑Virus) work continuously to improve the air as it circulates. Together they tackle odours, bacteria and fine particles while anti‑mould coatings keep the system performing at full capacity. Every breath feels cleaner and every space feels fresher, no matter the season.
In a room of this size, even airflow matters. 4D swing technology moves conditioned air both vertically and horizontally, filling every corner evenly with perfectly balanced treated air. Oscillating vanes ensure no corner is missed, and cold or hot spots are eliminated, while adjustable fan speeds let you decide between a gentle background breeze or a rapid, high‑output burst. The digital display keeps settings clear and precise, so control is always at your fingertips.
The KFR‑66YW/LUX uses a next‑generation heat pump with an inverter compressor that adapts constantly to ambient conditions. The result is smooth, quiet heating and cooling without stop‑start jolts. Just a stable, efficient climate you can rely on. Built‑in Wi‑Fi connects to the Smart Life app so you can take full control from your phone or tablet, wherever you are. You can set timers, create routines, or simply ask Alexa or Google Assistant to do it for you. Even with its size and capability, the system runs with low noise and low impact, thanks to eco‑friendly R32 refrigerant and an A++/A+++ energy rating.
See More Like This: Cooling Equipment, Heat Pump Air Conditioners, Home Air Conditioning & Wall Mounted Air Conditioning Units
| Model No | KFR-63IW/LUX |
| Barcode indoor | 225121063241 |
| Bacode outdoor | 225121063242 |
| Refrigerant Type | R32 |
| WIFI APP – Alexa and Google Speech Controllable | Yes |
| Energy Efficiency Rating Cooling | A++ |
| Energy Efficiency Rating Heating | A+++ |
| Power Rating (Ph-V-Hz) | 1/220-240V/50Hz |
| Capacity BTU/h (Cooling) Kw (Max Kw) | 24000 / 7.1 (7.8) |
| Capacity BTU/h (Heating) Kw (Max Kw) | 24000 / 7.1 (8.2) |
| Power Input (W) Cooling~Heating (Max Kw) | 2300~2200 (3.3) |
| Current Input (A) Cooling~Heating | 10.6~10.1 |
| EER/SEER (BTU/hr.W) | SEER 6.1 |
| COP/SCOP (W/W) | SCOP 4.0 |
| Dehumidification L/h | 2.2 |
| Indoor Noise Level SPL dB (A) (Max) | 37~46 |
| Outdoor Noise Level SPL dB (A) (Max) | 59 |
| Indoor Airflow (m3/h) | 800/900/1050/1200 |
| Max. Current Rating (A) Fuse Rating (Type D) | 13 |
| Net Dimension (mm) Indoor (WxDxH) | 1025x235x320 |
| Unit Dimension (mm) Outdoor (WxDxH) | 820x310x635 |
| Net Weight Indoor (Kg) | 14 |
| Net Weight Outdoor (Kg) | 36.7 |
| Max Room Size (m2) | 34-60 |
| Max Conservatory Size (m2) | 30 |
| Connecting Pipe Length (m) | 6 |
| Pipe Diameter Liquid/Gas (Inch) | 3/8″ & 5/8″ |
| Selectable Temp Range °C | 16-32 |
| Min/Max Operating Temp (Cooling/Heating) °C | -15 ~52 |
| Automatic Restart after Power Failure | Yes |
| Automatic Refrigerant Leak Detection & Self Diagnosis Systems | Yes |
| Indoor Model size (mm) | 1025x235x320 |
| Indoor Packaging Size (mm) | 1105x405x315 |
| Indoor Gross Weight (kg) | 16 |
| Indoor Nett Weight (kg) | 14 |
| Outdoor Model size (mm) | 820x310x635 |
| Outdoor Gross Size (mm) | 972x400x680 |
| Outdoor Gross Weight (kg) | 40.2 |
| Outdoor Nett Weight | 36.7 |
