Kaysun Onnix Single Room Split Air Conditioning System 3.5kW

The Kaysun Onnix 3.5kW Single Room Split Air Conditioning System

Effective & Efficient Year-Round Climate Control Solution

The Kaysun Onnix Split Air Conditioning System is a luxurious unit that will heat and cool in style to deliver year-round climate control in a single room. With A+++ cooling efficiency, this hybrid appliance will keep you feeling fresh and clean during the hottest months, while the heating capacity promises to warm you up when temperatures drop. With an ultra-modern aesthetic appeal, this smart appliance is designed to add a touch of opulence to any room.

The Kaysun Onnix boasts numerous benefits. Night mode limits indoor noise levels, which is initially as low as 21.5 dB(A). This will also automatically dim the LED temperature display brightness to enhance relaxation. Pair this with silent mode – which minimises fan settings – to achieve soundless operation both indoors and outdoors.

Equipped with a quality, exceptionally energy efficient R-32 refrigerant which conveniently includes condensation control. The outdoor condenser can refrigerate even in cold climates. So, you can experience immersive cooling whatever the weather.

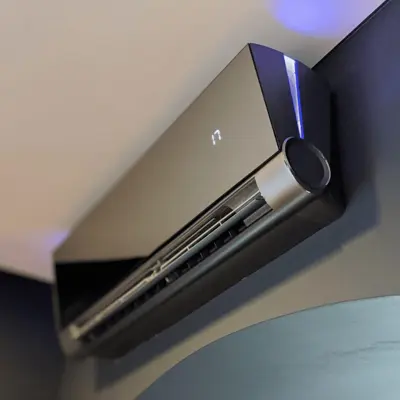

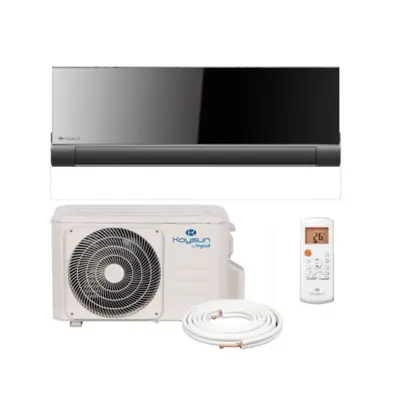

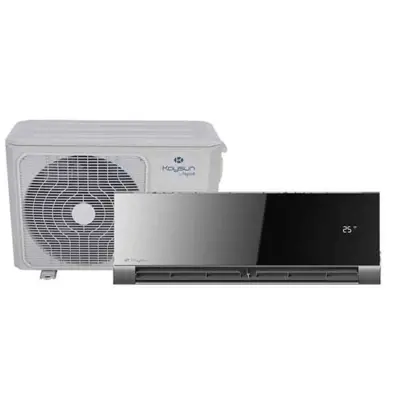

The Kaysun Onnix is built for simple installation. The condenser unit is fitted outside, while the interior unit is wall-mounted in the target room, which can sit very high up the wall – up to 5cm below the ceiling. Optional outdoor unit brackets can be added to your order for added convenience.

Featuring turbo mode which is designed to rapidly achieve set temperature and ECO mode to reduce consumption by automatically regulating the temperature. The unit will automatically adjust the angle of the louvres to the position they were last in, to resume rapid cooling effects. Follow Me feature is available which personalises patterns to maintain maximum comfort and efficiency.

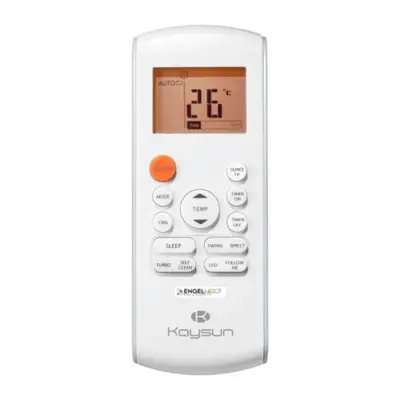

User control is made effortless by the easy-to-use remote control included. However, by adding the Wi-Fi dongle to your order, you can access the device remotely via an app. Voice control is also available via Alexa or Google Home.

Climate control is easy, effortless and effective with the Kaysun Onnix.

This product is supplied with a 3 Year Warranty, so you can rely on comfortable climate control for many seasons.

Model: KAY-D 35 DR10/ KAE-S 35 DR9

Cooling Capacity: 3.52kW

Cooling Power Input: 900W

Heating Capacity: 3.81kW

Heating Power Input: 950W

Energy Efficient Cold/Heat: A+++/A++

Airflow (indoor): 700/515/425 m3/h

Sound Pressure (indoor): 21.5 dB(A)

Airflow (outdoor): 2200 m3/h

Sound Pressure (outdoor): 53.5 dB(A)

Power Supply: 220-240V / 1 / 50

Power Wiring (outdoor): (3+T) x 1.50mm

Communication Wiring: (4+T) x 1.50mm

Refrigerant Pipes: 1/4” – 3/8”

Refrigerant Charge / Additional Charge: 0.7kg / 0.012kg

Max. Pipe Length: 25m

Max. Elevation: 10m

Indoor Dimensions (mm): 920 x 211 x 321 (W x H x D)

Indoor Weight: 11.3kg

Outdoor Dimensions: 765 x 555 x 303 (W x H x D)

Outdoor Weight: 26.4kg

3.5kW Cooling Capacity: With A+++ efficiency, this smart and stylish air care solution is perfect for residential and commercial room sizes up to 25 square meters, including apartments, offices, shops, cafes and more.

3.81kW Heating Effect: With cooling and heating capacities, this hybrid device offers complete climate control for year-round comfort.

R32 Refrigerant: The Kaysun Onnix is equipped with an eco-friendly quality R32 refrigerant for effective and efficient operation.

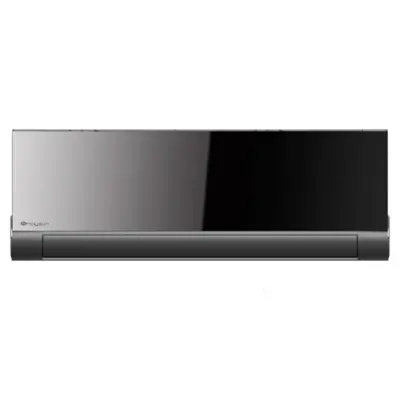

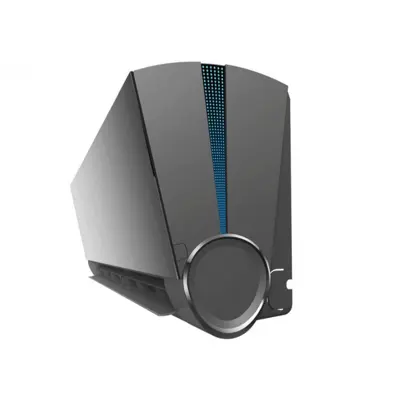

Sleek & Stylish Design: With cutting-edge construction and an ultra-modern black mirror finish, this smart appliance is designed to add a touch of opulence to any room.

Silent Operation: Innovative technology achieved a reduction in noise levels to just 21.5dB(A). Pair with night mode and silent mode to enable an even quieter operation.

Multiple Operating Modes: Including turbo mode to rapidly achieve set temperature, ECO mode which reduces overall energy consumption and Follow Me feature which personalises operation patterns to maintain maximum comfort and efficiency.
