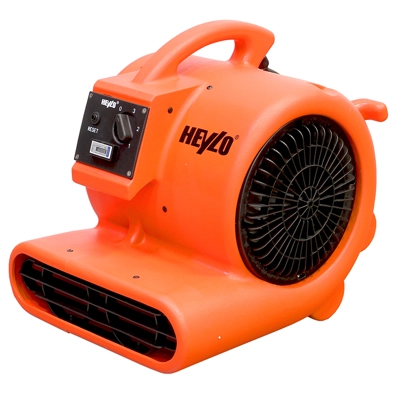

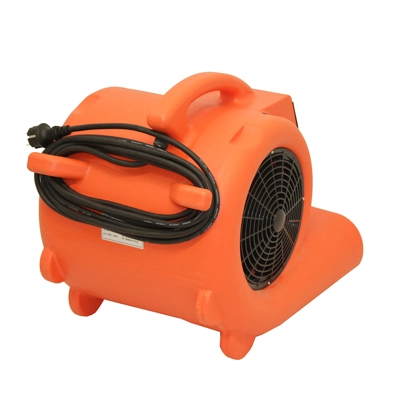

HEYLO TD2400 Portable Radial Ventilator Fan 230v 1,860 m³/hr

HEYLO TD 2400 Radial Ventilator Fan

Fast & effective drying of floors, carpets, walls & tight spaces

The HEYLO TD 2400 is a compact, tough and versatile air mover, designed to provide faster drying of floors, carpets, walls and tight spaces following cleaning, construction and water damage.

The focused airflow that this fan provides helps to promote evaporation of moisture from surfaces, to speed up drying times on site.

This high quality portable radial fan can be set up in several operating positions, so it can be used to blow air over a floor or wall surface. It can be used with dehumidifiers, heaters and larger air mover fans to create a complete drying system.

The convenient and lightweight design of the HEYLO TD 2400 radial fan makes it very easy to transport and put in place on site. Multiple units can even be stacked on top of each other for simple storage

This unit has a tough plastic body which allows it to withstand challenging conditions on site. The integrated operating hours counter allows you to monitor time spent on the job.

This model comes with a ducting adaptor, which allows up to 3 separate lengths of ducting (102mm dia) to be fixed to the outlet on the fan. This allows for multiple areas to be dried at once, or for tight spaces, such as under floorboards, to be dried effectively.  We offer the ducting in lengths of 10m. You can add a pack of one, two or three lengths of 10m ducting to your order using the tick boxes above.

Article No.: 1110826
Air flow rate max.(cum/h): 1,860
Compression (Pa): 398
Useful air volume flow (NLV*) (m³/h): 1,170
Electric Connection (V/z): 230 / 50
Power consumption max.(kW): 0.68
Current consumption (A): 3.06
Length / Width / Height (mm): 480 / 430 / 480
Weight (kg): 14.5
Volume (dB(A)): 68
Protection Class (IP): 22
Hose (diam. in mm): 102 (x3)
* Useful air volume flow (NLV): Air volume flow in cum/h measured in work area. Work area: 250 Pa counter-pressure or hose length of approx. 38 metres.

Max Airflow of 1,860m³/h: Great airflow for a compact unit. The focused airflow helps to target specific areas on walls, floors and carpets to speed up drying times.

3 Fan Speeds: A simple dial control allows you to select the most suitable fan speed for the job.

Several Working Positions: Provides a great range of suitable applications, including the drying of walls, floors and carpets.

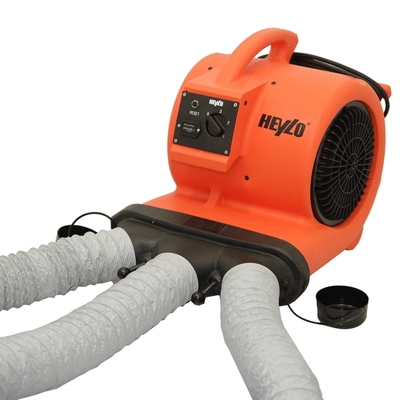

Ducting Adapter: Allows up to 3 separate lengths of ducting (102mm dia) to be fixed to the outlet on the fan. This allows for multiple areas to be dried at once or for tight spaces, such as under floorboards, to be dried effectively. Ducting available separately.

Operating Hours Counter: Allows you to monitor time spent on the job.

Tough Plastic Casing: Offers great protection in challenging areas, protecting the inner workings from bumps and knocks on site.

Portable Design: Compact size & a robust handle make this fan very mobile and easy to move between work sites.

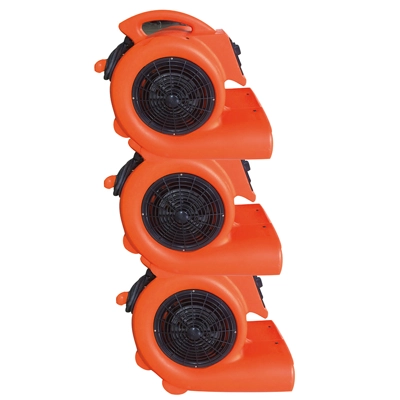

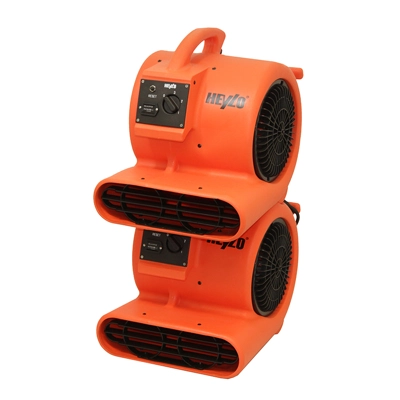

Stackable: Multiple units can be stacked on top of each other for simple transport and storage.
