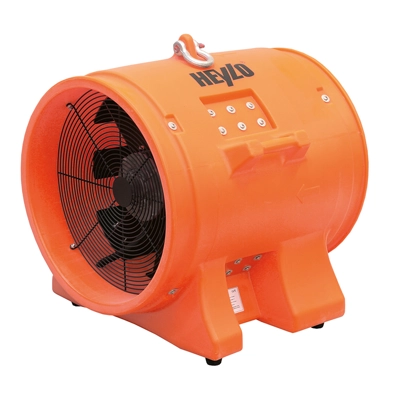

HEYLO PowerVent 12000 Portable Axial Ventilator Fan - 3 Phase 10,550 m³/hr

HEYLO PowerVent 12000 Axial Ventilator Fan

Compact, portable & powerful axial fan for ventilation & extraction

The HEYLO PowerVent 12000 is a tough and portable axial ventilator fan, designed to move large volumes of air on site to support ventilation, cooling, drying and extraction of harmful fumes and dust.

It is ideal for use on construction sites, industrial sites, in workshops, factories, underground engineering and more, to improve safety and aid in drying following work or water damage.

The PowerVent 12000 ventilation fan can be transported without any problems. It has a tough ABS plastic body which allows it to withstand challenging conditions on site and a powerful motor and efficient impeller which offer excellent airflow of up to 10,550 m³/h and up to 744 Pa pressure.

This portable fan can be used with lengths of ducting fixed to either end of the unit. This allows fresh air to be ducted into restricted spaces on sites, to aid with ventilation, cooling and drying; or to extract harmful fumes from the work area. The PowerVent 12000 can be used with up to 38m of ducting.

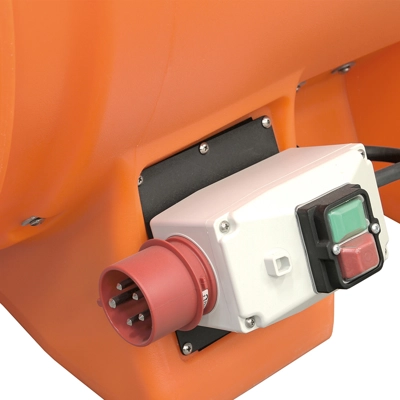

Please note that this model requires a 3 phase 13A 400v power supply.

Article No.: 1110831
Air flow rate max.(cum/h) of each stage: 10,550
Useful air volume flow (NLV*) (m³/h): 8,400
Compression (Pa): 744
Electric Connection (V/z): 400 / 50
Power consumption max.(kW): 3.7
Current consumption (A): 13
Length / Width / Height (mm): 655 / 640 / 720
Weight (kg): 54
Volume (dB(A)): 90
Protection class (IP): 44
Hose (diam. in mm): 550
Hose length max. (m): 30

* Useful air volume flow (NLV): Air volume flow in cum/h measured in work area. Work area: 250 Pa counter-pressure or hose length of approx. 38 metres.

Max Airflow of 10,550m³/h: Huge airflow and high pressure of up to 744 Pa allow this portable fan to push air over long distances.

High Quality Axial Fan: This hard-wearing and reliable fan is capable of blowing out or extracting air over long distances. It can withstand heavy use and is ideal for workshops, warehouses, construction and more.

Tough ABS Plastic Casing: Offers great protection in challenging areas, protecting the inner workings from bumps and knocks on site.

Supports Various Applications: With the efficient air inlet and an air outlet, the airflow that the fan creates can be used to improve ventilation, cooling and speed up drying times on site. It can also be used to extract harmful dust and fumes.

Portable Design: A robust handle and compact design make this fan extremely mobile and easy to move between work sites.

Optional Ducting: Both the air inlet and air outlet on the unit can be fitted with 550mm diameter ducting. This fan can be used with up to 38m of ducting.
